| Pimpex@RPM supplies Plastic Corrugated Pipes Production Lines and Plastic Winding Pipes Production Lines and PP/PE/PVC/PA Small Pipes Production Lines. The manufacturer locates at the said "hometown of hose industry" in China. It was established in 1991 and mainly produces: plastic corrugated pipe production lines, plastic winding pipe production lines, PP/PE/PVC pipe production lines, plastic extruders, auxiliary machines for plastic machinery, traction machines, winders, plastic pipe molds and other plastic machinery. At present, the factory's products have covered the whole country and exported to South Korea, Vietnam, India, Egypt, Afghanistan, Singapore, Jordan and other foreign markets and Taiwan, China. The factory has a group of excellent technical talents, has introduced a large number of advanced CNC production equipment, has been focusing on the improvement and research and development of plastic corrugated pipe production equipments for more than 20 years, and has domestic leading production technology, which has enabled the factory to develop rapidly. The plastic machineries produced by the factory are suitable for the production of various wiring harness corrugated pipes for automobile and motorcycle, wire and cable threading pipes, decorative corrugated pipes for lamps and lanterns, inlet and drainage pipes for washing machine, drainage pipes for air conditioning, medical pipes, vacuum cleaner pipes, etc. Over the years, the customers of this factory have provided high-quality products for many well-known enterprises such as Gree, Midea, Haier, Little Swan and so on. Excellent quality is the direction of the factory's efforts; good reputation is the pursuit of the factory. |
 10 High Speed Gear Drived Plastics Corrugated Pipes Production Line GS Series |
Gear-Drive High-Speed Corrugated Pipe Production Line Application Fields: |
| Main Techincal Parameters of Gear-Drive High-Speed Corrugated Pipe Production Line | ||||||
| Model | Motor Power kW |
Production Speed m/min |
Perimeter mm |
Diameter mm |
Extruder | Total Power kW |
| GS-20-3 | 2.2 | 10-20 | 1780 | Φ7-Φ14 | Φ45-Φ50 | 25 |
| GS-50-3 | 4 | 10-20 | 3051 | Φ10-Φ58 | Φ50-Φ65 | 30 |
| G5-50-4 | 4 | 10-25 | 3955 | Φ10-Φ58 | Φ65-Φ80 | 30-50 |
| Remarks: The above specifications are subject to change without notice. | ||||||
 11 Cable and Wire Sheath |

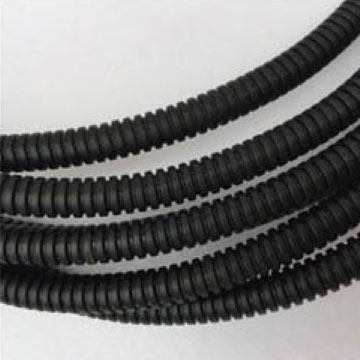

 12 Automotive Wiring Harness |

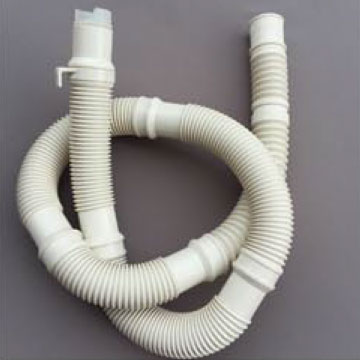

 13 Drain Pipe of Washing Machine |

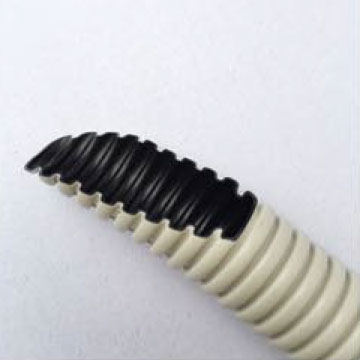

 14 Two Color Drain Pipe of Air Conditioner |

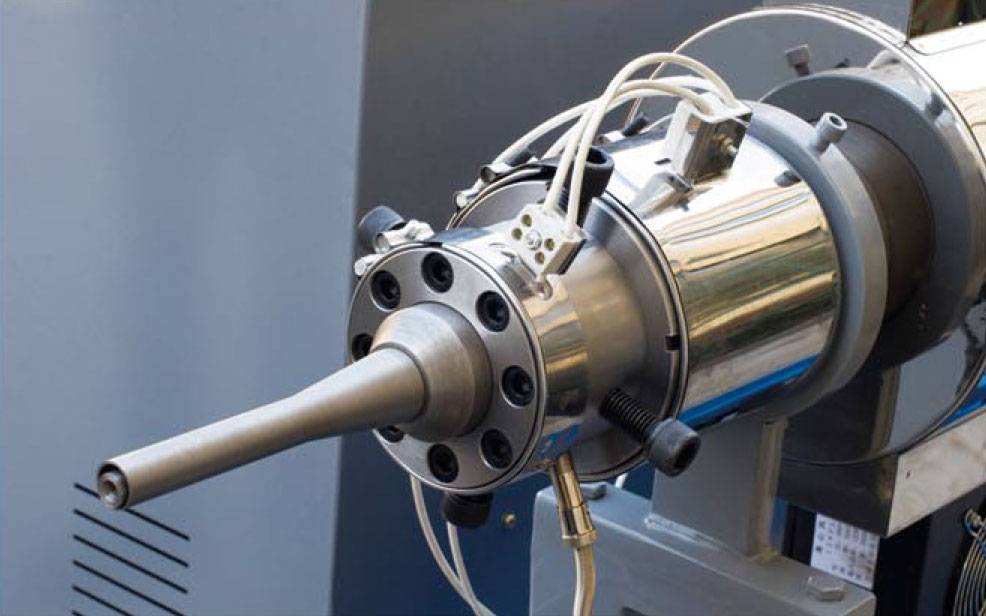

 15 Extrusion Head |
 16 Vacuum Machine Mould |

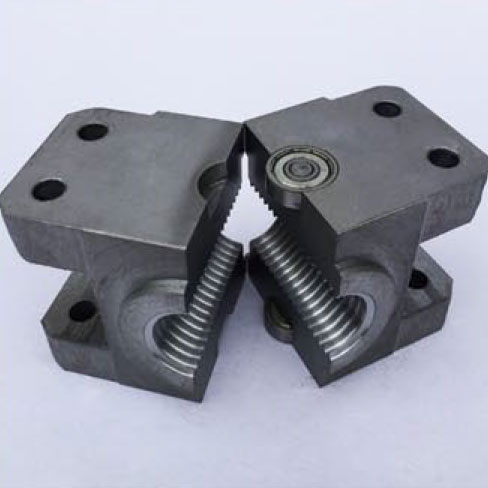

 17 Chain Machine Bearing Mould |
 18 Chain Machine Pin Mould |

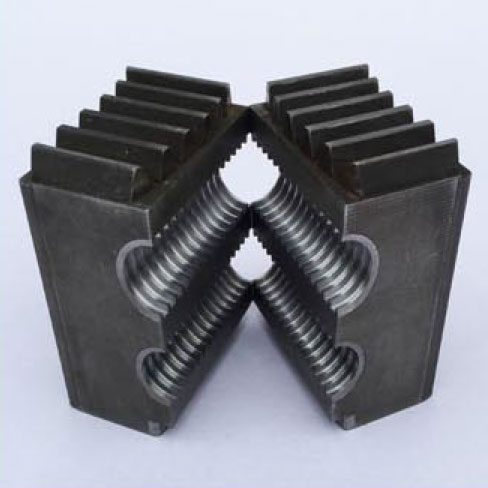

 19 Double Cavity Mould |

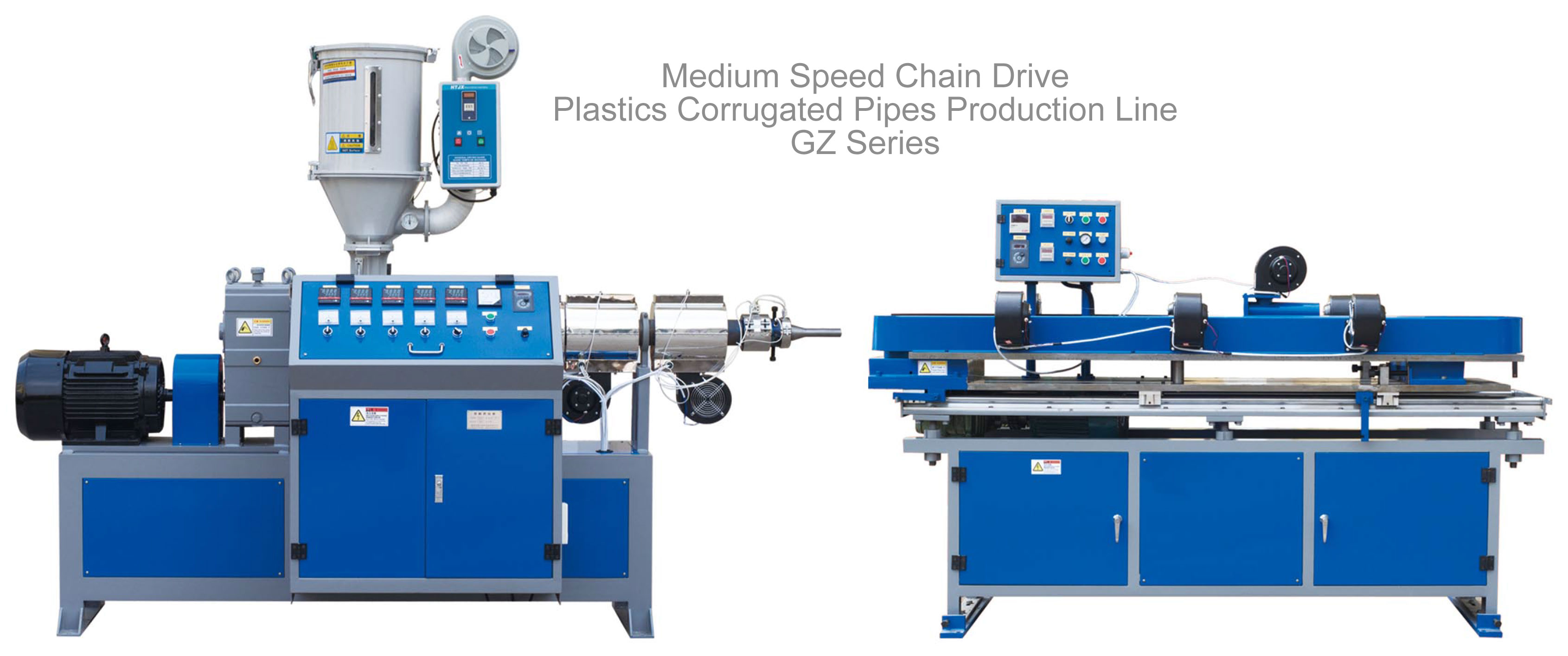

 20 Medium Speed Chain Drive Plastics Corrugated Pipes Production Line GZ Series |
Chain-Drive Medium Speed Corrugated Pipe Production Line Application Fields: |
| Main Techincal Parameters of Chain-Drive Medium Speed Corrugated Pipe Production Line | ||||||
| Model | Motor Power kW |
Production Speed m/min |
Perimeter mm |
Diameter mm |
Extruder | Total Power kW |
| GZ-20-2 | 1.5 | 8-12 | 2000 | Φ7-Φ20 | Φ45 | 15 |
| GZ-35-2 | 2.2 | 8-12 | 2000 | Φ10-Φ35 | Φ50 | 20 |
| GZ-35-3 | 2.2 | 8-12 | 3000 | Φ10-Φ35 | Φ50-Φ65 | 30 |
| GZ-35-4 | 4 | 12 | 4000 | Φ10-Φ35 | Φ65 | 30 |
| GZ-55-3 | 4 | 6-l0 | 3000 | Φ13-Φ55 | Φ65 | 35 |
| GZ-55-4 | 5.5 | 6-10 | 4000 | Φ13-Φ55 | Φ65 | 35 |
| GZ-80-3 | 5.5 | 4-8 | 3000 | Φ20-Φ80 | Φ80 | 50 |
| Remarks: The above specifications are subject to change without notice. | ||||||

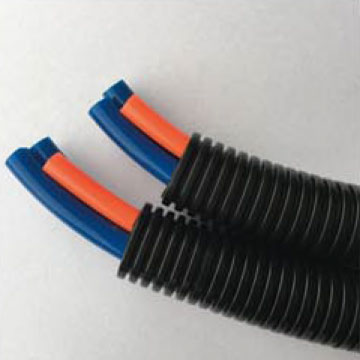

 21 Cable and Wire Sheath |
 22 Water Inlet Pipe of Washing Machine |

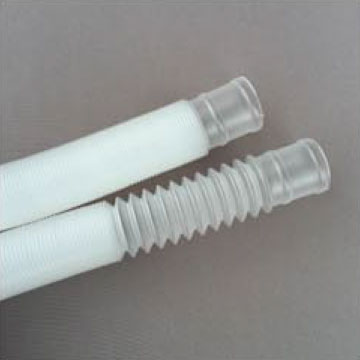

 23 Medical Respiratory Breathing Circuit Tube |

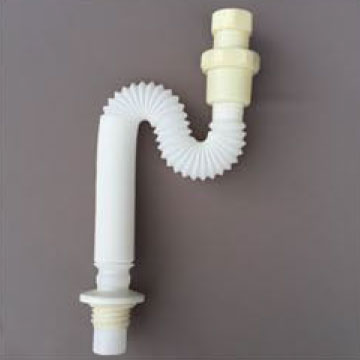

 24 Telescopic Sewer Downpipe |
 25 Extrusion Head |

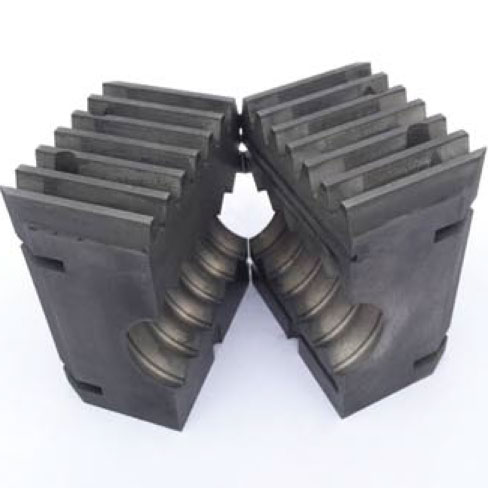

 26 Vacuum Machine Mould |
 27 Chain Machine Bearing Mould |
 28 Chain Machine Pin Mould |
 29 Double Cavity Mould |

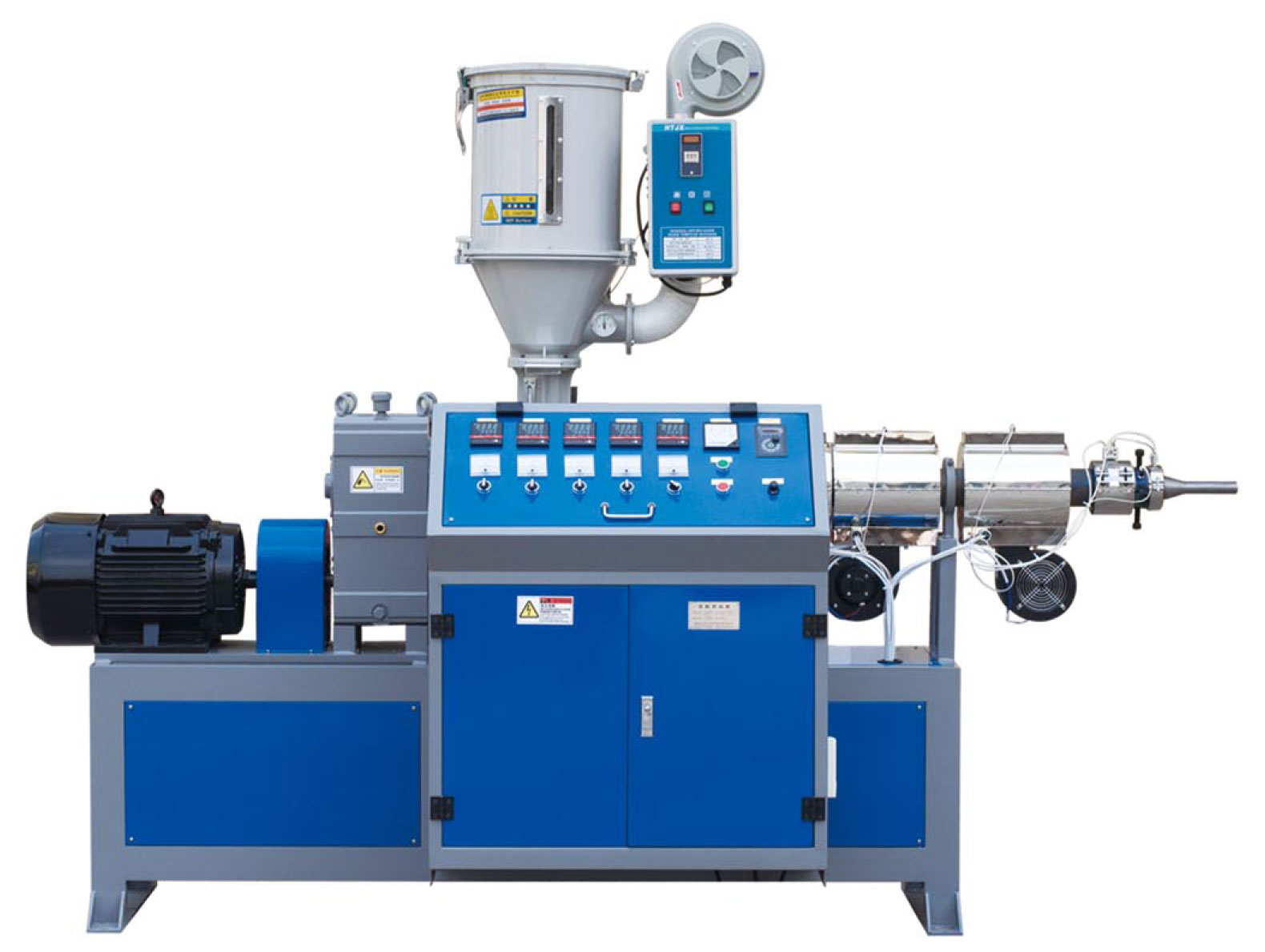

 30 Single Screw Plastics Extruder GJ Series |
Single Screw Extruder GJ series single screw extruder adopts frequency conversion speed regulation, which can effectively reduce the power consumption during the transmission process through the direct connection between the motor and the reduction box. The screw adopts a separate type plus mixing head method to strengthen the shearing effect of the material and improve the plasticizing effect. The machine has strong stability and low power consumption. |
| Main Techincal Parameters of Single Screw Extruder | |||||
| Model | Screw Diameter mm |
Production Speed m/min |
Transmission Power kW |
Center Height mm |
Yield kgs/h |
| GJ-30 | 30 | 28:1 | 4 | 1000 | 15-20 |
| GJ-45 | Φ45 | 28:1 | 7.5 | 1000 | 20-35 |
| GJ-50 | Φ50 | 28:1 | 11 | 1000 | 30-45 |
| GJ-65 | Φ65 | 28:1 | 15-22 | 1000 | 40-60 |
| GJ-80 | Φ80 | 28:1 | 30-37 | 1000 | 50-80 |
| GJ-90 | Φ90 | 28:1 | 37-55 | 1000 | 70-150 |
| Remarks: The above specifications are subject to change without notice. | |||||

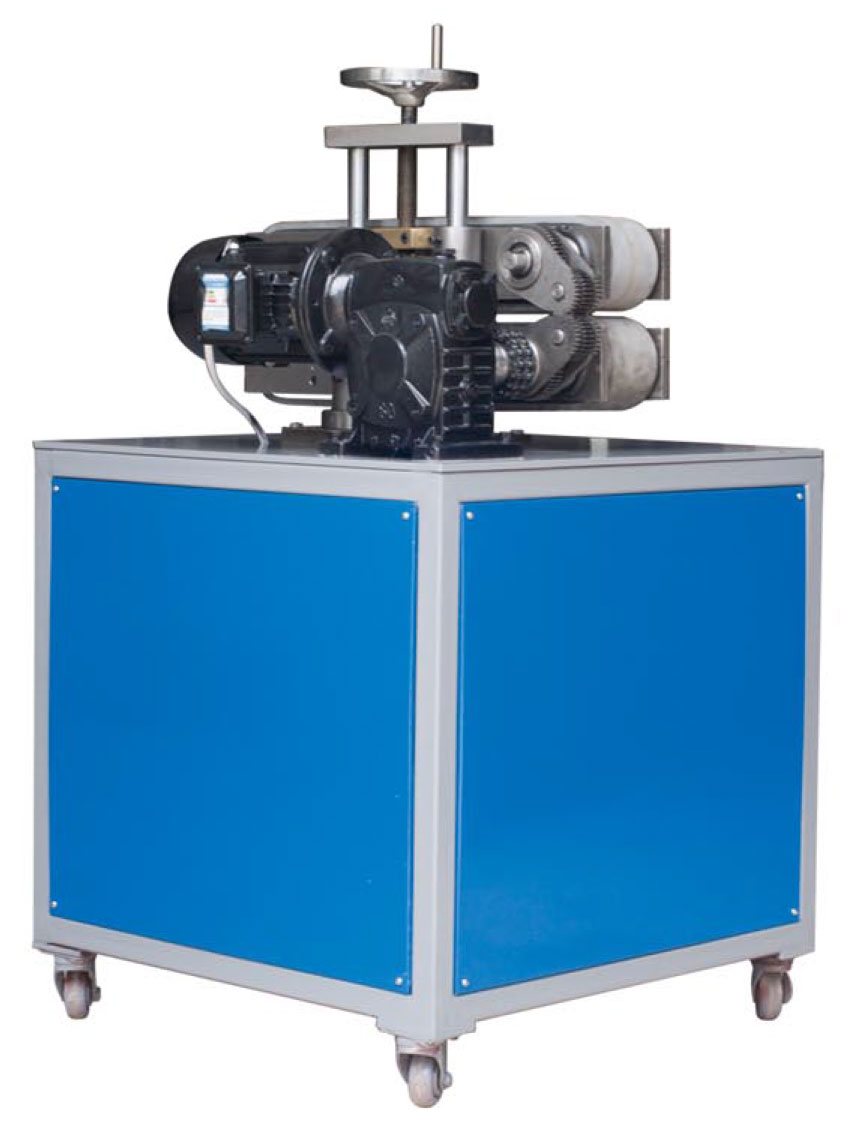

 40 Crawler Tractor Drager QY Series |
Crawler Tractor The equipment adopts frequency conversion and stepless speed regulation, and uses gears to drive the upper and lower crawler tracks to synchronously pull. By adjusting the upper crawler, various sizes of plastic pipes and profiles can be pulled. Wide range of application and easy to use. |
| Main Techincal Parameters of Crawler Tractor | ||||
| Model | Traction Power, kW | Track Perimeter, mm | Traction Speed, m/min | Traction Pipe Diameter, mm |
| QY-8D | 1.5 | 1500 | 1-20 | Φ5-Φ80 |
| Remarks: The above specifications are subject to change without notice. | ||||

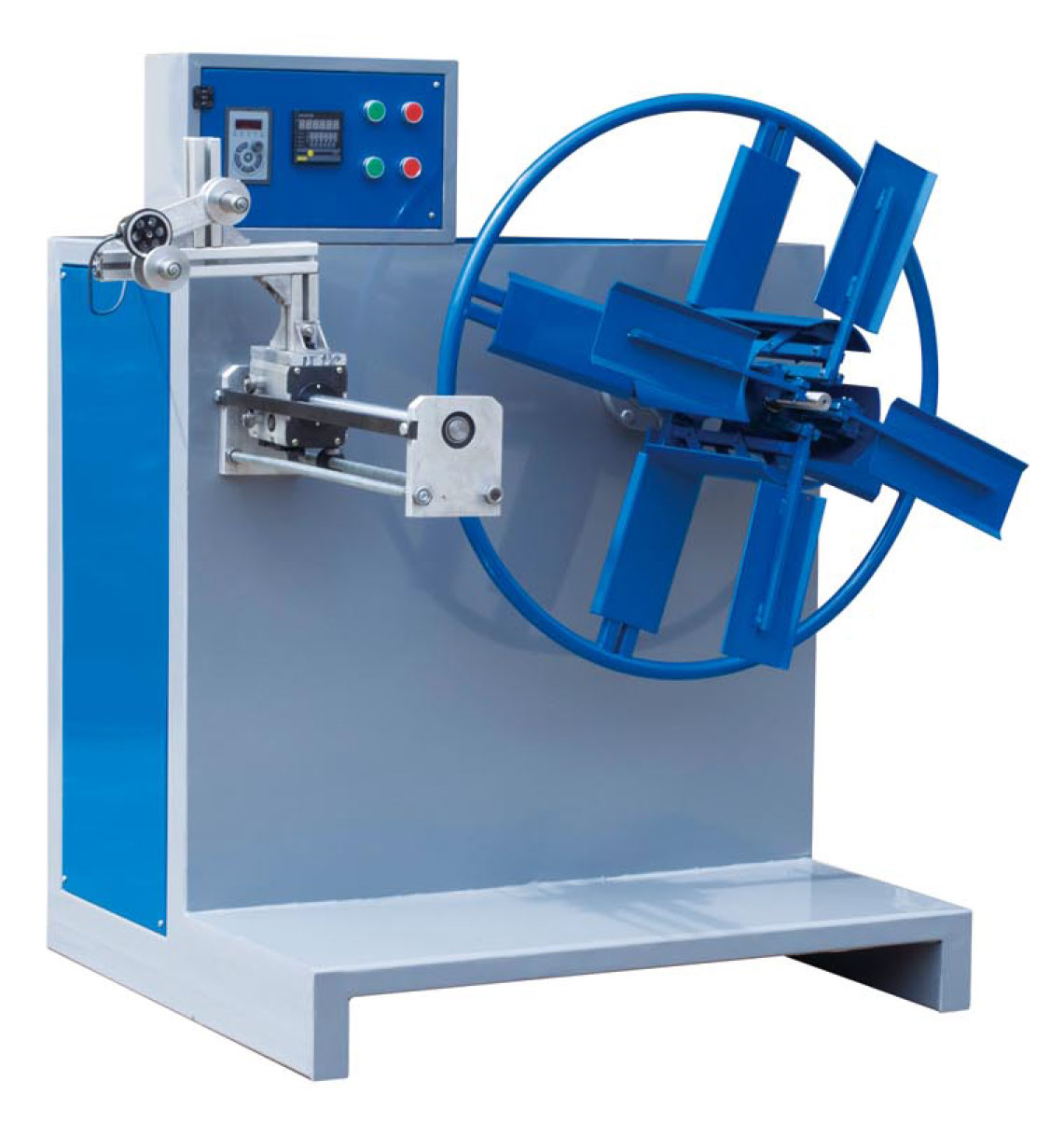

 50 Single or Double Stations Winder SJ Seires |
Single Station Winder or Double Stations Winder The winder is divided into single station and double station. Both of them adopt frequency conversion speed regulation. The pipe winding speed is controlled by infrared signal. |
| Main Techincal Parameters of Single Station Winder or Double Stations Winder | |||||
| Model | Rewinding Inner Diameter, mm | Rewinding Outer Diameter, mm | Winding Coil Width, mm | Pipe Diameter, mm | Motar Power, kW |
| SJ-55 | Φ200 | Φ800 | 200-400 | Φ10-Φ55 | 0.75 |
| Remarks: The above specifications are subject to change without notice. | |||||
