| Pimpex@RPM supplies PP/PE/PVC/PA Small Pipes Production Lines, Plastic Corrugated Pipes Production Lines and Plastic Winding Pipes Production Lines.
|
 10 PP PE PVC PA Small Pipes Production Line |
PP/PE/PVC/PA Small Pipe Production Line This production line is suitable for producing small pipes of plastics such as PP/PE/PVC/PA. The production line is mainly composed of a control system, an extruder, a die head, a vacuum sizing box, a tractor, a winder, and an automatic cutting machine. The pipe produced by it has stable size and high production efficiency. |
| Main Techincal Parameters of PP/PE/PVC/PA Small Pipe Production Line | |||||||
| Model | Production Speed, m/min | Cooling-Down Method | Shaping Method | Extruder | Winding Machine | Tractor | Total Power, kW |
| GC-4-63 | 5-10 | Water Cooling | Fixed Shape in Vacuum | Φ45-Φ80 | SJ-55 | QY-80 | 20-50 |
| Remarks: The above specifications are subject to change without notice. | |||||||

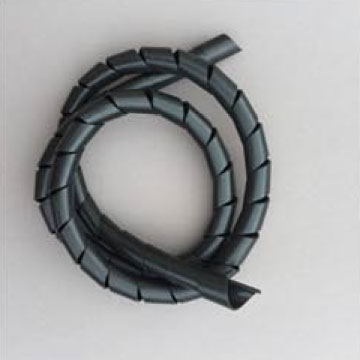

 11 Wire Winding Tube |

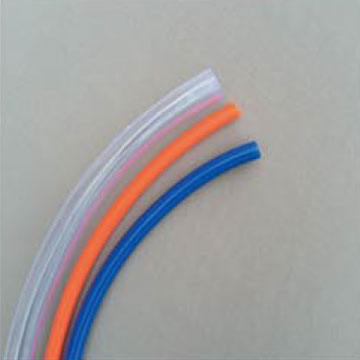

 12 PU Trachea |

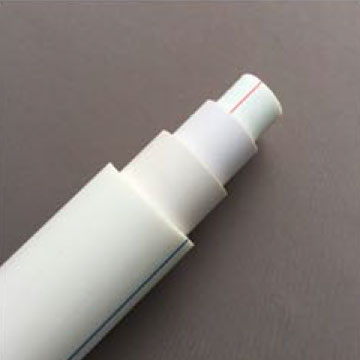

 13 Wire Sheath Wire Casing |

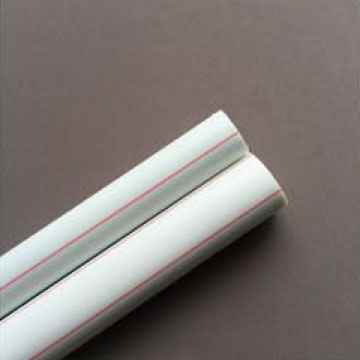

 14 Water Supply Pipe |
 30 Single Screw Plastics Extruder GJ Series |
Single Screw Extruder GJ series single screw extruder adopts frequency conversion speed regulation, which can effectively reduce the power consumption during the transmission process through the direct connection between the motor and the reduction box. The screw adopts a separate type plus mixing head method to strengthen the shearing effect of the material and improve the plasticizing effect. The machine has strong stability and low power consumption. |
| Main Techincal Parameters of Single Screw Extruder | |||||
| Model | Screw Diameter mm |
Production Speed m/min |
Transmission Power kW |
Center Height mm |
Yield kgs/h |
| GJ-30 | 30 | 28:1 | 4 | 1000 | 15-20 |
| GJ-45 | Φ45 | 28:1 | 7.5 | 1000 | 20-35 |
| GJ-50 | Φ50 | 28:1 | 11 | 1000 | 30-45 |
| GJ-65 | Φ65 | 28:1 | 15-22 | 1000 | 40-60 |
| GJ-80 | Φ80 | 28:1 | 30-37 | 1000 | 50-80 |
| GJ-90 | Φ90 | 28:1 | 37-55 | 1000 | 70-150 |
| Remarks: The above specifications are subject to change without notice. | |||||
 40 Crawler Tractor Drager QY Series |
Crawler Tractor The equipment adopts frequency conversion and stepless speed regulation, and uses gears to drive the upper and lower crawler tracks to synchronously pull. By adjusting the upper crawler, various sizes of plastic pipes and profiles can be pulled. Wide range of application and easy to use. |
| Main Techincal Parameters of Crawler Tractor | ||||
| Model | Traction Power, kW | Track Perimeter, mm | Traction Speed, m/min | Traction Pipe Diameter, mm |
| QY-8D | 1.5 | 1500 | 1-20 | Φ5-Φ80 |
| Remarks: The above specifications are subject to change without notice. | ||||
 50 Single or Double Stations Winder SJ Seires |
Single Station Winder or Double Stations Winder The winder is divided into single station and double station. Both of them adopt frequency conversion speed regulation. The pipe winding speed is controlled by infrared signal. |
| Main Techincal Parameters of Single Station Winder or Double Stations Winder | |||||
| Model | Rewinding Inner Diameter, mm | Rewinding Outer Diameter, mm | Winding Coil Width, mm | Pipe Diameter, mm | Motar Power, kW |
| SJ-55 | Φ200 | Φ800 | 200-400 | Φ10-Φ55 | 0.75 |
| Remarks: The above specifications are subject to change without notice. | |||||
