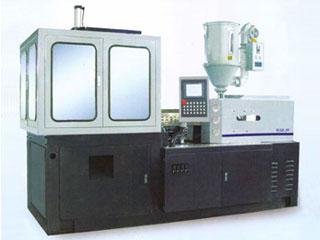

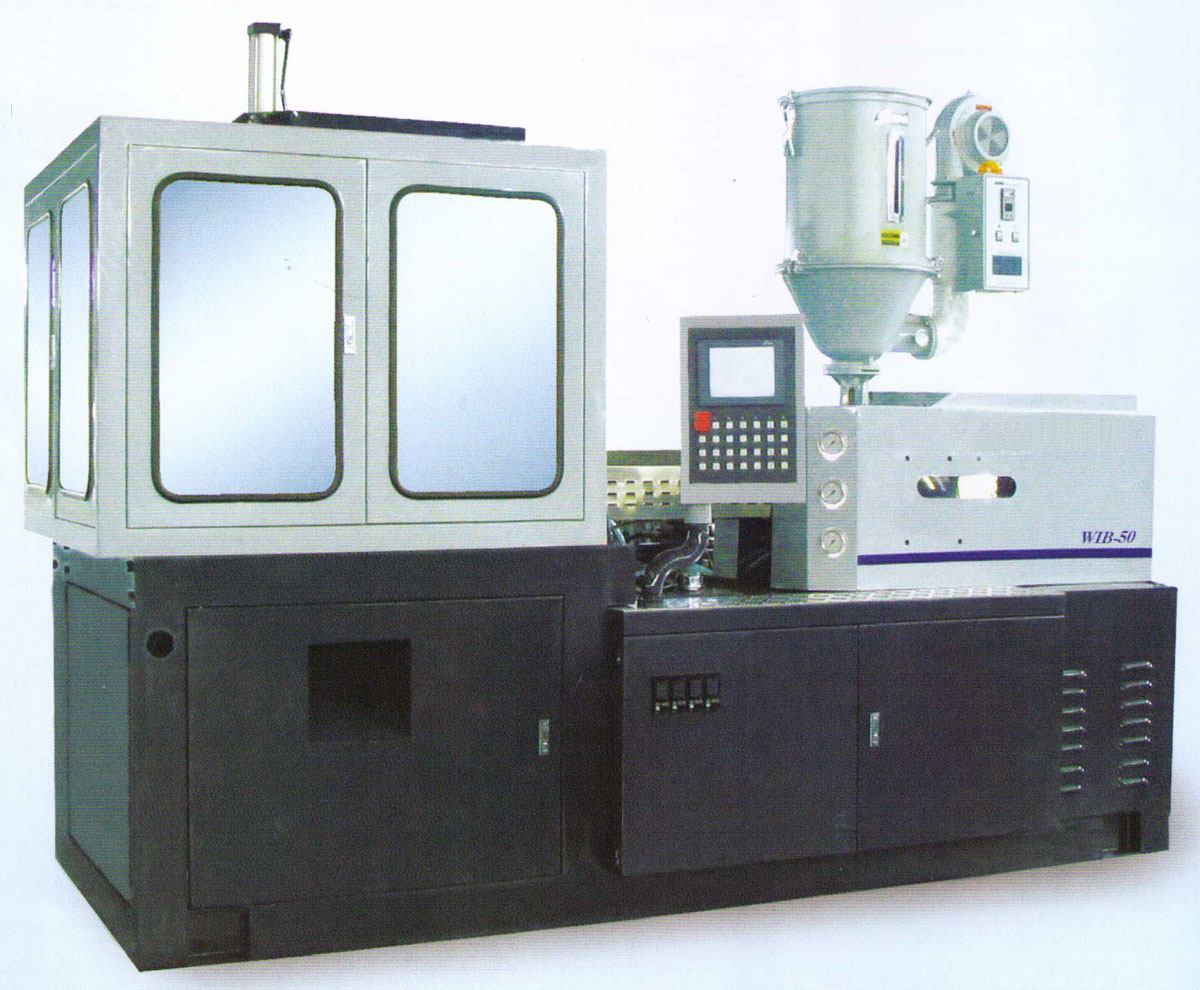

Pimpex@RPM supplies two stations automatic plastics injection blow molding (IBM) machines.
May you have viewed our unique One Station Injection Blow Molding Machinery, which is under China patent protection, in homepage of www.gzqlh.com There are Three Stations Injection Blow Molding Machinery made by others manufacturers in the market, which has higher output capacities, while costs higher in prices and consume more energy in production and need more spaces in workshops. Now our IBM engineers develop unique Two Stations Injection Blow Moding IBM Machine, Model WIB-50, which inherits advantages like "Higher efficiency, Lower energy consumption, Lower mould cost, Simple mould structure, Easy operation, Compact roomage" from our unique One Station Injection Blow Molding Machinery, while surely increases output capacities of bottles. To find most suitable machinery to meet with requirements of your project, here might you could purchase correctly what you are sourcing for. |
![]() Bottle Sizes Definition |
No. |
Item |
Unite |
Data |
|
||||||||||||||||||||
01 |
Screw Diameter | mm |
50 |
|||||||||||||||||||||
02 |
Screw Speed | r/min |
0~180 |
|||||||||||||||||||||
03 |
Injection Capacity | g |
300 |
|||||||||||||||||||||
04 |
Injection Clamping Force | KN |
210~280 |
|||||||||||||||||||||
05 |
Blow Clamping Force | KN |
65 |
|||||||||||||||||||||
06 |
Production Speed | pcs/h |
1100~2000 |
|||||||||||||||||||||
07 |
Suitable Materials | PE, PP, PS, SAN
|
||||||||||||||||||||||
08 |
Motor Power | KW |
15 |
|||||||||||||||||||||
09 |
Heater Capacity | KW |
11 |
|||||||||||||||||||||
10 |
Compressed Air | MPa |
0.6~1.2 |
|||||||||||||||||||||
11 |
Cooling Water | bar |
1~3 |
|||||||||||||||||||||
12 |
Machine Sizes | cm |
330*140*220 |
|||||||||||||||||||||
13 |
Machine Weight | Kg |
4500 |
