Pricing For Direct Press Type Horizontal Precise Plastic Injection Molding (IM) Machine, Model FD-60A

Made in China

Direct Press Type Horizontal Precise Plastic Injection Molding Machine, Model FD-60A, USD29,607/SET, FOB Xiamen Port, China
Clamping Force 68 Tons, Screw Diameter 28mm, Shot Volume 80g
Including 1 Set Toolbox, 1 Set Mold Fixing Clamps, 1 Set Antivibration Pads, 1 Set Popular Tools

---Remarks: The price is on USD100=RMB681 basis, if the exchange rate fluctuates more than 1%, the prices should be adjusted in last payment according to http://www.boc.cn/sourcedb/whpj/enindex.html
---Payment by 50% T/T Prepayment Plus 50% T/T Last Payment Before Delivery
---Lead Time: around 30 days after Seller's receipt of prepayment.
---Offer Validity: On and before Dec. 31st, 2009.

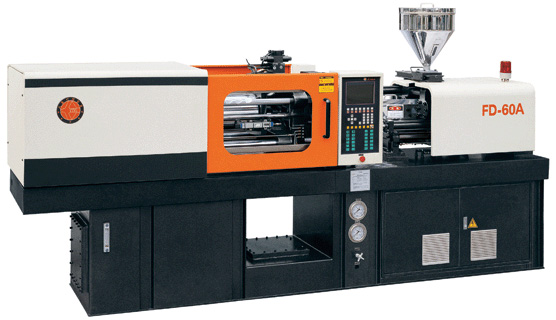

Direct Press Type
Horizontal Precise Plastic Injection Molding Machine
Model FD-60A

Plastic Injection Molding Machine FTN160F2

Components List of
Direct Press Type Horizontal Precise Plastic Injection Molding Machine, Model FD-60A

No

Name

Brand

1

Computer

Taiwan Techmation

2

Oil Valve

Taiwan Jeou Gang

3

Servo Motor, 55% Electricity Saving

Japan Toshiba

4

Oil Pump

Germany Boith

5

Electromagnetic Valve

Taiwan Dofluid DC 24V Low Noise Series

6

Oil Seal

Japan NOK

7

Electronic Ruler

France Sfernice, Germany Novotechnik

8

Oil Motor

Denmark Danfoss

9

 Screw Barrel
Taiwan Tan Star

10

 Screw Materials
High Quality Alloy

11

 Mechanical Parts
Self Machining

12

 Electrical Components
Schneider, Fuji

The manufacturer keeps its right to update the above items according to latest technology development.

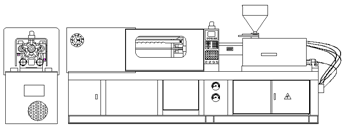

Direct Press Type, Horizontal Precise Plastic Injection Molding Machine, Model FD60A, Draft

Technical Parameters of Direct Press Type Horizontal Precise Plastic Injection Molding Machine, Model FD-60A

Description

Unit

Model FD-60A

Injection System

Screw Diameter

mm

Fi 28

Injection Pressure

kg/cm2

2343

Theoretical Injection Volume

cm3

86

Injection Capacity (PS)

g(oz)

80(3.0)

Injection Rate

cm3/sec

86

Clamping System

Clamping Force

ton

68

Space between Tie-Bars

mm

320×320

Plate Dimension

mm

480×480

Mold Size

mm

280×280

Minimum Mold Thinckness

mm

150

Opening Stroke

mm

450

Maximum Opening Daylight

mm

600

Ejection Force

ton

2.7

Ejection Stroke

mm

100

Others

Maximum Hydraulic System Pressure

kg/cm2

140

Oil Tank Volume

L

250

Cooling Water Capacity

L/min

40

Electric Motor Power

KW

9

Heater Capacity

KW

4.3

Total Wattage

KW

13.3

Machine Size (L*W*H, Minimum)

mm

4.1*0.9*1.5

Machine Weight (Approx.)

MT

2.7

The manufacturer keeps its right to update the above items according to latest technology development.

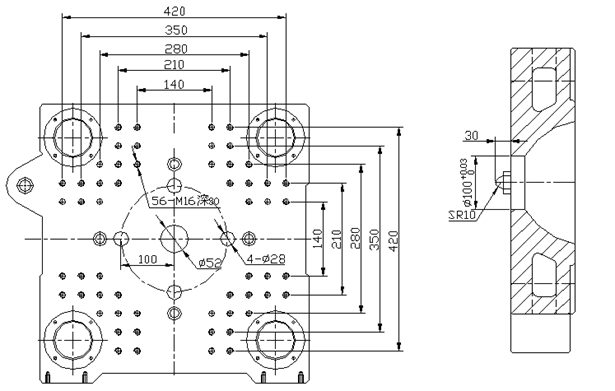

Direct Press Type, Horizontal Precise Plastic Injection Molding Machine, Model FD60A, Mold Plates
Direct Press Type Horizontal Precise Plastic Injection Molding Machine, Model FD60A, Mold Plates
