Pimpex@RPM supplies plastics recycling machinery sets such as stepped plastic exhaust extrusion granulator, foam plastic recycling granulator, plastic mixed colors exhaust granulator, water ring pelletizing plastic extrusion granulator, water strip cutting plastic extrusion granulator, pellet machine, water stripping pelletizing machine, water ring cutting extrusion granulator, etc.

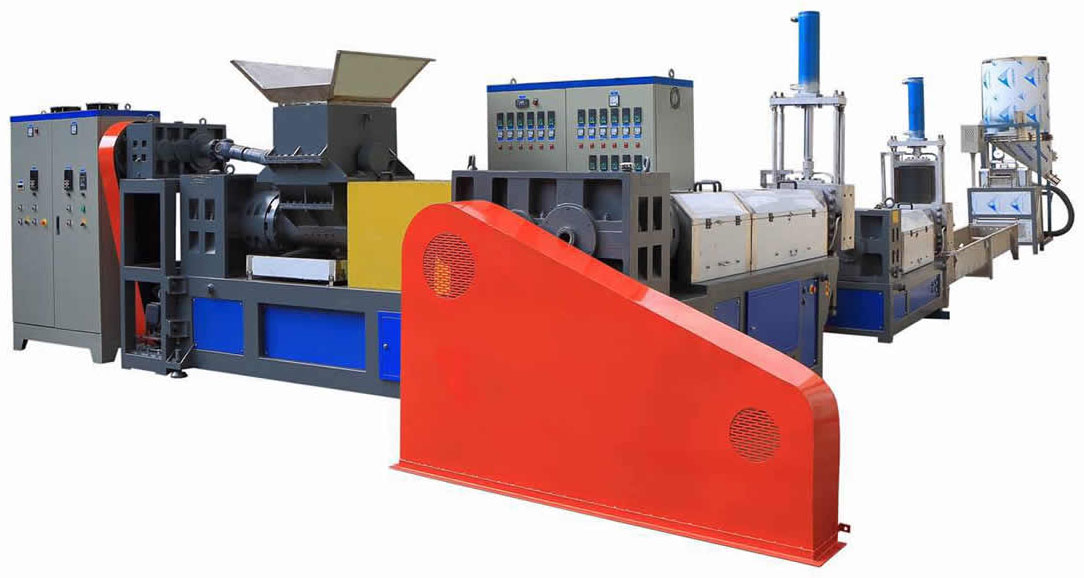

 Stepped Plastic Exhaust Extrusion Granulator, Foam Plastic Recycling Granulator and Plastic Mixed Colors Exhaust Granulator |

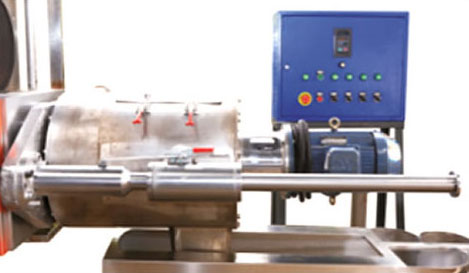

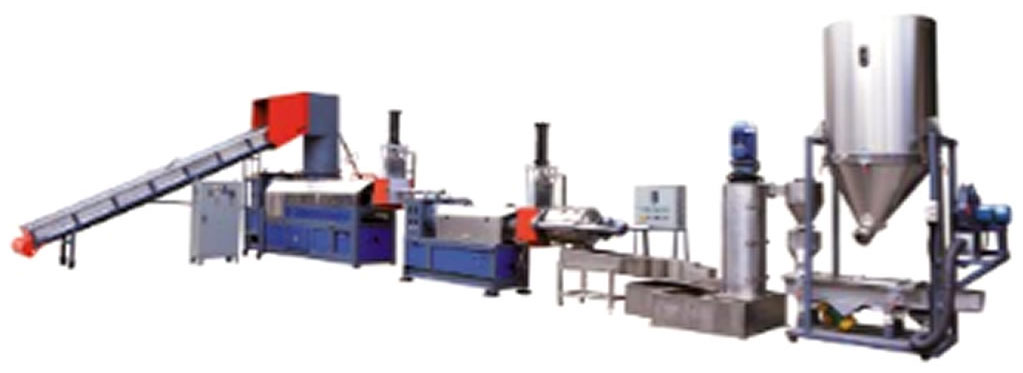

 01 High Configuration Water Ring Pelletizing Plastic Extrusion Granulator 1 - |
 01 High Configuration Water Ring Pelletizing Plastic Extrusion Granulator 2 Water Ring Type Horizontal Hot Cut |
 01 High Configuration Water Ring Pelletizing Plastic Extrusion Granulator 3 - |
 01 High Configuration Water Ring Pelletizing Plastic Extrusion Granulator 4 |
 01 High Configuration Water Ring Pelletizing Plastic Extrusion Granulator 5 |
| 01 High Configuration Water Ring Pelletizing Plastic Extrusion Granulator 6 | ||||||
| Model | HJSJ140/140-G | HJSJ140/140-G | HJSJ150/140-G | HJSJ160/160-G | HJSJ180/180-G | |
| Main Extruder | Screw Diameter | ∅140mm | ∅140mm | ∅150mm | ∅160mm | ∅180mm |
| Screw L/D Ratio | 19:1 | 25:1 | 28:1 | 28:1 | 28:1 | |
| Total Length of Screw | 2980mm | 3780mm | 4230mm | 4760mm | 5200mm | |
| Exhaust Form | Single Exhaust | Double Exhaust | Double Exhaust | Double Exhaust | Double Exhaust | |
| Screw Material | 38CrMoAl Nitriding Treatment | |||||
| Barrel Material | 38CrMoAl Nitriding Treatment | |||||
| Gearbox Model | GB 280# Gearbox | GB 315# Gearbox | GB 375# Gearbox | GB 395# Gearbox | GB 420# Gearbox | |
| Main Motor Power | 55kW-6Poles | 90kW-4Poles | 110kW-6Poles | 132kW-6Poles | 160kW-4Poles | |
| Heating Zone/Power | 8Zones/48kW | 10Zones/60kW | 13Zones/75kW | 14Zones/85kW | 16Zones/100kW | |
| Heater Form | Ceramic Heater before Exhaust | |||||

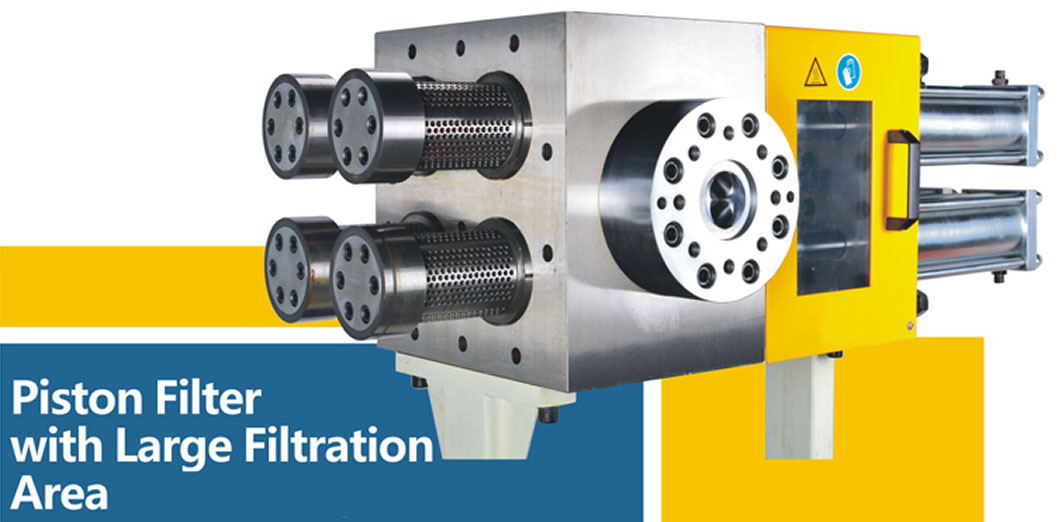

| Die Change Screen | Single-plate double-station hydraulic screen changer (filter area ∅300, round screen, no leakage, cylinder ∅125) | Single-plate double-station hydraulic screen changer (filter area ∅350, round screen, no leakage, cylinder ∅150) | Single-plate double-station hydraulic screen changer (filter area ∅350, round screen, no leakage, cylinder ∅150 ) 2 dies, i.e., two channels | |||
| Pressure Sensor | Equipped | |||||
| Frequency Converter | 55kW domestic inverter | 75kW domestic inverter | 110kW domestic inverter | 132kW domestic inverter | 160kW domestic converter | |
| Auxiliary Extruder | Screw Diameter | ∅140mm | ∅160mm | ∅180mm | ||
| Screw L/D Ratio | 12:1 | 12:1 | 12:1 | 12:1 | 12:1 | |
| Total Length of Screw | 2050mm | 2100mm | 2300mm | |||
| Exhaust Form | Single exhaust | Single exhaust | ||||
| Screw Material | 38CrMoAl Nitriding Treatment | |||||
| Barrel Material | 38CrMoAl Nitriding Treatment | |||||
| Gearbox Model | GB 225# Gearbox | GB 250# Gearbox | GB 250# Gearbox | GB 280# Gearbox | GB 315# Gearbox | |
| Auxiliary Motor Power | 22kW-4Poles | 30kW-4Poles | 37kW-4Poles | 45kW-4Poles | 75kW-4Poles | |
| Heating Zone/Power | 5Zones/30kW, 2 Zones Fan Cooling | 6Zones/35kW, 2 Zones Fan Cooling | 7Zones/40kW, 3 Zones Fan Cooling | |||
| Heater Form | Ordinary Heating Ring | |||||
| Die Change Screen | Single-plate double-station hydraulic screen changer (filter area ∅300, round screen, no leakage, cylinder ∅125) | Single-plate double-station hydraulic screen changer (filter area ∅350, round screen, no leakage, cylinder ∅150) | ||||
| Pressure Sensor | Equipped | |||||
| Frequency Converter | 22kW Domestic Inverter | 30kW Domestic Inverter | 37kW Domestic Inverter | 45kW Domestic Inverter | 75kW Domestic Inverter | |

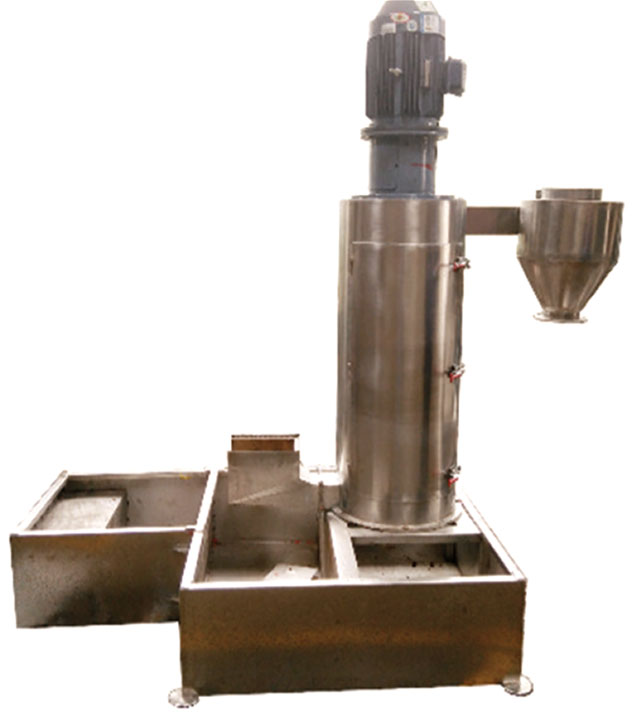

| Peripherals | Dehydrator | Vertical centrifugal dewatering machine, drive motor power 5.5kW |
Large vertical centrifugal dewatering machine with a drive motor power of 7.5kW | |||
| Pelletizer Configuration | Horizontal water ring pelletizing (2 knife seat), pelletizing motor power 2.2kW frequency control, circulating pump motor power 4kW | |||||
| Hydraulic Drive System | Double valve hydraulic station, drive motor power 4kW |
Double valve hydraulic station, drive motor power 5.5kW | ||||
| Vibrating Screen | 130 type ordinary vibrating screen |
180 type long vibrating screen | ||||
| Storage Hopper | 300kgs storage hopper (1.5kW) |
500kgs storage hopper (2.2kW) | 1000kgs storage hopper (3kW) | |||
| Hopper and Cover | 800*800 stainless steel high hopper and outer cover (barrel cover, made of stainless steel) | |||||
| Electrical System | Electrical Instrument | The temperature control instrutment adopts domestic display temperature control instrutment, the air switch and contactor adopt "Zhengtai" products, and the frame type structure electric cabinet is adopted. | ||||
| Total Installed Power | 155kW | 200kW | 260kW | 300kW | 350kW | |
| Suitable Raw Materials | HDPE, LDPE, Hard Plastic Materials, Crushed Plastic Materials | |||||
| Production Capacity | PE: 200-250kgs/hr | PE: 250-350kgs/hr | PE: 350-450kgs/hr | PE: 450-550kgs/hr | PE: 550-700kgs/hr | |

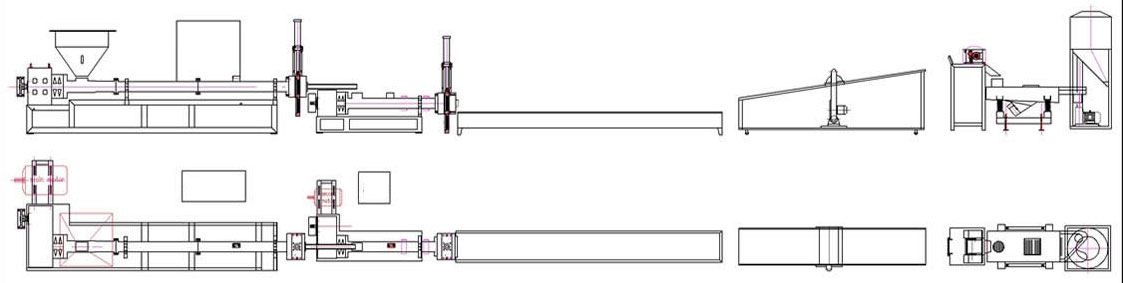

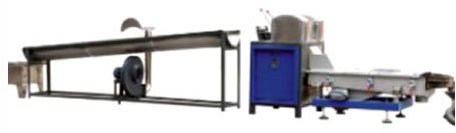

 02 High Configuration Water Strip Cutting Plastic Extrusion Granulator 1 - |
 02 High Configuration Water Strip Cutting Plastic Extrusion Granulator 2 Water Stripping |
 02 High Configuration Water Strip Cutting Plastic Extrusion Granulator 3 Water Strip Type Pelletizing |
 02 High Configuration Water Strip Cutting Plastic Extrusion Granulator 4 |
 02 High Configuration Water Strip Cutting Plastic Extrusion Granulator 5 |
 02 High Configuration Water Strip Cutting Plastic Extrusion Granulator 6 |
| 02 High Configuration Water Strip Cutting Plastic Extrusion Granulator 7 | ||||||
| Model | HJSJ140/140-P | HJSJ140/140-P | HJSJ150/140-P | HJSJ160/160-P | HJSJ180/180-P | |
| Main Extruder | Screw Diameter | ∅140mm | ∅140mm | ∅150mm | ∅160mm | ∅180mm |
| Screw L/D Ratio | 19:1 | 25:1 | 28:1 | 28:1 | 28:1 | |
| Total Length of Screw | 2980mm | 3780mm | 4230mm | 4760mm | 5200mm | |
| Exhaust Form | Single Exhaust | Double Exhaust | Double Exhaust | Double Exhaust | Double Exhaust | |
| Screw Material | 38CrMoAl Nitriding Treatment | |||||
| Barrel Material | 38CrMoAl Nitriding Treatment | |||||
| Gearbox Model | GB 280# Gearbox | GB 315# Gearbox | GB 330# Gearbox | GB 375# Gearbox | GB 395# Gearbox | |
| Main Motor Power | 55kW-4Poles | 75kW-4Poles | 90kW-4Poles | 110kW-4Poles | 132kW-4Poles | |
| Heating Zone/Power | 8Zones/48kW | 10Zones/55kW | 12Zones/65kW | 14Zones/75kW | 20Zones/100kW | |
| Heater Form | Ceramic Heater before Exhaust | |||||

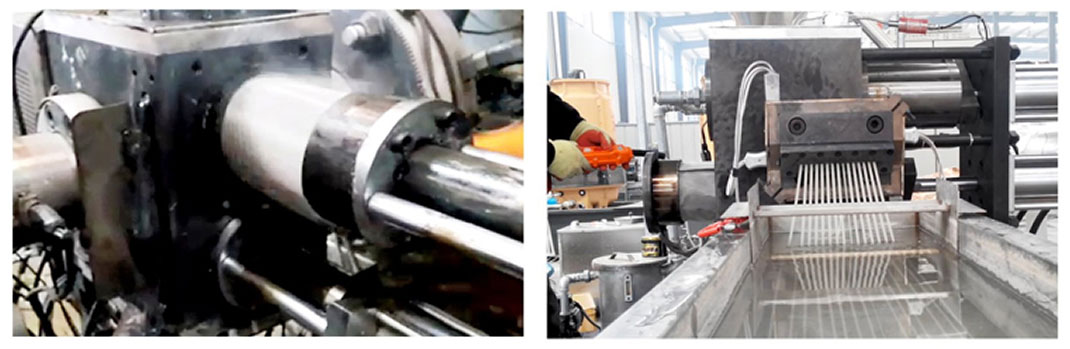

| Die Change Screen | Single-plate double-station hydraulic screen changer (filter area ∅300, round screen, cylinder ∅125) | Single-plate double-station hydraulic screen changer (filter area ∅350, round screen, cylinder ∅150) | Single-plate double-station hydraulic screen changer (filter area ∅350, round screen, cylinder ∅150 ) 2 dies, i.e., two channels | |||
| Pressure Sensor | Equipped | |||||
| Frequency Converter | 55kW domestic inverter | 75kW domestic inverter | 90kW domestic inverter | 110kW domestic inverter | 132kW domestic converter | |
| Auxiliary Extruder | Screw Diameter | ∅140mm | ∅160mm | ∅180mm | ||
| Screw L/D Ratio | 12:1 | 12:1 | 12:1 | 12:1 | 12:1 | |
| Total Length of Screw | 2050mm | 2100mm | 2300mm | |||
| Exhaust Form | Single exhaust | Single exhaust | ||||
| Screw Material | 38CrMoAl Nitriding Treatment | |||||
| Barrel Material | 38CrMoAl Nitriding Treatment | |||||
| Gearbox Model | GB 225# Gearbox | GB 250# Gearbox | GB 250# Gearbox | GB 280# Gearbox | GB 315# Gearbox | |
| Auxiliary Motor Power | 18.5kW-4Poles | 22kW-4Poles | 30kW-4Poles | 37kW-4Poles | 55kW-4Poles | |
| Heating Zone/Power | 5Zones/30kW, 2 Zones Fan Cooling | 6Zones/35kW, 3 Zones Fan Cooling | 7Zones/40kW, 3 Zones Fan Cooling | |||
| Heater Form | Ordinary Heating Ring | |||||
| Die Change Screen | Single-plate double-station hydraulic screen changer (filter area ∅300, round screen, cylinder ∅125) | Single-plate double-station hydraulic screen changer (filter area ∅350, round screen, cylinder ∅150) | ||||
| Pressure Sensor | Equipped | |||||
| Frequency Converter | 18.5kW Domestic Inverter | 22kW Domestic Inverter | 30kW Domestic Inverter | 37kW Domestic Inverter | 55kW Domestic Inverter | |
| Peripherals | Sink Specification | 2.5m stainless steel sink |
3m stainless steel sink | 4m stainless steel sink | 5m stainless steel sink | 6m stainless steel sink |
| Pelletizer Configuration | 25-knifes drum type alloy cutter head, 5.5kW frequency control | 25-knifes drum type alloy cutter head, 7.5kW frequency control | ||||
| Hydraulic Drive System | Double valve hydraulic station, drive motor power 3.75kW |
Double-valves hydraulic station, drive motor power 5.5kW | Three-valves hydraulic station, drive motor power 5.5kW | |||
| Vibrating Screen | 130 type ordinary vibrating screen 0.2kW |
180 type long vibrating screen 0.25kW | ||||
| Storage Hopper | 300kgs storage hopper (1.5kW) |
500kgs storage hopper (2.2kW) | 1000kgs storage hopper (3kW) | |||
| Hopper and Cover | 800*800 stainless steel high hopper and outer cover (barrel cover, made of stainless steel) | |||||
| Electrical System | Electrical Instrument | The temperature control instrutment adopts domestic display temperature control instrutment, the air switch and contactor adopt "Zhengtai" products, and the frame type structure electric cabinet is adopted. | ||||
| Total Installed Power | 150kW | 195kW | 220kW | 260kW | 300kW | |
| Suitable Raw Materials | PE, PP, ABS, PS | |||||
| Production Capacity | ABS, PS: 250-350kgs/hr |
ABS, PS: 350-450kgs/hr PE, PP: 250-350kgs/hr |
ABS, PS: 450-600kgs/hr PE, PP: 350-450kgs/hr |
ABS, PS: 600-750kgs/hr PE, PP: 450-600kgs/hr |
ABS, PS: 750-900kgs/hr PE, PP: 600-750kgs/hr |
|

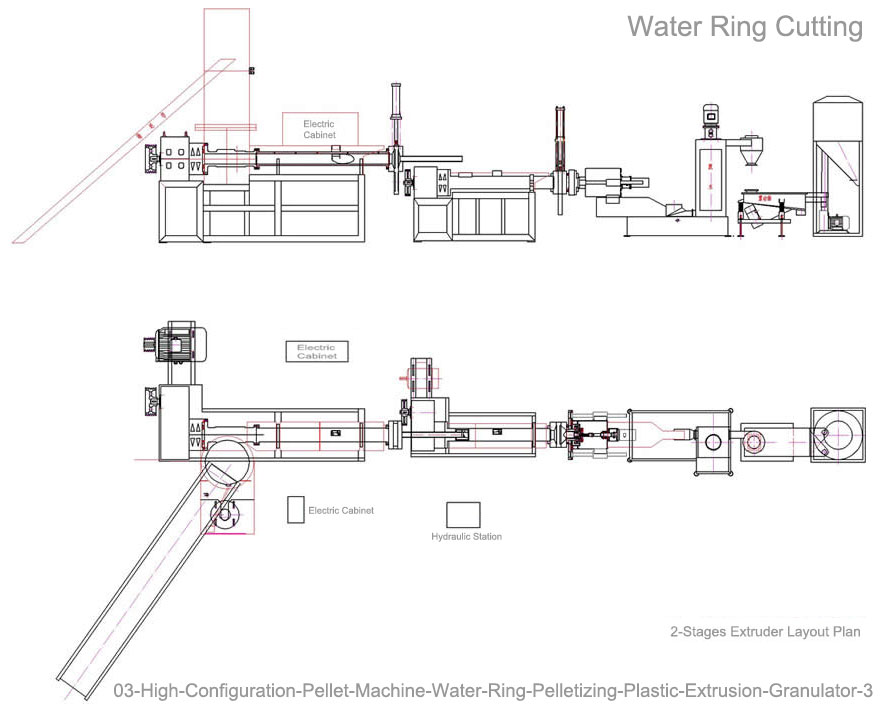

 03 High Configuration Pellet Machine Water Ring Pelletizing Plastic Extrusion Granulator 1 |
 03 High Configuration Pellet Machine Water Ring Pelletizing Plastic Extrusion Granulator 2 |
| 03 High Configuration Pellet Machine Water Ring Pelletizing Plastic Extrusion Granulator 3 | ||||||
| Model | HJSJ140/140-P | HJSJ140/140-P | HJSJ150/150-P | HJSJ160/160-P | HJSJ180/180-P | |
| Main Extruder | Screw Diameter | ∅140mm | ∅140mm | ∅150mm | ∅160mm | ∅180mm |
| Screw L/D Ratio | 19:1 | 25:1 | 30:1 | 30:1 | 30:1 | |
| Total Length of Screw | 2980mm | 3600mm | 4680mm | 4860mm | 5500mm | |
| Exhaust Form | Single Exhaust | Single Exhaust | Single Exhaust | Single Exhaust | Single Exhaust | |
| Screw Material | 38CrMoAl Nitriding Treatment | |||||
| Barrel Material | 38CrMoAl Nitriding Treatment | |||||
| Gearbox Model | GB 280# Gearbox | GB 330# Gearbox | GB 375# Gearbox | GB 395# Gearbox | GB 420# Gearbox | |
| Main Motor Power | 55kW-4Poles | 90kW-4Poles | 110kW-4Poles | 132kW-4Poles | 160kW-4Poles | |
| Heating Zone/Power | 8Zones/48kW | 11Zones/65kW | 13Zones/70kW | 14Zones/75kW | 20Zones/85kW | |
| Heater Form | Ceramic Heater before Exhaust | |||||
| Die Change Screen | Single-plate double-station hydraulic screen changer (filter area ∅300) | Single-plate double-station hydraulic screen changer (filter area ∅350) | Single-plate double-station hydraulic screen changer (filter area ∅350) 2 dies, i.e., two channels | |||
| Pressure Sensor | Equipped with die pressure sensor | |||||
| Frequency Converter | 55kW domestic inverter | 90kW domestic inverter | 110kW domestic inverter | 132kW domestic inverter | 160kW domestic converter | |
| Auxiliary Extruder | Screw Diameter | ∅140mm | ∅140mm | ∅150mm | ∅160mm | ∅160mm |
| Screw L/D Ratio | 12:1 | 12:1 | 12:1 | 12:1 | 12:1 | |
| Exhaust Form | Single exhaust | Single exhaust | Single exhaust | Single exhaust | Single exhaust | |
| Screw Material | 38CrMoAl Nitriding Treatment | |||||
| Barrel Material | 38CrMoAl Nitriding Treatment | |||||
| Gearbox Model | GB 225# Gearbox | GB 250# Gearbox | GB 250# Gearbox | GB 280# Gearbox | GB 280# Gearbox | |
| Auxiliary Motor Power | 22kW-4Poles | 30kW-4Poles | 37kW-4Poles | 45kW-4Poles | 55kW-4Poles | |
| Heating Zone/Power | 5Zones/35kW, 2 Zones Fan Cooling | 6Zones/38kW, 3 Zones Fan Cooling | 7Zones/45kW, 3 Zones Fan Cooling | |||
| Heater Form | Ordinary Heating Ring | |||||
| Die Change Screen | Single-plate double-station hydraulic screen changer (filter area ∅300) | Single-plate double-station hydraulic screen changer (filter area ∅350) | ||||
| Pressure Sensor | Equipped with die pressure sensor | |||||
| Frequency Converter | 22kW Domestic Inverter | 30kW Domestic Inverter | 37kW Domestic Inverter | 45kW Domestic Inverter | 55kW Domestic Inverter | |
| Peripherals | Granulator | 45kW, cylinder ∅700mm | 55kW, cylinder ∅700mm | 75kW, cylinder ∅800mm | 90kW, cylinder ∅800mm | 90kW, cylinder ∅900mm |

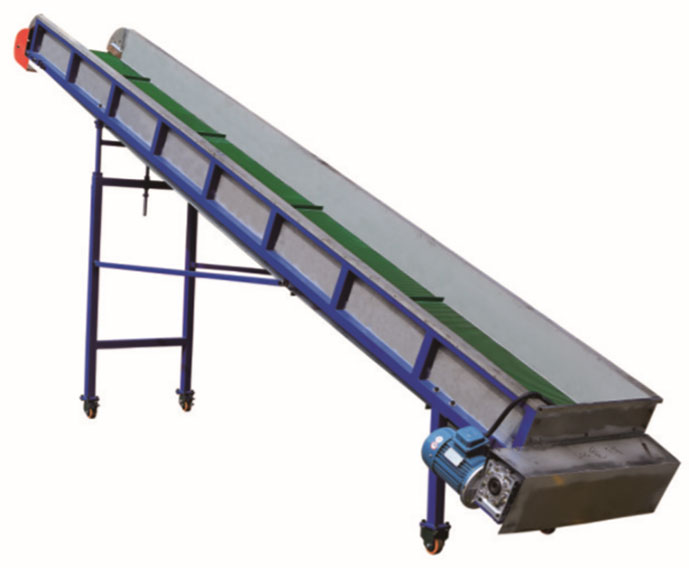

| Conveyor Belt | Length 5mm, Width 500mm | |||||
| Water Ring Cylinder | Vertical centrifugal dewatering machine, drive motor power 5.5kW |
Vertical centrifugal dewatering machine, drive motor power 7.5kW | ||||
| Pelletizer Configuration | Horizontal water ring cutting, pelletizing motor power 1.5kW frequency control, circulating pump motor power 4kW |
Horizontal water ring cutting, pelletizing motor power 2.2kW frequency control, circulating pump motor power 4kW | ||||
| Hydraulic Drive System | Double valve hydraulic station, drive motor power 3.75kW |
Double-valves hydraulic station, drive motor power 5.5kW | Three-valves hydraulic station, drive motor power 5.5kW | |||
| Vibrating Screen | 130 type ordinary vibrating screen 0.2kW |
180 type long vibrating screen 0.25kW | ||||
| Storage Hopper | 300kgs storage hopper (1.5kW) |
500kgs storage hopper (2.2kW) | 1000kgs storage hopper (2.2kW) | |||
| Hopper and Cover | 800*800 stainless steel high hopper and outer cover (barrel cover, made of stainless steel) | |||||
| Electrical System | Electrical Instrument | The temperature control instrutment adopts domestic display temperature control instrutment, the air switch and contactor adopt "Zhengtai" products, and the frame type structure electric cabinet is adopted. | ||||
| Total Installed Power | 200kW | 280kW | 350kW | 400kW | 450kW | |
| Suitable Raw Materials | PE Films | |||||
| Production Capacity | PE: 200-250kgs/hr |
PE: 300-400kgs/hr | PE: 400-500kgs/hr | PE: 500-600kgs/hr | PE: 600-700kgs/hr | |

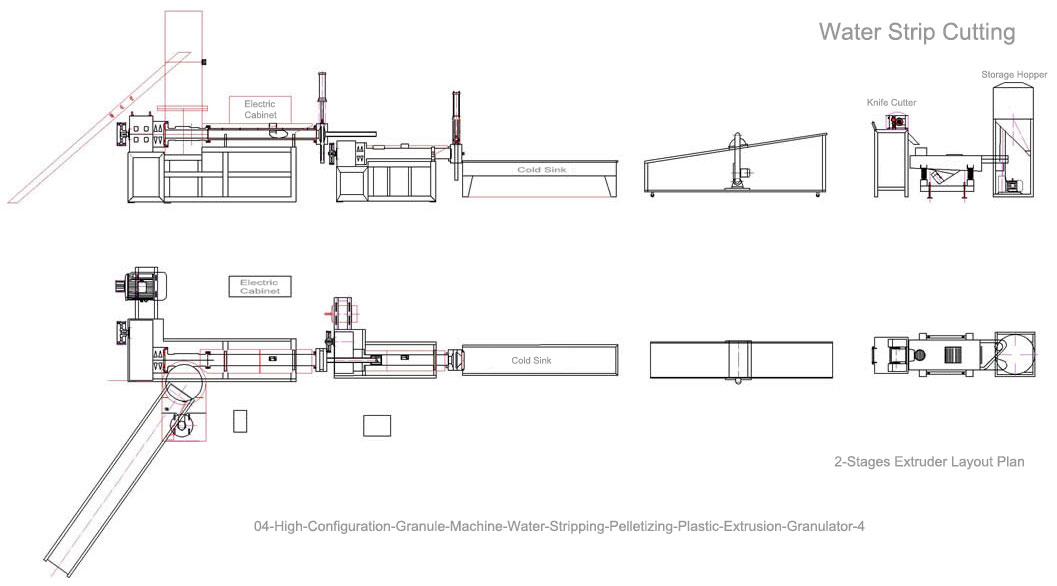

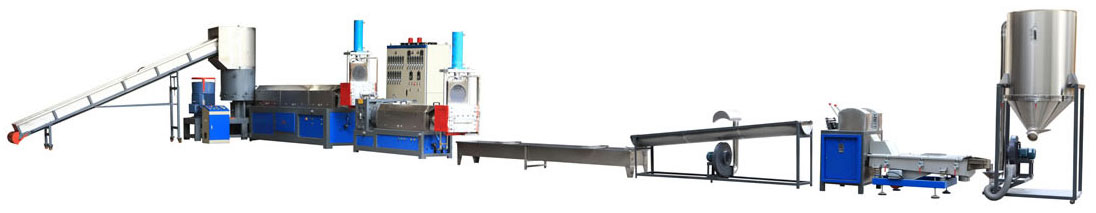

 04 High Configuration Granule Machine Water Stripping Pelletizing Plastic Extrusion Granulator 1 |
 04 High Configuration Granule Machine Water Stripping Pelletizing Plastic Extrusion Granulator 2 |
 04 High Configuration Granule Machine Water Stripping Pelletizing Plastic Extrusion Granulator 3 |
| 04 High Configuration Granule Machine Water Stripping Pelletizing Plastic Extrusion Granulator 4 | ||||||
| Model | HJSJ140/140-P | HJSJ140/140-P | HJSJ150/150-P | HJSJ160/160-P | HJSJ180/180-P | |
| Main Extruder | Screw Diameter | ∅140mm | ∅140mm | ∅150mm | ∅160mm | ∅180mm |
| Screw L/D Ratio | 19:1 | 25:1 | 30:1 | 30:1 | 30:1 | |
| Total Length of Screw | 2980mm | 3600mm | 4680mm | 4860mm | 5500mm | |
| Exhaust Form | Single Exhaust | Single Exhaust | Single Exhaust | Single Exhaust | Single Exhaust | |
| Screw Material | 38CrMoAl Nitriding Treatment | |||||
| Barrel Material | 38CrMoAl Nitriding Treatment | |||||
| Gearbox Model | GB 280# Gearbox | GB 310# Gearbox | GB 375# Gearbox | GB 395# Gearbox | GB 420# Gearbox | |
| Main Motor Power | 55kW-4Poles | 75kW-4Poles | 110kW-4Poles | 132kW-4Poles | 160kW-4Poles | |
| Heating Zone/Power | 8Zones/48kW | 11Zones/65kW | 13Zones/70kW | 14Zones/75kW | 20Zones/75kW | |
| Heater Form | Ceramic Heater before Exhaust | |||||
| Die Change Screen | Single-plate double-station hydraulic screen changer (filter area ∅300) | Single-plate double-station hydraulic screen changer (filter area ∅350) | Single-plate double-station hydraulic screen changer (filter area ∅350) 2 dies, i.e., two channels | |||
| Pressure Sensor | Equipped with die pressure sensor | |||||
| Frequency Converter | 55kW domestic inverter | 90kW domestic inverter | 110kW domestic inverter | 132kW domestic inverter | 132kW domestic converter | |
| Auxiliary Extruder | Screw Diameter | ∅140mm | ∅140mm | ∅150mm | ∅160mm | ∅180mm |
| Screw L/D Ratio | 12:1 | 12:1 | 12:1 | 12:1 | 12:1 | |
| Exhaust Form | Single exhaust | Single exhaust | Single exhaust | Single exhaust | Single exhaust | |
| Screw Material | 38CrMoAl Nitriding Treatment | |||||
| Barrel Material | 38CrMoAl Nitriding Treatment | |||||
| Gearbox Model | GB 225# Gearbox | GB 250# Gearbox | GB 250# Gearbox | GB 280# Gearbox | GB 315# Gearbox | |
| Auxiliary Motor Power | 22kW-4Poles | 30kW-4Poles | 37kW-4Poles | 45kW-4Poles | 55kW-4Poles | |
| Heating Zone/Power | 5Zones/30kW, 2 Zones Fan Cooling | 6Zones/38kW, 3 Zones Fan Cooling | 7Zones/45kW, 3 Zones Fan Cooling | |||
| Heater Form | Ordinary Heating Ring | |||||
| Die Change Screen | Single-plate double-station hydraulic screen changer (filter area ∅300) | Single-plate double-station hydraulic screen changer (filter area ∅350) | ||||
| Pressure Sensor | Equipped with die pressure sensor | |||||
| Frequency Converter | 22kW Domestic Inverter | 30kW Domestic Inverter | 37kW Domestic Inverter | 45kW Domestic Inverter | 45kW Domestic Inverter | |
| Peripherals | Granulator | 45kW, cylinder ∅700mm | 55kW, cylinder ∅700mm | 75kW, cylinder ∅800mm | 90kW, cylinder ∅800mm | 90kW, cylinder ∅900mm |
| Conveyor Belt | Length 5mm, Width 500mm | |||||
| Sink Specification | 2.5m stainless steel sink |
3m stainless steel sink | 4m stainless steel sink | 5m stainless steel sink | 6m stainless steel sink | |
| Pelletizer Configuration | 25-knifes drum type alloy cutter head, 5.5kW frequency control | 25-knifes drum type alloy cutter head, 7.5kW frequency control | ||||
| Hydraulic Drive System | Double valve hydraulic station, drive motor power 3.75kW |
Double-valves hydraulic station, drive motor power 5.5kW | Three-valves hydraulic station, drive motor power 5.5kW | |||
| Vibrating Screen | 130 type ordinary vibrating screen 0.2kW |
180 type long vibrating screen 0.25kW | ||||
| Storage Hopper | 300kgs storage hopper (1.5kW) |
500kgs storage hopper (2.2kW) | 1000kgs storage hopper (3kW) | |||
| Air Drying Device | 1.5kW fan + 3.5m stainless steel cooling rack | |||||
| Hopper and Cover | 800*800 stainless steel high hopper and outer cover (barrel cover, made of stainless steel) | |||||
| Electrical System | Electrical Instrument | The temperature control instrutment adopts domestic display temperature control instrutment, the air switch and contactor adopt "Zhengtai" products, and the frame type structure electric cabinet is adopted. | ||||
| Total Installed Power | 200kW | 280kW | 350kW | 400kW | 450kW | |
| Suitable Raw Materials | PE Films | |||||
| Production Capacity | PE: 200-250kgs/hr |
PE: 300-400kgs/hr | PE: 400-500kgs/hr | PE: 500-600kgs/hr | PE: 600-700kgs/hr | |

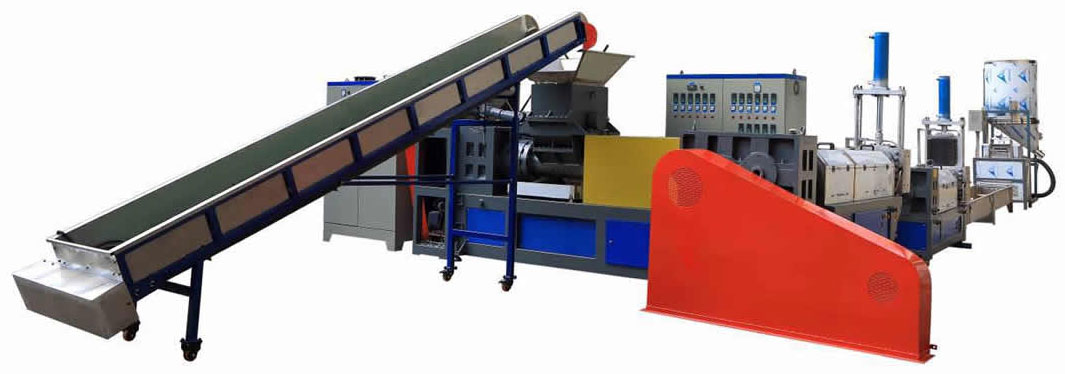

 05 Third Stages PE PP Water Materials Crushing and Cleaning Exhaust Water Strip or Water Ring Cutting Extrusion Granulator 1 |
 05 Third Stages PE PP Water Materials Crushing and Cleaning Exhaust Water Strip or Water Ring Cutting Extrusion Granulator 2 |
 05 Third Stages PE PP Water Materials Crushing and Cleaning Exhaust Water Strip or Water Ring Cutting Extrusion Granulator 3 |
 05 Third Stages PE PP Water Materials Crushing and Cleaning Exhaust Water Strip or Water Ring Cutting Extrusion Granulator 4 |
| 05 Third Stages PE PP Water Materials Crushing and Cleaning Exhaust Water Strip or Water Ring Cutting Extrusion Granulator 5 | |||||
| Third Stages PE, PP Water Materials Crushing and Cleaning Exhaust Water Strip Extrusion Granulator | Third Stages PE Water Materials Crushing and Cleaning Exhaust Water Ring Cutting Extrusion Granulator | ||||
| Model | HJSJ-200/160/160-P | Model | HJSJ-200/160/160-P | ||
| 1st Stage Extruder | Screw Diameter | ∅200mm | 1st Stage Extruder | Screw Diameter | ∅200mm |
| Screw L/D Ratio | 15:1 | Screw L/D Ratio | 15:1 | ||
| Exhaust Form | No exhaust | Exhaust Form | No exhaust | ||
| Screw Material | 38CrMoAl Nitriding Treatment | Screw Material | 38CrMoAl Nitriding Treatment | ||
| Barrel Material | 38CrMoAl Nitriding Treatment | Barrel Material | 38CrMoAl Nitriding Treatment | ||
| Gearbox Model | 330# | Gearbox Model | 330# | ||
| Motor Power | 90kW-4Poles | Motor Power | 90kW-4Poles | ||
| Motor Control Mode | Equipped with domestic inverter | Motor Control Mode | Equipped with domestic inverter | ||
| Heating Zone/Power | 3Zones/150kW | Heating Zone/Power | 3Zones/150kW | ||
| Heater Form | Electromagnetic heating | Heater Form | Electromagnetic heating | ||
| Die Change Screen | Round mouth discharge | Die Change Screen | Round mouth discharge | ||
| Inlet | 45# cast steel carburizing treatment | Inlet | 45# cast steel carburizing treatment | ||
| 2nd Stage Extruder | Screw Diameter | ∅160mm | 2nd Stage Extruder | Screw Diameter | ∅160mm |
| Screw L/D Ratio | 16:1 | Screw L/D Ratio | 16:1 | ||
| Exhaust Form | Single exhaust | Exhaust Form | Single exhaust | ||
| Screw Material | 38CrMoAl Nitriding Treatment | Screw Material | 38CrMoAl Nitriding Treatment | ||
| Barrel Material | 38CrMoAl Nitriding Treatment | Barrel Material | 38CrMoAl Nitriding Treatment | ||
| Gearbox Model | 280# | Gearbox Model | 280# | ||
| Motor Power | 37kW-4Poles | Motor Power | 37kW-4Poles | ||
| Motor Control Mode | Equipped with domestic inverter | Motor Control Mode | Equipped with domestic inverter | ||
| Heating Zone/Power | 8Zones/45kW | Heating Zone/Power | 8Zones/45kW | ||
| Heater Form | Ceramic heating ring | Heater Form | Ceramic heating ring | ||
| Pressure Sensor | Equipped | Pressure Sensor | Equipped | ||
| Die Change Screen | Single-plate double-station hydraulic (∅350, non-leakage die) | Die Change Screen | Single-plate double-station hydraulic (∅350, non-leakage die) | ||
| 3rd Stage Extruder | Screw Diameter | ∅160mm | 3rd Stage Extruder | Screw Diameter | ∅160mm |
| Screw L/D Ratio | 9:1 | Screw L/D Ratio | 9:1 | ||
| Exhaust Form | / | Exhaust Form | / | ||
| Screw Material | 38CrMoAl Nitriding Treatment | Screw Material | 38CrMoAl Nitriding Treatment | ||
| Barrel Material | 38CrMoAl Nitriding Treatment | Barrel Material | 38CrMoAl Nitriding Treatment | ||
| Gearbox Model | 250# | Gearbox Model | 250# | ||
| Motor Power | 30kW-4Poles | Motor Power | 30kW-4Poles | ||
| Motor Control Mode | Equipped with domestic inverter | Motor Control Mode | Equipped with domestic inverter | ||
| Heating Zone/Power | 5Zones/35kW | Heating Zone/Power | 5Zones/35kW | ||
| Heater Form | Ordinary heating ring | Heater Form | Ordinary heating ring | ||
| Pressure Sensor | Equipped | Pressure Sensor | Equipped | ||
| Die Change Screen | Single-plate double-station hydraulic (∅350, non-leakage die) | Die Change Screen | Single-plate double-station hydraulic (∅350, non-leakage die) | ||
| Feeding Device | Gearbox Model
|
173# | Feeding Device | Gearbox Model |
173# |
| Feed Motor | 7.5kW-8 | Feed Motor | 7.5kW-8 | ||
| Feeding Box | Special forced feeding box | Feeding Box | Special forced feeding box | ||
| Conveyor Belt | Length 4m, Width 60mm | Conveyor Belt | Length 4m, Width 60mm | ||
| Peripherals |
Pelletizing Method | 25-knife alloy hob pelletizer (with frequency converter) | Peripherals | Pelletizing Method | Horizontal water ring cutting, 2.2kW pelletizing (with frequency converter), stainless steel water ring cylinder, 4kW water pump |
| Sink Specification | 4.0m | Dehydrator mode | Vertical 5.5kW | ||
| Hydraulic Drive System | Double-valves hydraulic station, drive motor power 5.5kW | Hydraulic Drive System | Double-valves hydraulic station, drive motor power 5.5kW | ||
| Vibrating Screen | 180 type long vibrating screen | Vibrating Screen | 180 type long vibrating screen | ||
| Storage Hopper | 500kgs (2.2Kw Fan) | Storage Hopper | 500kgs (2.2Kw Fan) | ||
| Electric System | Electrical Instrument and Control Cabinet |
Independent electric cabinet, electromagnetic heating cabinet 3 zones, second and third stages electric cabinet 13 zones | Electric System | Electrical Instrument and Control Cabinet |
Independent electric cabinet, electromagnetic heating cabinet 3 zones, second and third stages electric cabinet 13 zones |
| Total Installed Power | 390kW | Total Installed Power | 390kW | ||
| Suitable Raw Materials | PE films, PP fiber bags, space bags and others washing and crushing recycling granulation | Suitable Raw Materials | PE films and others washing and crushing recycling granulation | ||
| Production Capacity | PP, PE: 350-450kgs/hr | Production Capacity | PE: 350-450kgs/hr | ||

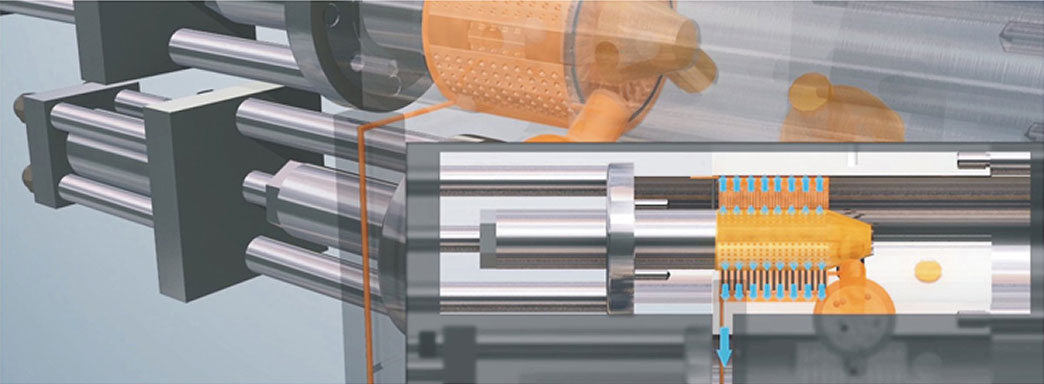

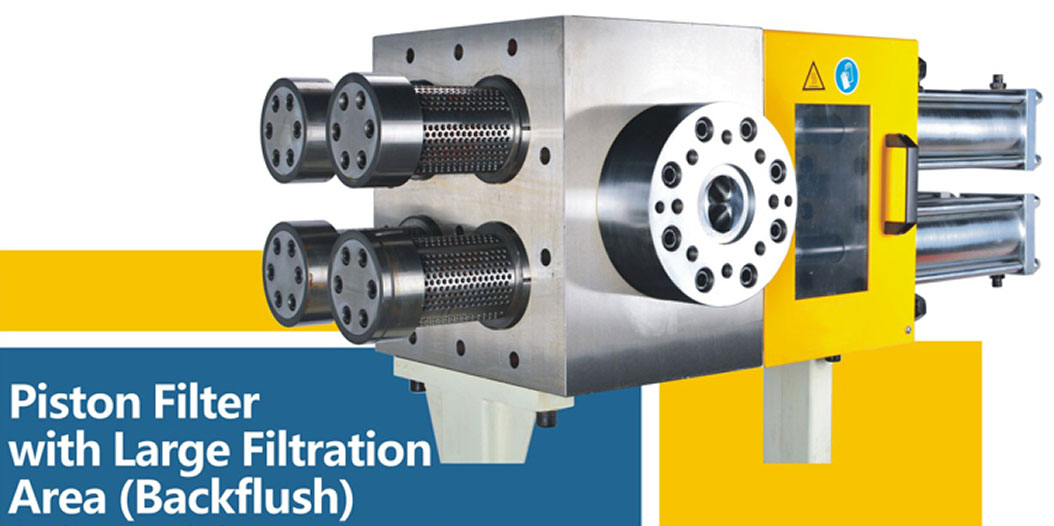

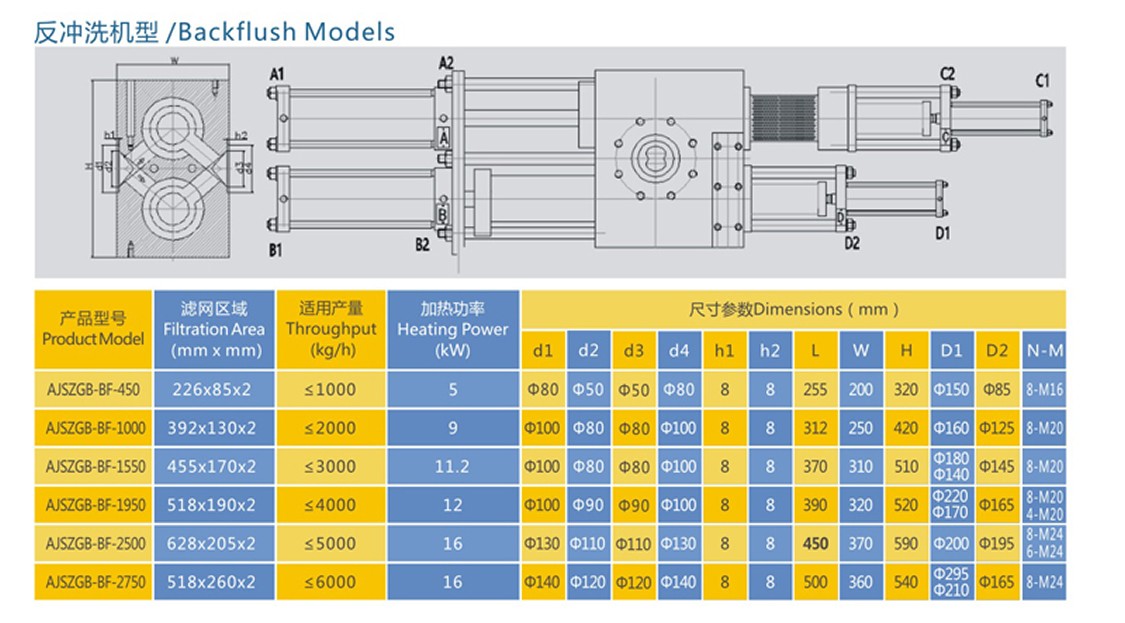

 06 Screen Changer Piston Filter with Large Filtration Area Backflush Backwash 1 |
 06 Screen Changer Piston Filter with Large Filtration Area Backflush Backwash 2 |
 06 Screen Changer Piston Filter with Large Filtration Area Backflush Backwash 3 |
 06 Screen Changer Piston Filter with Large Filtration Area Backflush Backwash 4 |
 06 Screen Changer Piston Filter with Large Filtration Area Backflush Backwash 5 |
 07 Four Columns Super Large Area Screen Filter |

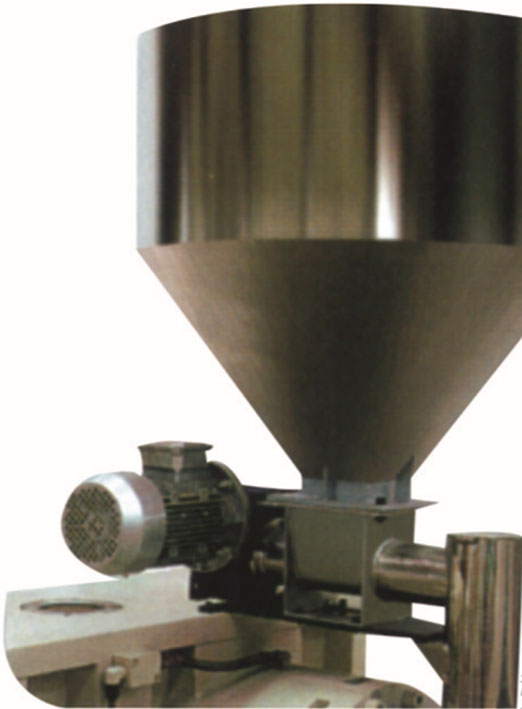

 08 Quantitative Feeder 1 - |
08 Quantitative Feeder 2 Suitable for dosing of various pellets or broken materials Model: HJSJ-FE10 Driving Power: 1.5kW Speed Regulation Form: Frequency Inverter Output: 400-600kgs/hr Sizes: 800*750*1100 Weight: 90kgs |
|
 09 Vertical Dewatering Machine 1 |
09 Vertical Dewatering Machine 2 Subsequent part of the water ring and underwater pelletizing device. Features: High-speed spiral movement, remove a large amount of water, made of stainless steel material, reasonable mechanism design to effectively separate the adhesive materials Model: HJSJ-VDD10 Driving Power: 5.5kW Output: 800kgs/hr Sizes: 1000*800*2100 Weight: 260kgs |
|

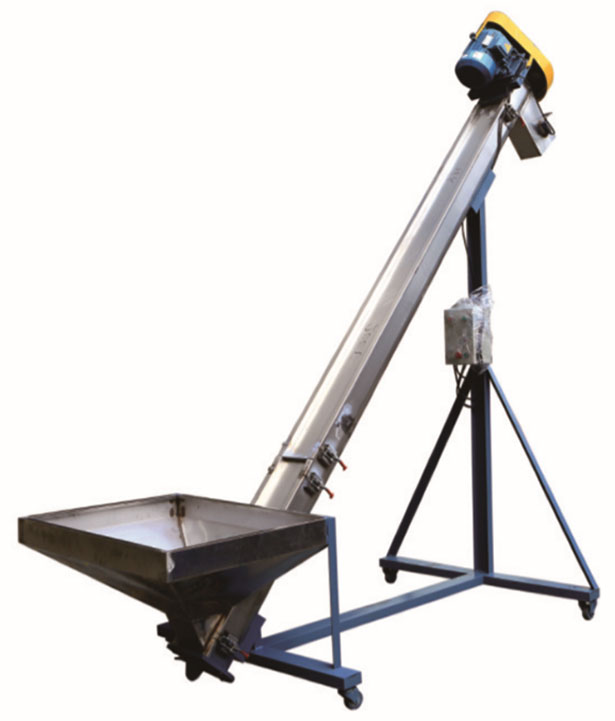

 10 Spiral Feeder Screw Feeder 1 |
10 Spiral Feeder Screw Feeder 2 Used for automatic feeding of raw materials such as granules and films Model: HJSJ-PL10 Driving Power: 3kW Output: 1,000kgs/hr Sizes: 3500*900*800 Weight: 500kgs |
|
 11 Conveyor Belt 1 |
11 Conveyor Belt 2 Used for automatic feeding of raw materials such as crushed materials and films Model: HJSJ-CON5m Driving Power: 1.1kW-6 Output: 300kgs/hr Sizes: 5000*650*240 Weight: 280kgs |
| Copyright © Pimpex@RPM Since 2002 www.gzqlh.com Sitemap XIAMEN RPM IMP.&EXP. CO.,LTD. |
