Pimpex Plastic, China supplies Non-Woven Disposable Products Machinery & Ultrasonic Welding Equipments. What is Non-Woven Fabrics?

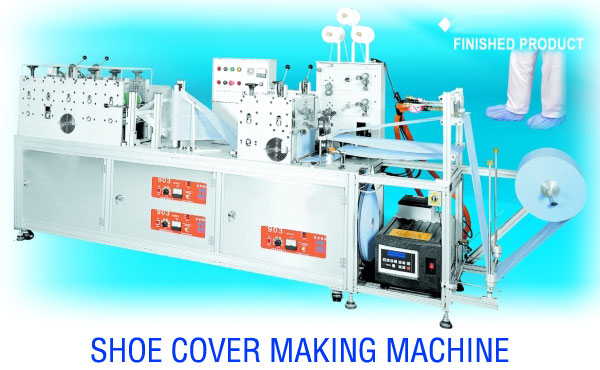

Shoe Cover Making Machine, HM2003
|
A special design to produce elesticated non-woven or plastic shoe cover automatically with throughput 60 pieces per minute. These shoe covers are suitable for hospital and hygiene industries. Fully automatic mechanism from meterial feeding to finished product collected, no worker needed.
MACHINE FEATURES
1. Compact in machine size
2.
Reliable performance
3.
Aluminum alloy made structure
4.
Automatic tension control
5.
Adjustable ultrasonic weld, Plastic thermal fusing.
6.
Fashionable finished products
7.
High productivity |
SPECIFICATION
1. Machine size : 3760(L) x 950(W) x 1780(H)
2.
Line source: 220V , 1 or 3 phase
3.
Throughput: 60 pcs/min
4.
Power consumption: 5.8 KW |
|

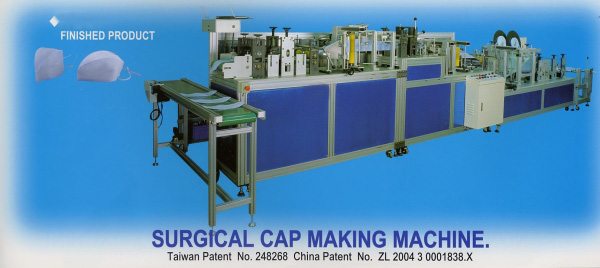

Surgical Cap Making Machine, HM2007
|
The doctor cap making machine is a fully automatic production machine. From raw material supplying to finished product outputed. The overall inprocess and production are completed on th same machine.
MACHINE FEATURES
1. Automatic tension control
2. PLC programmed control
3. Photoelectric sensors for positioning control
4. Printing device optional |
SPECIFICATION
1. Machine size: 8300(L) x 1160(W) x 1470(H)
2. Line source: 220/380V, 1 or 3 phases
3. Throughput: 80~100 pcs/min
4. Power consumption: 5.7 KW |
|

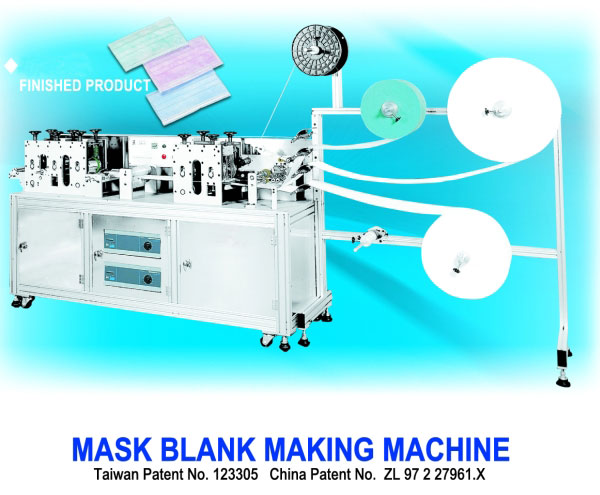

Blank Mask Making Machine, HM1001
|
MACHINE FEATURES
1. Compact in machine size
2. Unbeatable productivity with 120 pcs/min
3. Product size adjustable
4. Pleat position adjustable
5. Reliable performance
6. Aluminum alloy made structure
7. 1~4 layers mask blank available |
SPECIFICATION
1. Machine size : 3345(L) x 630(W) x 1830(H)
2. Line source : 220V , 1 or 3 phase
3. Throughput : 120 pcs/min
4. Power consumption : 2.7 KW |
|

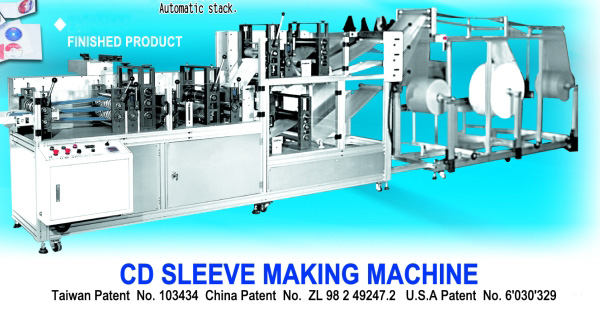

CD Sleeve Making Machine, HM2001
|
A special design to produce CD sleeve automatically in counts of 40-160 pieces per minute. Suitable for CD manufacture industry.
MACHINE FEATURES
1. Tension controls
2. Reliable performance
3. Aluminum alloy made structure
4. PLC control
5. Photoelectric sensors for positioning control
6. Ultrasonic weld
7. Automatic stack |
SPECIFICATION
1. Machine size: 4750(L) x 1230(W) x 1550(H)
2. Line source: 220V, 1 or 3 phases
3. Throughput: 40~160 pcs/min
4. Power consumption: 3.3 KW |
|

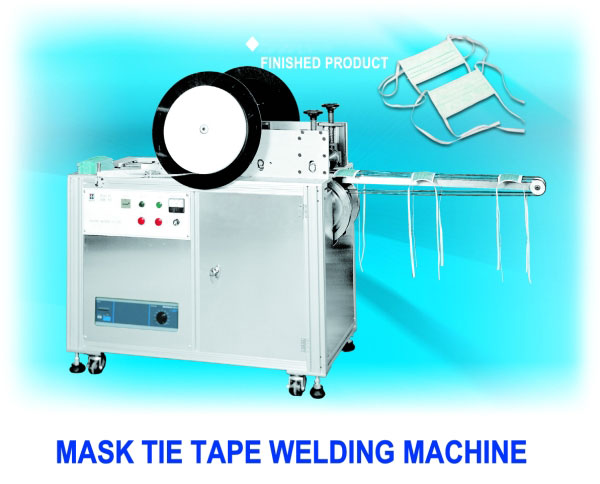

Mask Tie Tape Welding Machine, HM1003
|
MACHINE FEATURES
1. Compact in machine size
2. Reliable performance
3. Aluminum alloy made structure |
SPECIFICATION
1. Machine size: 1980(L) x 750(W) x 1370(H)
2. Line source: 220V, 1 or 3 phase
3. Throughput: 40~50 pcs/min
4. Power consumption: 2.3 KW |
|

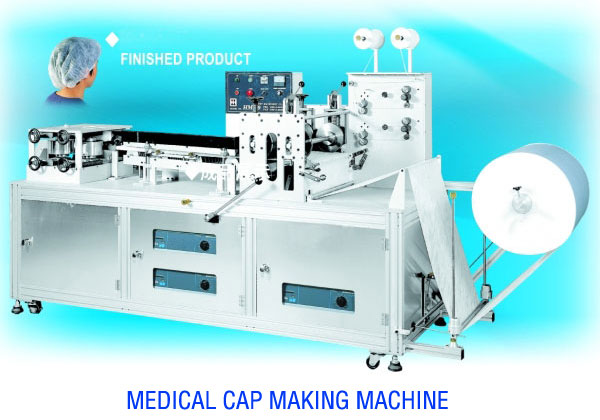

Medical Cap Making Machine, HM2002
|
A special design to produce elesticated non-woven caps automatically in counts of 60 pieces per minute. Suitable for hospital and hygiene industries. Fully automatic mechanism from material feeding to finished product output, no worker needed.
MACHINE FEATURES
1. Compact in machine size
2. Reliable performance
3. Aluminum alloy made structure
4. Automatic tension control
5. Adjustable ultrasonic welding
6. High productivity |
SPECIFICATION
1. Machine size : 3200(L) x 960(W) x 1630(H)
2. Line source: 220V , 1 or 3 phase
3. Throughput: 60 pcs/min
4. Product size: 19" , 21" , 23"
5. Power consumption: 3.3 KW |
|
