Technical Data of Automatic Injection Blow Molding Plastic Machines

Injection Blow Molding IBM Machines for Cosmetic Containers/Jars, Pharmaceutical Bottles/Containers

1	Model of Machinery		.	(Injection Blow Molding Machine) WB07-5					(Injection Blow Molding Machine) WB2-1B
2	Screw Diameter		mm	40					50
3	Screw Speed		r/min	0-190					0-180
4	Injection Capacity		g	175					300
5	Injection Clamping Force		KN	150					210
6	Blow Clamping Force		KN	30					65
7	Suitable Material		.	PE, PP, PS, SAN
8	Production Speed		pcs/h	850-1600					1100-2000
9	Motor Power		KW	11					15
10	Heater Capacity		KW	7					11
11	Compressed Air		MPa	0.6-1.2					0.6-1.2
12	Cooling Water		bar	1-3					1-3
13	Dimension of Machine		cm	230×125×250					280×140×260
14	Machine Weight		kg	2500					3500
15	Dimensions	Mould Cavities	.	2	4	6	8	9	4	6	9	10	12
		Bottle Mouth (d)	mm	60	42	36	30	20	50	42	36	30	18
		Bottle Body (D)	mm	100	80	60	50	42	110	80	55	50	40
		Bottle Height (H)	mm	200	180	150	150	80	220	200	180	150	80

Injection Blow Molding IBM Machines for PC (Polycarbonate) Baby Bottles, Sport Bottles

1	Model of Machine		-	(Injection Blow Molding Machine for PC) WB2PC-1					(Injection Blow Molding Machine for PC) WB2PC-2
2	Screw Diameter		mm	42					52
3	Screw Speed		r/min	0-180					0-180
4	Injection Capacity		g	190					320
5	Injection Clamping Force		KN	170					320
6	Blow Clamping Force		KN	50					65
7	Suitable Materials		-	PMMA, PC (PE, PP, PS, SAN)
8	Production Speed		pcs/h	200-720					150-400
9	Motor Power		KW	15					18.5
10	Heater Capacity		KW	11					13
11	Compressed Air		MPa	0.8-1.2					0.8-1.2
12	Cooling Water		bar	1-3					1-3
13	Dimension of Machine		cm	260×134×260					285x150x260
14	Machine Weight		kg	3000					4000
15	Bottle Dimensions	Mould Cavities	-	1	2	3	4	5	1	2	3	4	5
		Bottle Mouth (d)	mm	75	54	44	38	32	75	54	44	38	32
		Bottle Body (D)	mm	100	90	80	65	55	100	90	80	65	55
		Bottle Height (H)	mm	200	180	180	160	120	200	180	180	160	120

Injection Blow Molding Machine Main Specification

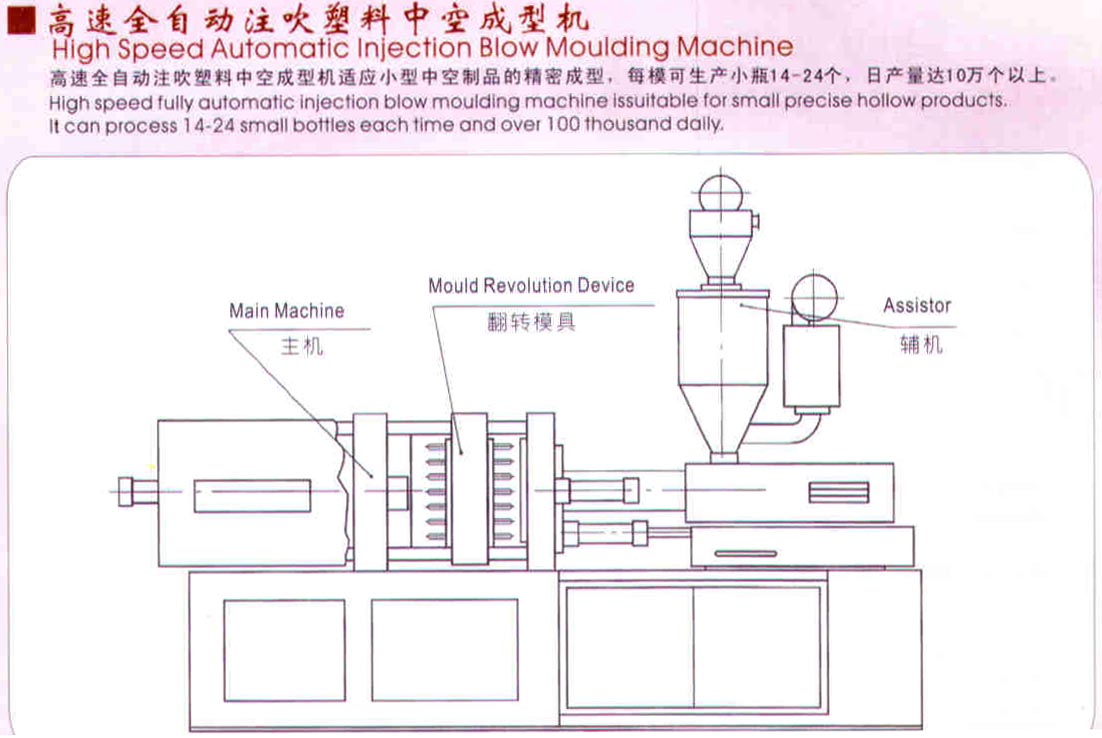

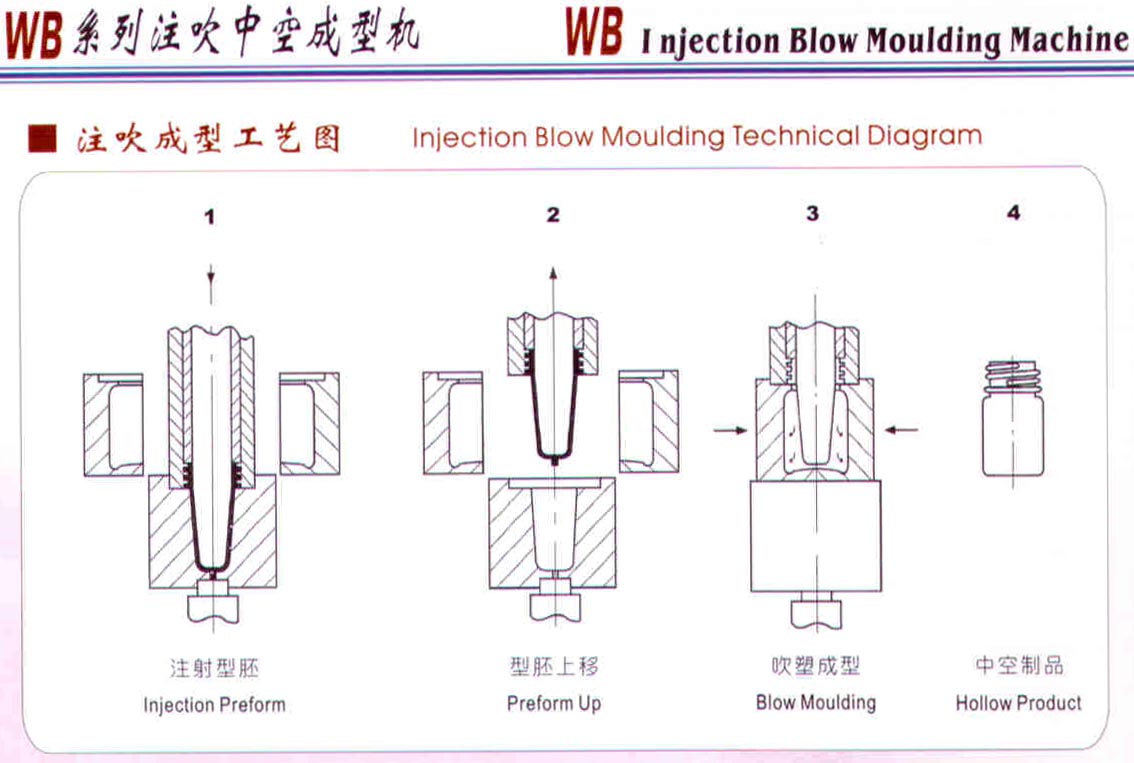

High Speed Automatic Injection Blow Molding Machine	Injection Blow Molding Technical Diagram

Injection Blow Molding Machine
Equipped With
World Famous Electric Parts

Injection Blow Molding Machine
Equipped With
World Famous Hydraulic Parts

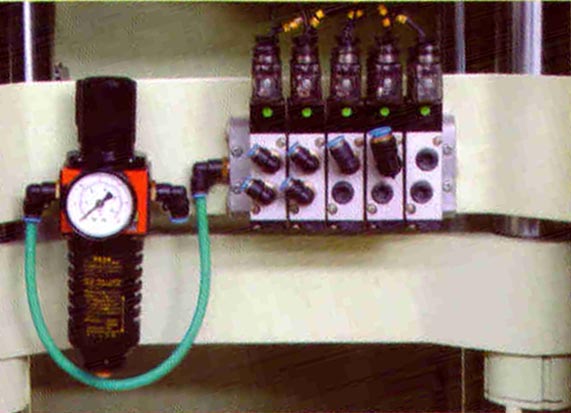

Injection Blow Molding Machine
Equipped With
World Famous Pneumatic Parts

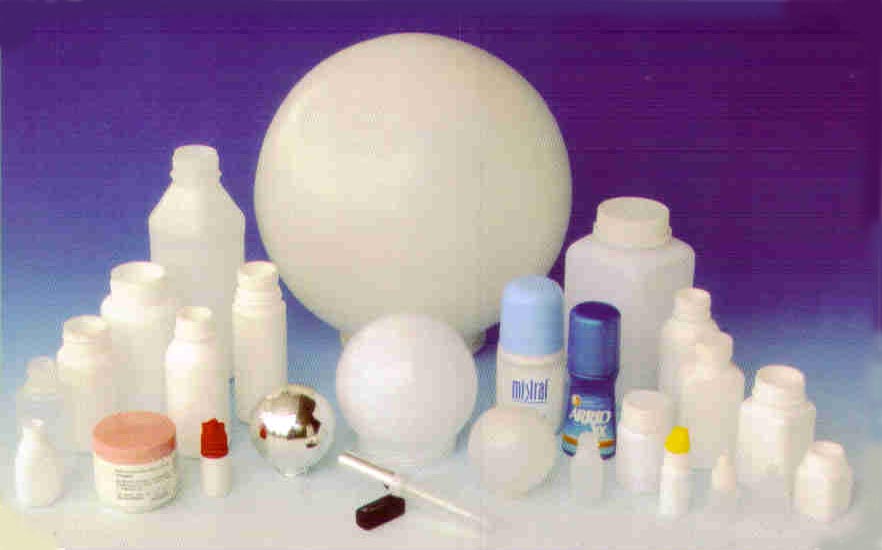

Container Volume
2ml 5000ml 30000ml
from Injection Blow Molding Machine

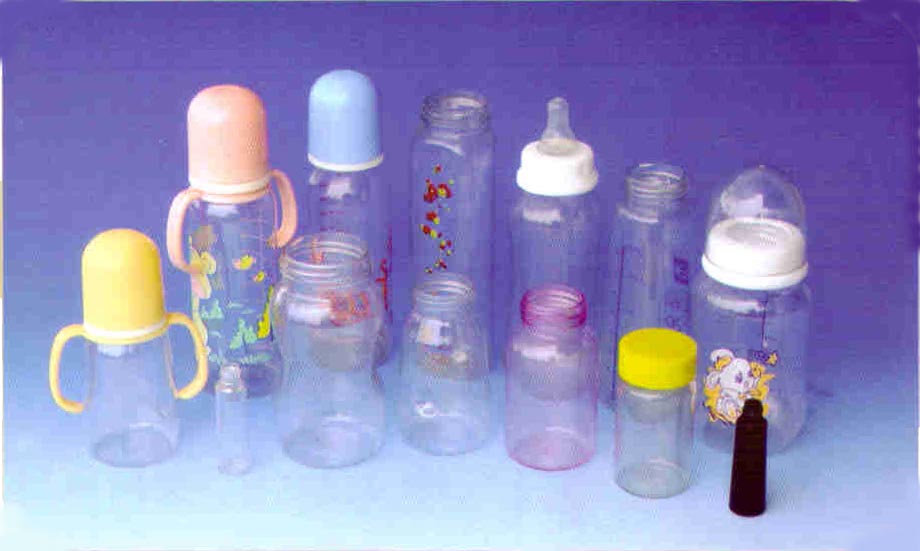

Very Suitable
for PC Bottles
from Injection Blow Molding Machine
