 Plastics Injection Blow Molding (IBM) Machine WIB-65, Picture a |
Video of testing 250mm PMMA lampshade mold by IBM machine |
|
| Video of testing 3L PC jar mold by customerized IBM machine |
Video of testing 5L PC jar mold by customerized IBM machine |
Video of testing 250mm PMMA lampshade mold by IBM machine |
Main Specification of Big Automatic Plastics Injection Blow Molding (IBM) Machinery WIB-65
No |
Item |
Unit |
WIB-65 |
 |
Cavities |
Weight (g) |
Neck d (mm) |
Body D (mm) |
Height H (mm) |
1 |
Screw Diameter | mm |
65 |
1 |
520 |
155 |
300 |
300 |
|
2 |
Screw Speed | r/min |
0-180 |
2 |
260 |
105 |
220 |
300 |
|
3 |
Injection Capacity | g |
750 |
3 |
170 |
90 |
150 |
300 |
|
4 |
Injection Clamping Force | KN |
1300 |
4 |
130 |
72 |
120 |
300 |
|
5 |
Blow Clamping Force | KN |
200 |
||||||
6 |
Motor Power | kw |
37 |
||||||
7 |
Heater Power | kw |
15 |
||||||
8 |
Blowing Pressure | Mpa |
1.0-2.0 |
||||||
9 |
Cooling Water | bar |
1-3 |
||||||
10 |
Machine Dimension | mm |
5200x1900x3600 |
||||||
11 |
Machine Weight | Kg |
8000 |
||||||
12 |
Suitable Material | PC, TRITAN, PMMA |
|||||||

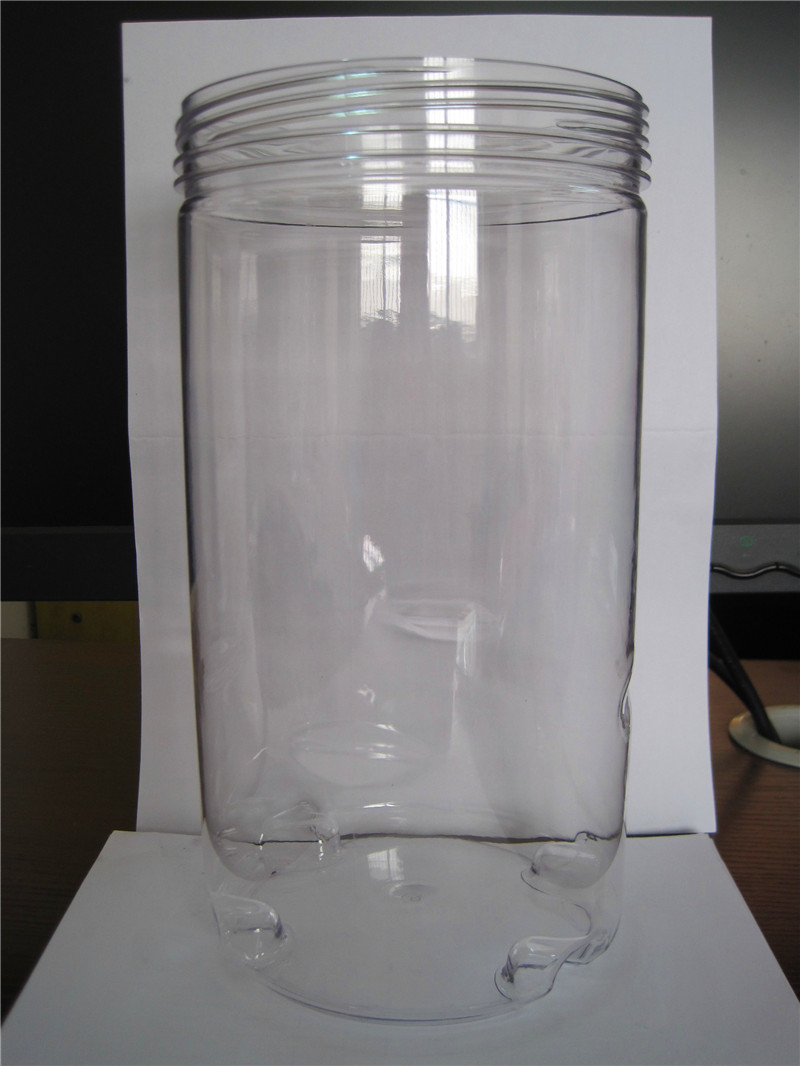

 3L_PC_Jar_1 Produced by Customerized IBM Machine WIB-65 |

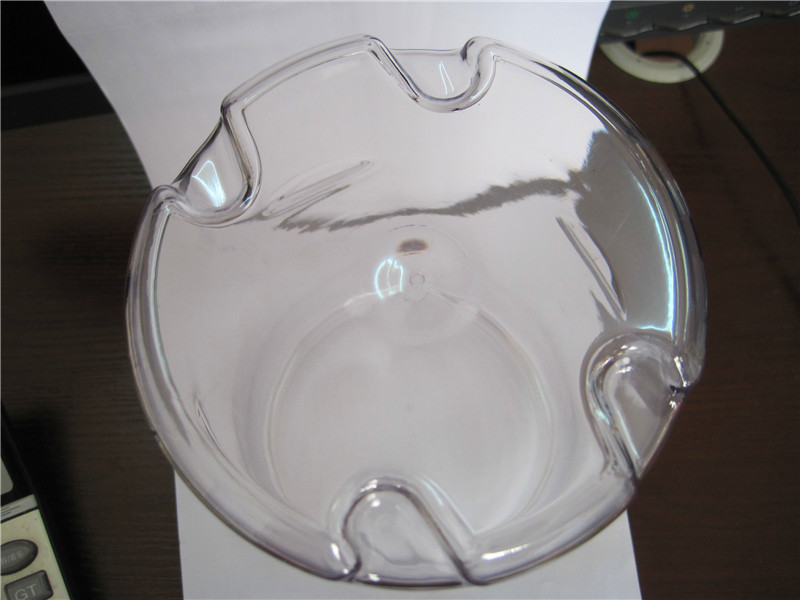

 3L_PC_Jar_2 Produced by Customerized IBM Machine WIB-65 |
|
 5L_PC_Jar_1 Produced by Customerized IBM Machine WIB-65 |
 5L_PC_Jar_2 Produced by Customerized IBM Machine WIB-65 |
|

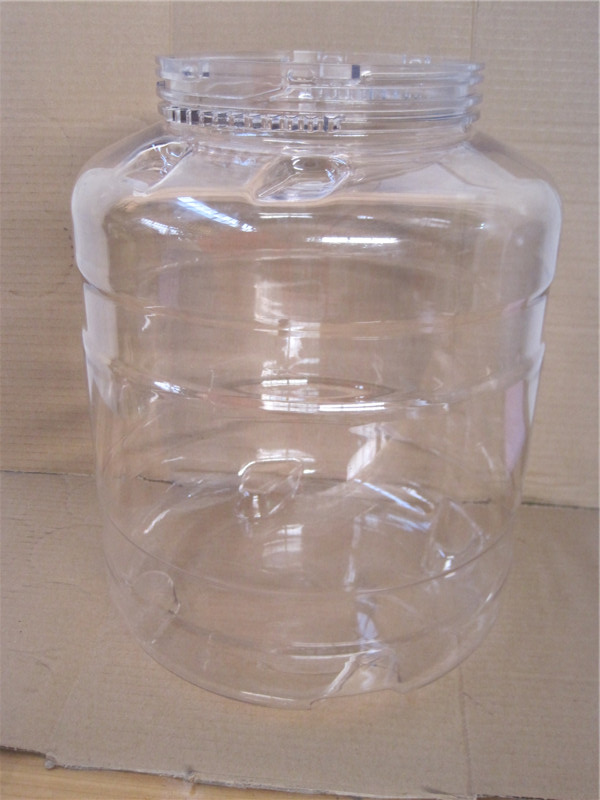

 11L_PC_Jar_1 Produced by Customerized IBM Machine WIB-65 |

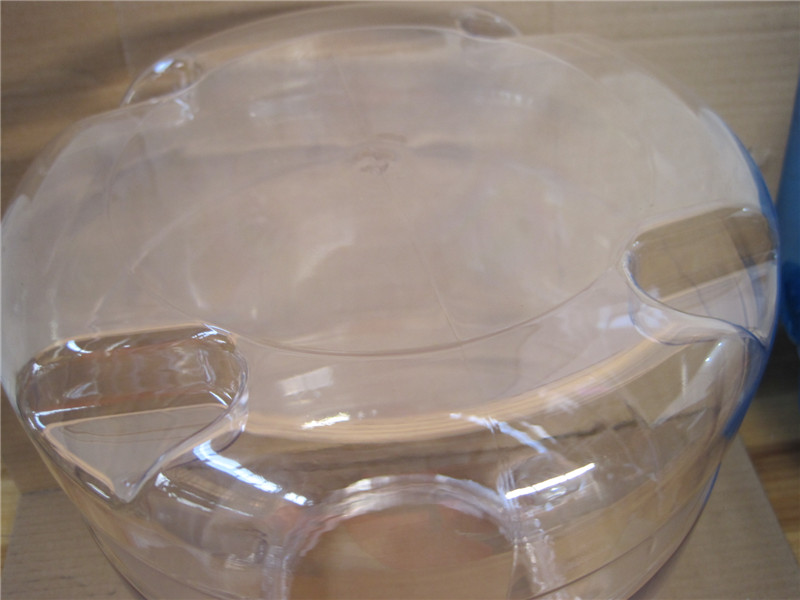

 11L_PC_Jar_2 Produced by Customerized IBM Machine WIB-65 |
|

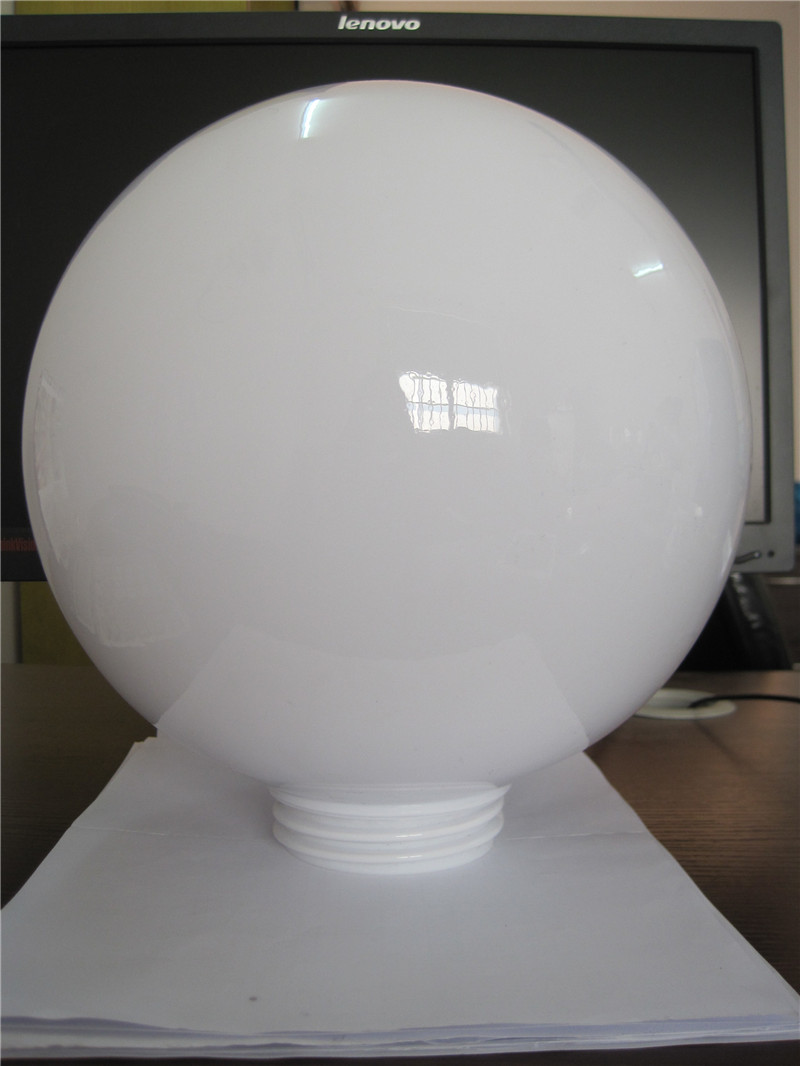

 250mm_PMMA_Lampshade Produced by Customerized IBM Machine WIB-65 |

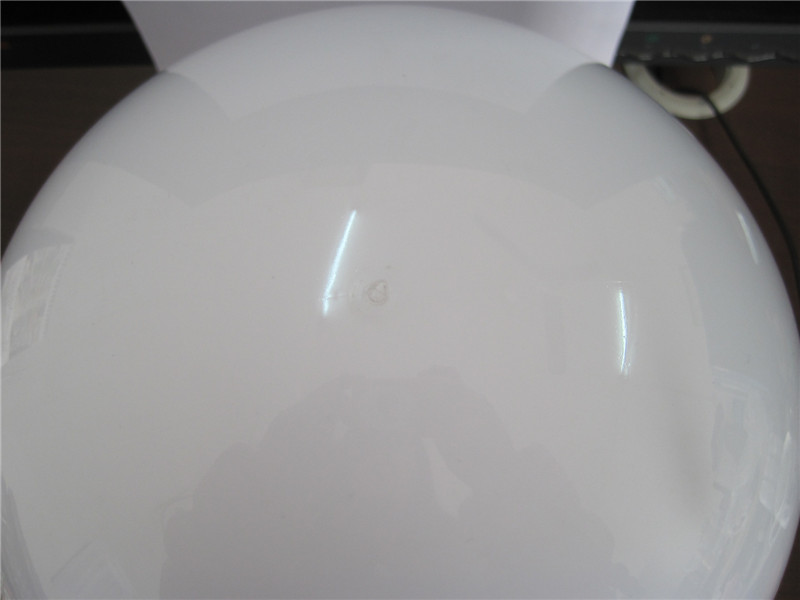

 250mm_PMMA_Lampshade Produced by Customerized IBM Machine WIB-65 |
 Plastics Injection Blow Molding (IBM) Machine WIB-65 Picture b |

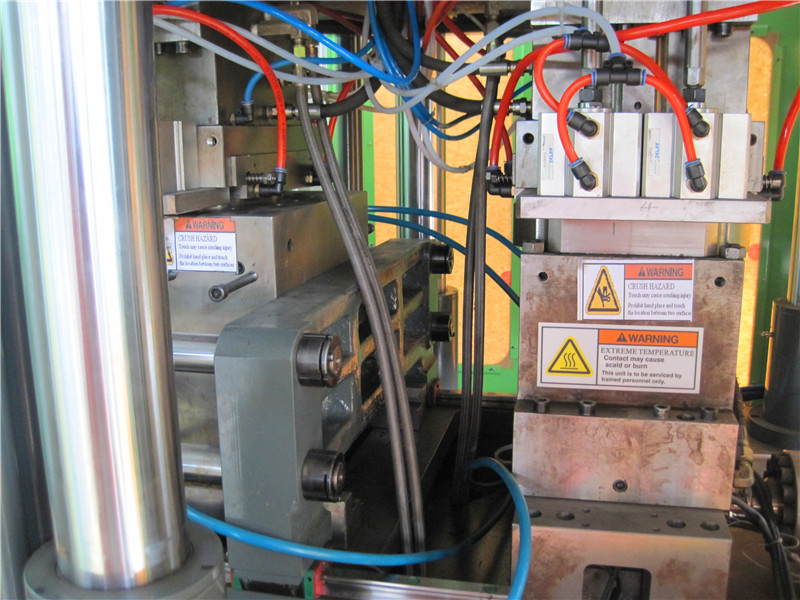

 Plastics Injection Blow Molding (IBM) Machine WIB-65 Picture c |

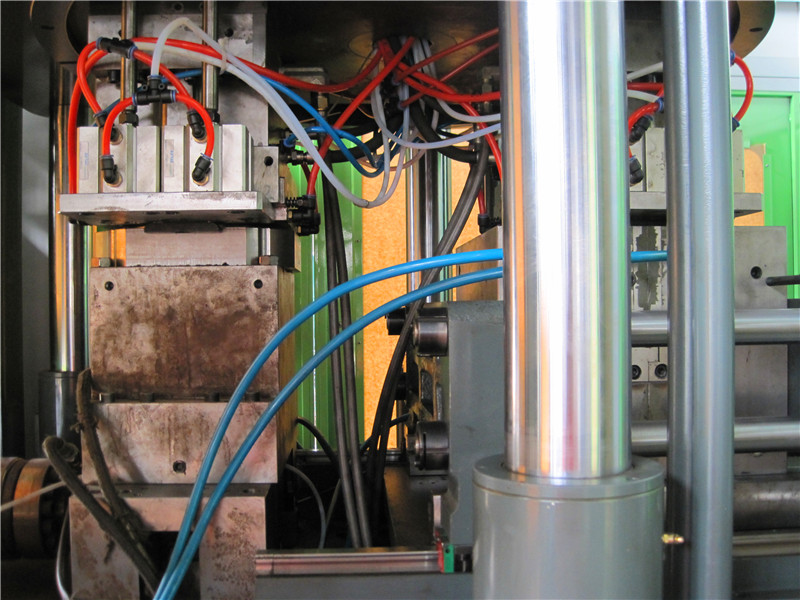

 Plastics Injection Blow Molding (IBM) Machine WIB-65 Picture d |

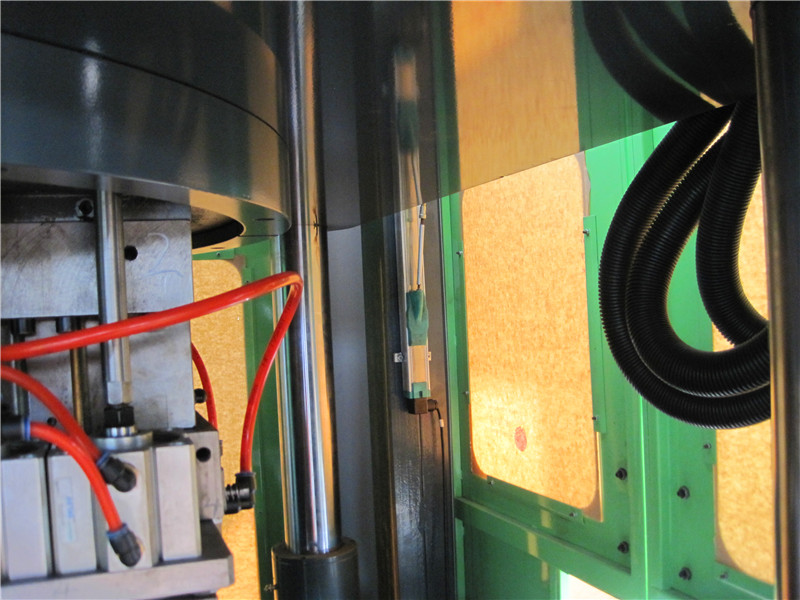

 Plastics Injection Blow Molding (IBM) Machine WIB-65 Picture e |

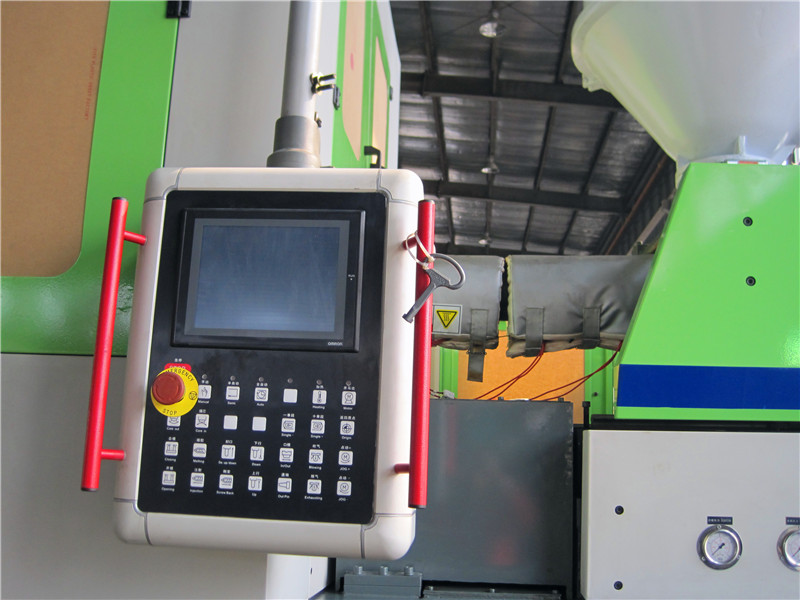

 Plastics Injection Blow Molding (IBM) Machine WIB-65 Picture f |

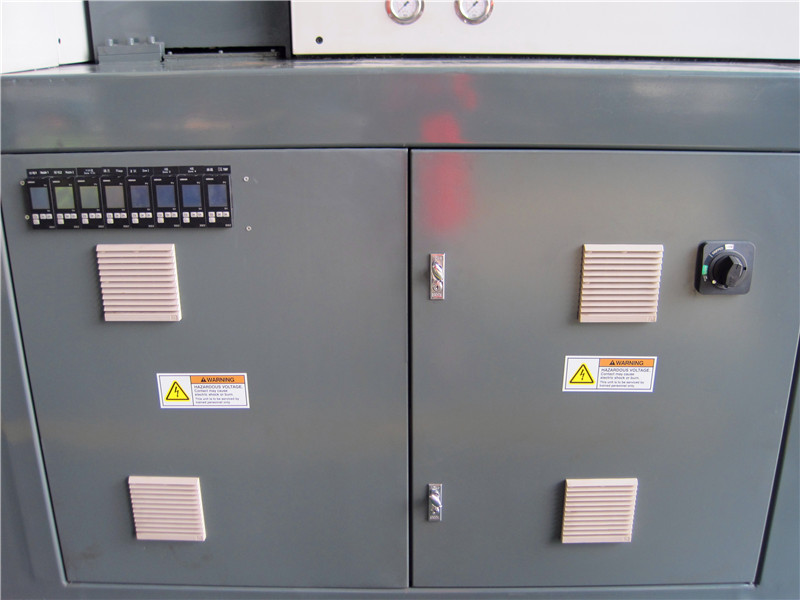

 Plastics Injection Blow Molding (IBM) Machine WIB-65 Picture g |

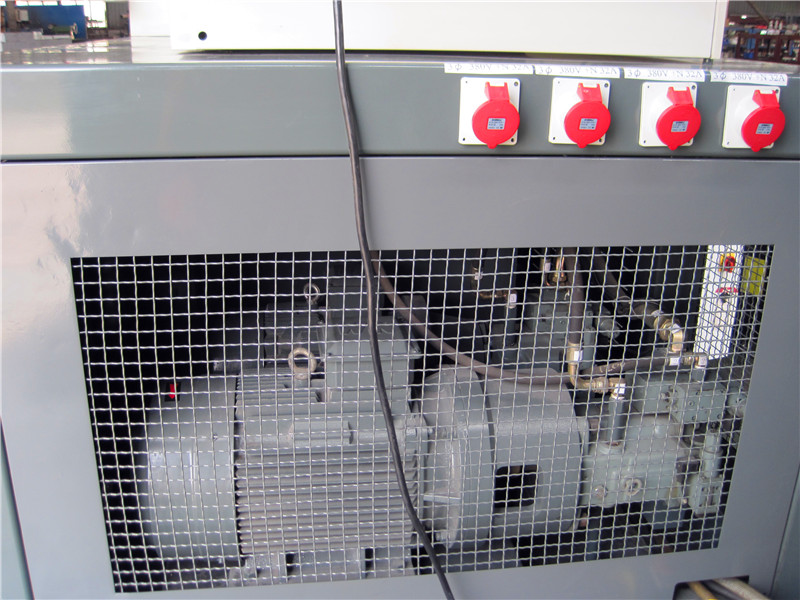

 Plastics Injection Blow Molding (IBM) Machine WIB-65 Picture i |

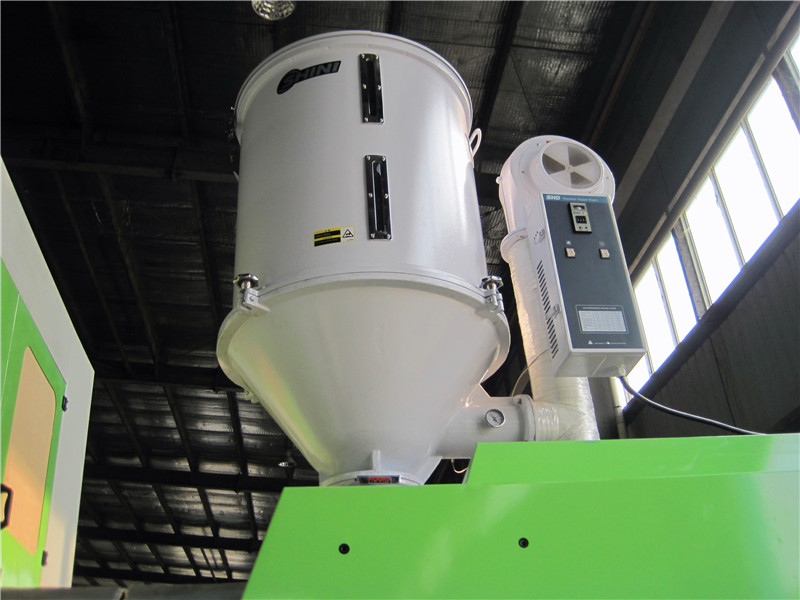

 Plastics Injection Blow Molding (IBM) Machine WIB-65 Picture m |
Components List of Big Automatic Plastics Injection Blow Molding (IBM) Machinery WIB-65
No |
Item |
Brand |
1 |
Variable Pump | YUKEN |
2 |
Hydraulic Valve | YUKEN |
3 |
Seal Ring | HALLITE |
4 |
Hydraulic Oil Motor | Intra-Italia |
5 |
Air Combination | SMC |
6 |
Air Valve | SMC |
7 |
Air Cylinder | AIRTAC |
8 |
PLC | OMRON |
9 |
Rotation Servo Motor | OMRON |
10 |
Reducer | SHIMPO |
11 |
Low-Voltage Electrical Components | Schneider |
12 |
Temperature Controller | OMRON |
| The above elements are only for reference. | ||
