Plastic Extrusion Blow Molding Machines
Made in China

    Plastic Extrusion Blow Molding Machines are also called Plastic Blow Moliding Machines, which are different from Plastic Injection Blow Molding Machines.


Plastic Extrusion Blow Molding Machines
Large FT Series


Plastic Extrusion Blow Molding Machine
Large FT Series
01

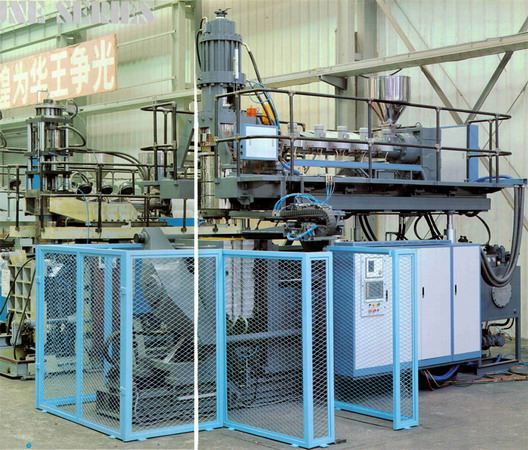

Plastic Extrusion Blow Molding Machine
Large FT Series
02

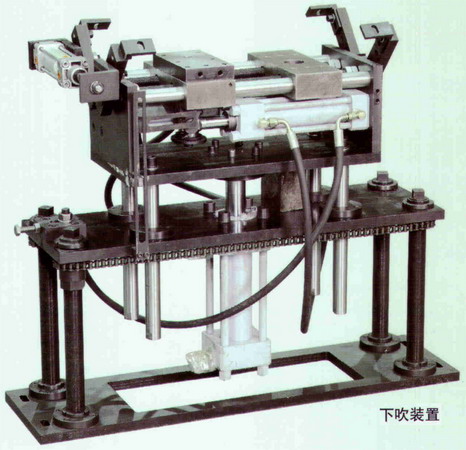

Plastic Extrusion Blow Molding Machine
Large FT Series
Downwards Blowing Device

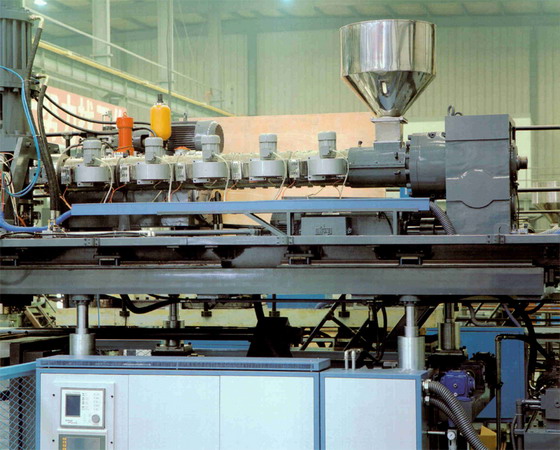

Plastic Extrusion Blow Molding Machine
Large FT Series
Extrusion System

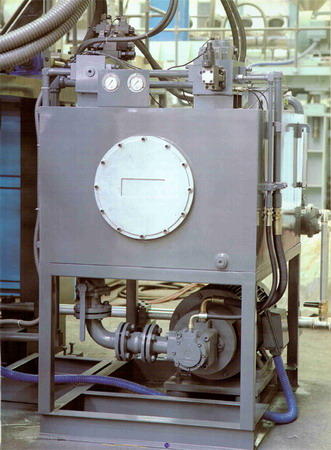

Plastic Extrusion Blow Molding Machine
Large FT Series
Hydraulic Pressure System

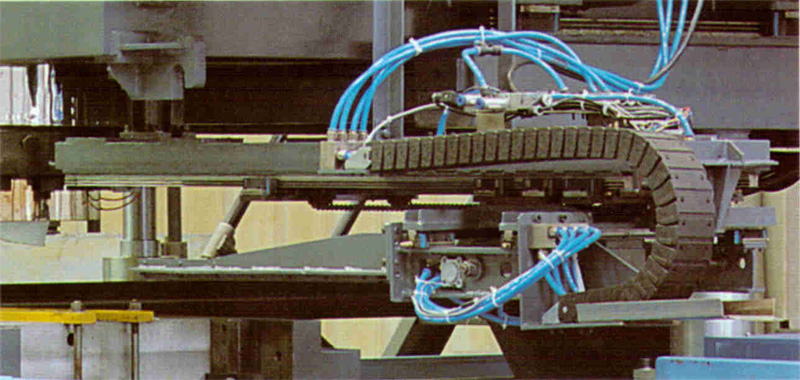

Plastic Extrusion Blow Molding Machine
Large FT Series
Mechanical Hand

Plastic Extrusion Blow Molding Machine
Large FT Series

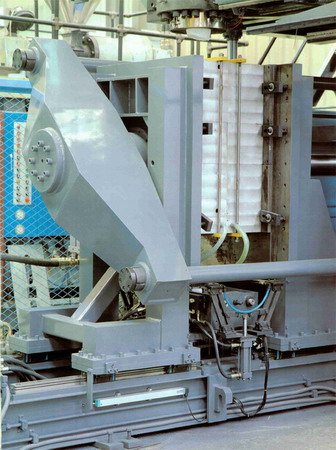

Mould Clamping System

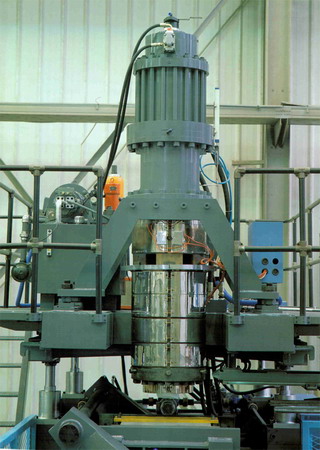

Plastic Extrusion Blow Molding Machine
Large FT Series
Mould Head System

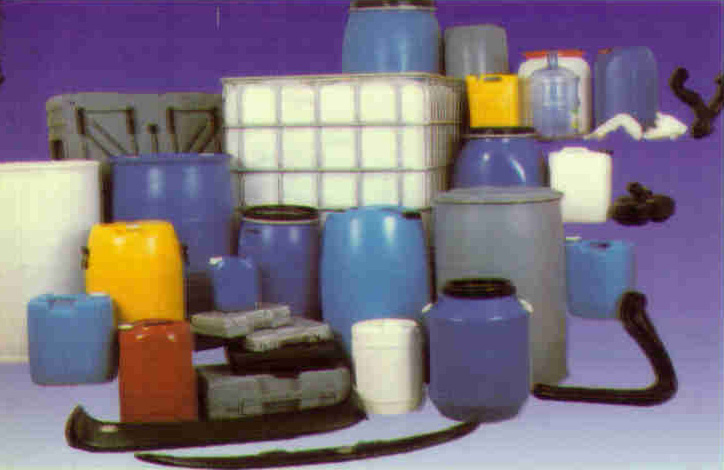

Plastic Extrusion Blow Molding Machine
Large FT Series
Products 01
Plastic Extrusion Blow Molding Machine
Large FT Series
Products 02

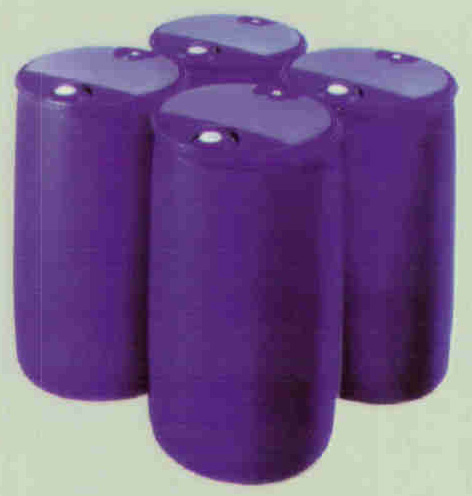

Plastic Extrusion Blow Molding Machine
Large FT Series
Products 03

GO TO TOP

Plastic Extrusion Blow Molding Machines
Large FT Series

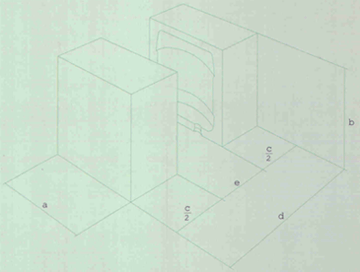

Mould Size
Mould Sizes Codes

Type
FT350-90
FT550-100
FT850-120
Mould Plate Height, mm
950
1100
1400
Mould Plate Width, mm
900
1100
1300
Max. Distance of Mould Plate, d max. mm
1050
1400
1650
Min. Distance of Mould Plate, d min. mm
400
600
650
Mould Opening Stroke, e mm
650
800
1000
Mould Width, a max. mm
700
900
1100
Mould Height, b max. mm
950
1100
1400
Mould Thickness, c min. mm
420
640
700
Max. Product Volume, Liters
60
120
220

GO TO TOP

Plastic Extrusion Blow Molding Machines
Large FT Series
Technical Parameters

Item Description
FT350-90
FT550-100
FT850-120
Mould Clamping System Max. Product Volume, L
60
120
220
Mould Clamping Force, KN
350
550
850
Mould Plate Opening Stroke, mm
400-1050
600-1400
650-1650
Mould Plate Size, Width x Height, mm
950x850
1100x1100
1300x1400
Mould Moving Stroke, mm
650
800
1000
Mould Moving Speed, mm/sec.
320
250
250
Extruder System Screw Diameter, mm
90
100
120
Length/Diameter Ratio, L/D
30
30
30
Screw Rotate Rate, rev/min
9-87
9-87
6-60
Plasticizing Capacity, PE, Kg/h
180
270
400
Driving Power, KW
55/75
75/90
132
Heating Power, KW
22
27
43
Storage Container's Mould Head Storage Volume, dm3
8
12
20
Mould Head Heating Power, KW
22
30
42
Mould Head Heating Zone, Sections
4
4
5
Annular Diameter, mm
100-300
100-350
170-380
Max. Raw Materials Ejection Speed, Kg/sec.
1.5
1.5
1.5
Ejection Pressure, MPa
8
8
8
Power Consumption Drive Power, KW
100/120
124/139
177
Heating Power, KW
44
57
85
General Assembly Power, KW
144/164
181/196
274
Average Energy Consumption, KW/h
82/93
100/108
152
Air Supply Pressure, MPa
0.6
0.6
0.6
Air Consumption, M3/h
30-50
50-60
70-90
Cooling Water Pressure, MPa
0.3
0.3
0.3
Cooling Water Flux, M3/min
0.4
0.4
0.6

GO TO TOP

Plastic Extrusion Blow Molding Machine
Large Series


Plastic Extrusion Blow Molding Machine

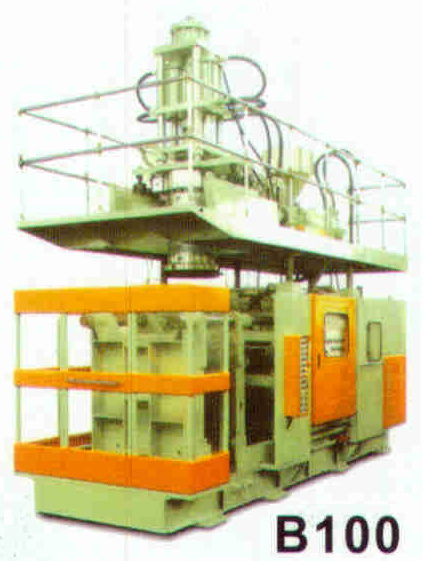

Large Series B100
Plastic Extrusion Blow Molding Machine
Large Series B75

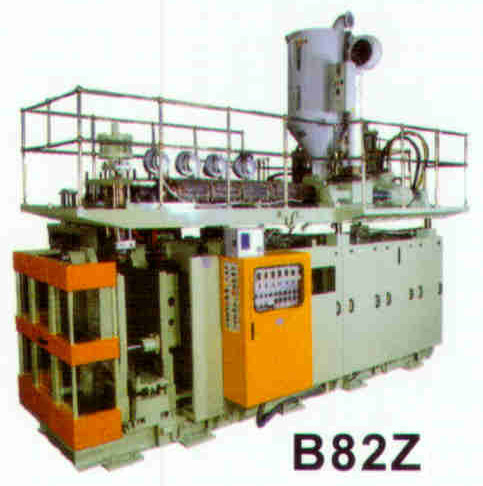

Plastic Extrusion Blow Molding Machine
Large Series B82Z

Plastic Extrusion Blow Molding Machine

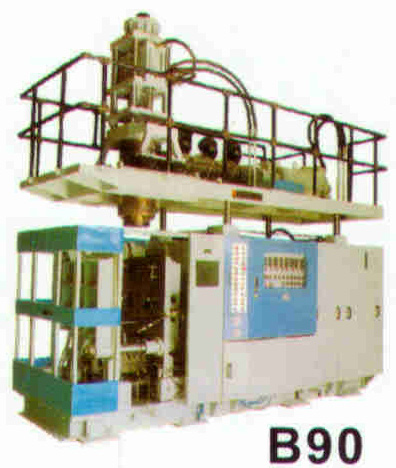

Large Series B90

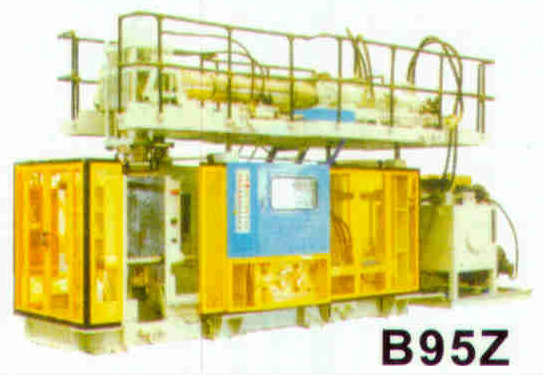

Plastic Extrusion Blow Molding Machine
Large Series B95Z
Plastic Extrusion Blow Molding Machine

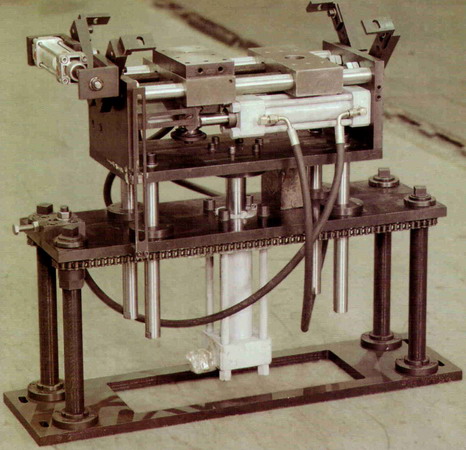

Large Series Blowing System 01

Plastic Extrusion Blow Molding Machine
Large Series Blowing System 02

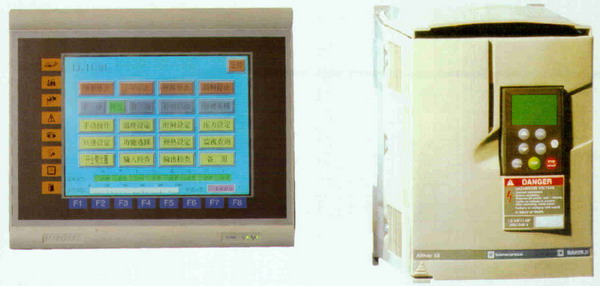

Plastic Extrusion Blow Molding Machine
Large Series Electrical Control System
Human Computer Interface
Plastic Extrusion Blow Molding Machine

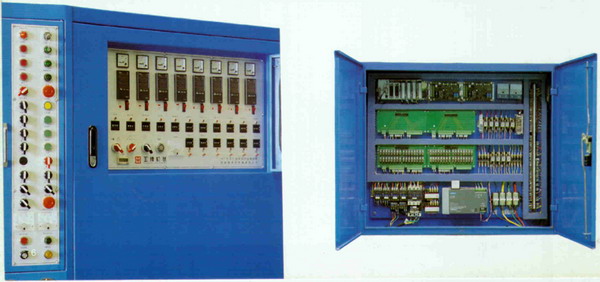

Large Series Electrical Control System
PLC Push Button Panel

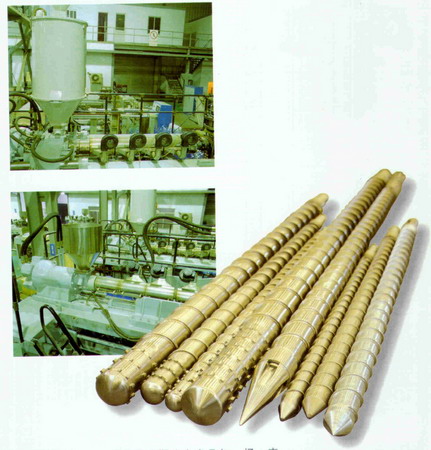

Plastic Extrusion Blow Molding Machine
Large Series Extrusion System
Professional Screws 01

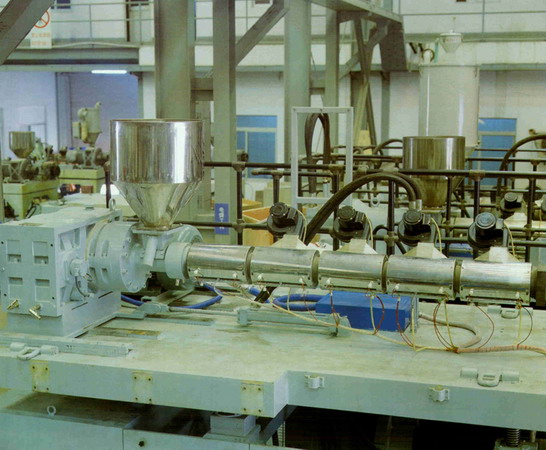

Plastic Extrusion Blow Molding Machine
Large Series Extrusion System
Professional Screws 02

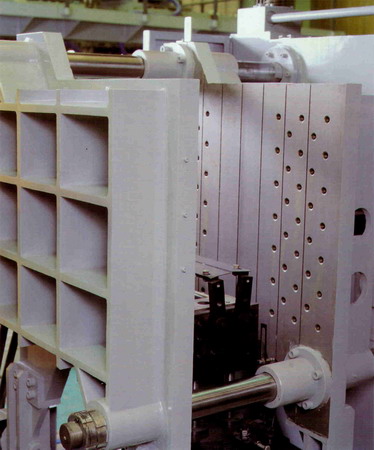

Plastic Extrusion Blow Molding Machine
Large Series Mould Clamping System
Dual Tie Rods Four Tie Rods 01

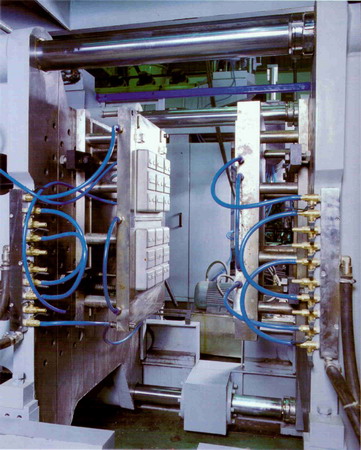

Plastic Extrusion Blow Molding Machine
Large Series Mould Clamping System
Dual Tie Rods Four Tie Rods 02

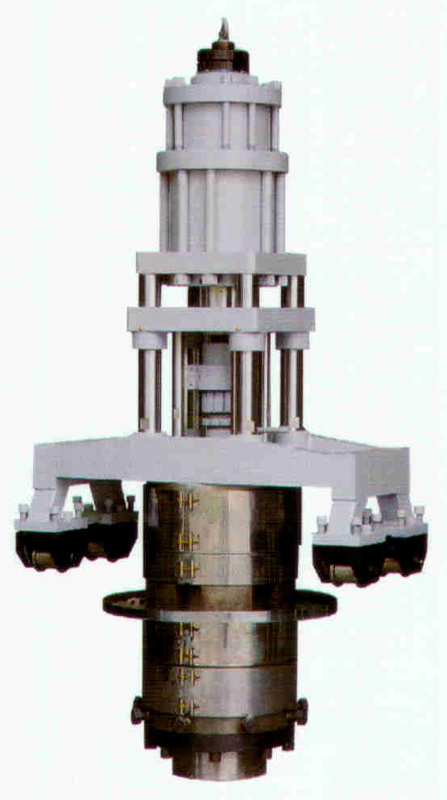

Plastic Extrusion Blow Molding Machine
Large Series Mould Head System
01

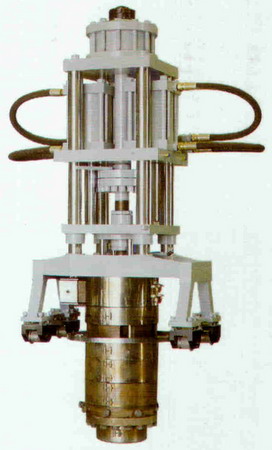

Plastic Extrusion Blow Molding Machine
Large Series Mould Head System
02

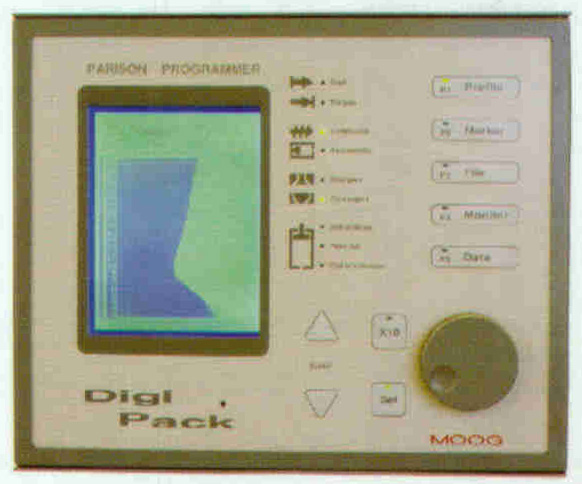

Plastic Extrusion Blow Molding Machine
Large Series Mould Head System
Control Panel

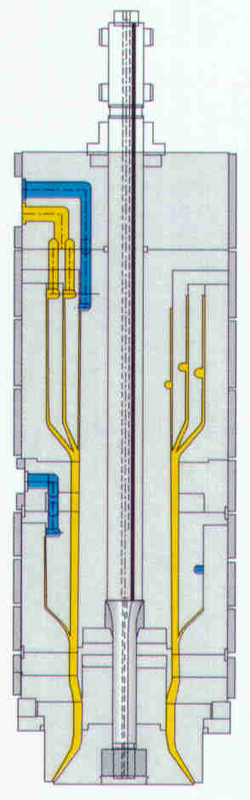

Plastic Extrusion Blow Molding Machine
Large Series Mould Head System
Drawing 01

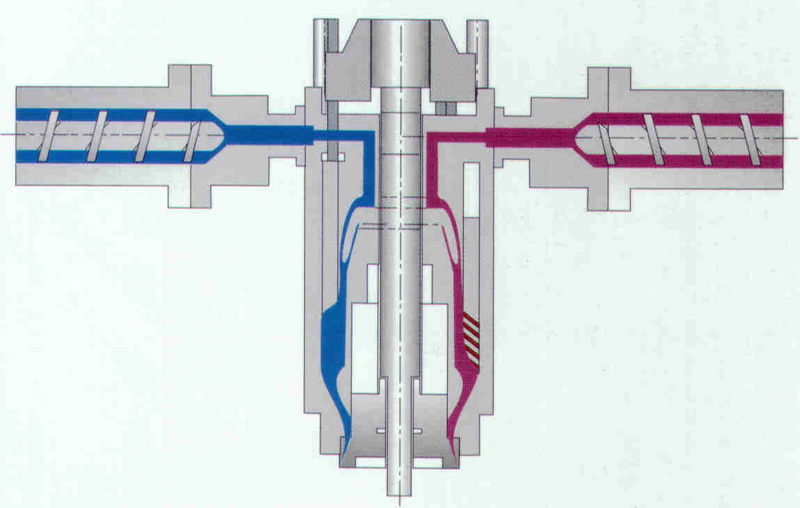

Plastic Extrusion Blow Molding Machine
Large Series Mould Head System
Drawing 02

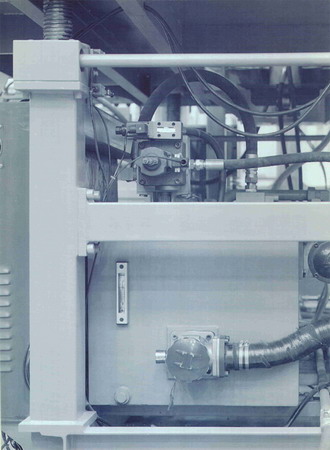

Plastic Extrusion Blow Molding Machine
Large Series
Part View

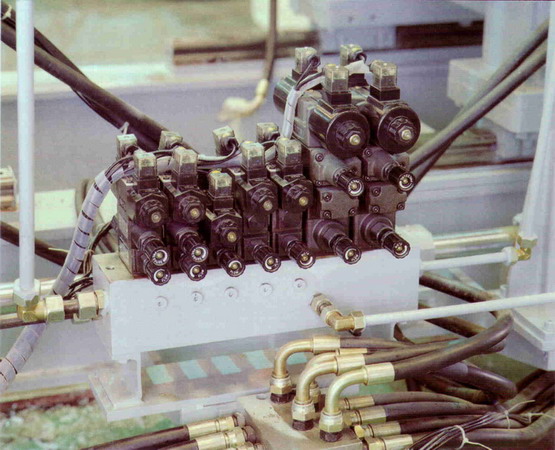

Plastic Extrusion Blow Molding Machine
Large Series
Proportional Hydraulic Pressure System 01
Plastic Extrusion Blow Molding Machine
Large Series

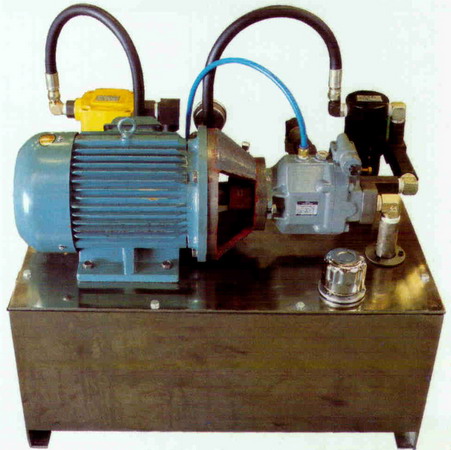

Proportional Hydraulic Pressure System 02

Plastic Machining
Graduate School Training Center





GO TO TOP

Plastic Extrusion Blow Molding Machine
Large Series
Peripheral Equipments

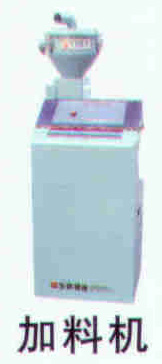

Plastic Extrusion Blow Molding Machine
Large Series Charger Filling Machine
Plastic Extrusion Blow Molding Machine

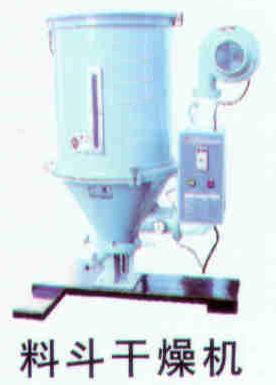

Large Series Charging Bucket Drier
Plastic Extrusion Blow Molding Machine
Large Series
Crusher

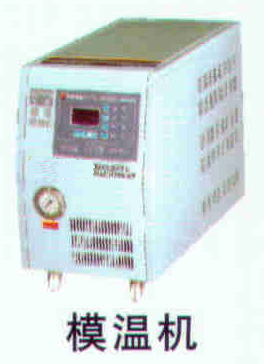

Plastic Extrusion Blow Molding Machine
Large Series Mould
Temperature Control Machine
Plastic Extrusion Blow Molding Machine
Large Series Water Cooling Machine

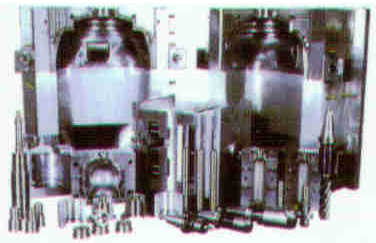

Plastic Extrusion Blow Molding Machine
Large Series
Mould 01

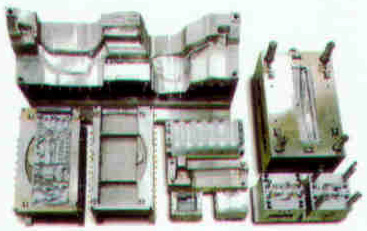

Plastic Extrusion Blow Molding Machine
Large Series
Mould 02

GO TO TOP

Plastic Extrusion Blow Molding Machine
Large Series
Manufacturer's Profile

Manufacturer's Target: To be the largest manufacturer for extrusion blow molding machines in the world.
Market Share in 2000: 56%

This manufacturer has more than 30 years' manufacturing experiences with its outstanding achievement of thousands of sets of machines sold to customers domestic and abroad.
This manufacturer is the first factory in China extrusion blow molding machine market who gets ISO9001 2000 quality authentication system.
This manufacturer is the first factory in China plastic industry who successfully executes USA SYMIX ERP(Enterprise Resource Planning).

Storage Container Mould Head: Different storage capacities are optional according to different products' needs.
Quick Ejection Mould Head: Suitable for high viscosity raw materials such as PC(Polycarbonate).
Multi Mould Heads: Suitable for products with colors difference requirements, or for products with gas obstruct, gas tightness requirements, or for products adopting waste scrap as interlayer.
Dual Colors Mould Head: Suitable for decoration products.
Preform Control Device: To insure the requirements on products' thickness precision.
Frequency Conversion Timing Drive: Suitable for products with stable production cycles, such as barrel, kettle, etc.
Oil Hydraulic Motor Intermittently Drive: Suitable for products which need manual demoulding, or with changeful production cycles, such as toolbox, autocar fittings.

The function of screws is specialized and professional. For different raw materials of products, we offer an optimal design of screws.

Human Computer Interface: Suitalbe for mass production of products, the control system is highly integrated, stable, reliable, easy to maintainance.
PLC Push Button Panel: Suitable for diversified products, its advanced PLC control system makes manual operations convenient.
Proportional Hydraulic Pressure Control: To make actions' directions changing quick and softly. The hydraulic actions have complete functions to meet with diversified assistant functions. Independent oil supply could guarantee servo valves' precision.
Dual Tie Rods: Suitable for production of middle, small products. It is convenient for taking out products and replacing moulds.
Four Tie Rods: Suitable for production of large products. Its average mould clamping force could guarantee joint close's precision of products.
Diversified Air Blowing Modes: Top Blowing, Bottom Blowing, Side Blowing for different products.
Assistant Functions for Air Blowing: Envelopment, Proping up materials, Rotation demoulding are designed according to products' characteristics.

GO TO TOP

Plastic Extrusion Blow Molding Machines
Large B Series
Technical Parameters

Item Description
B75
B82Z
B90A
B90B
B95Z
B100A
B100B
Mould Clamping System Clamping Force, KN
190
160
245
245
250
490
490
Max.Product Volume, Liters
25
20
50
50
-
120
120
Mould Plate Size, Width/Height, mm
720x600
720x800
880x800
880x800
880x940
1020x1060
1020x1060
Max.Mould Size (WxH), mm
440x600
380x650
520x800
520x800
610x820
800x1060
800x1060
Distance of Mould Plates Close/Open, mm
250/700
250/700
400/900
400/900
400/900
350/1200
350/1200
Mould Moving Stroke, mm
450
450
500
500
500
850
850
Empty Loop Circulation Time, s
8
8
9
9
9
11
11
Extruder System Screw Diameter, mm
75
82
90
90
95
100
100
Screw Length/Diameter, L/D Ratio
25
25
22
25
22
22
25
Drive Method
Frequency
Conversion
Electric
Machinery
Oil
Hydraulic
Motor
Frequency
Conversion
Electric
Machinery
Oil
Hydraulic
Motor
Frequency
Conversion
Electric
Machinery
Max. Screw Rotate Speed, rev/min
92
75
84
67
60
73
93
Plasticizing Capacity (HDPE), Kg/h
90
-
120
150
150
140
180
Heating Parameter, Sections
4
5
4
4
4
5
5
Storage Container's Mould Head Nominal Volume, Liters
3.5
1.85
5.5
5.5
3.2
12
12
Ejection Pressure, MPa
8
-
8
8
-
8
8
Heating Parameters, Sections
4
4
4
4
4
5
5
Max. Mould Annular Diameter, mm
150
78
300
300
150-300
400
400
Drive and Heating Power Hydraulic Pump, KW
37
45
45
37
37
55
45
Extruder Power, KW
30
-
-
45
22
-
75
Extrusion System Heating Power, KW
18.4
18.2
21
25
20
22.3
30.3
Extrusion System
Water Cooling Blower Fan, W
4x180
-
3x180
5x180
-
5x180
5x180
Mould Head Heating Power, KW
18
8
19
19
-
24.1
24.1
General Assembly Power, KW
103
70
85
126
80
101
175
Average Energy Consumption, KW
40
45
49
54
40
65
70
Air Supply Pressure, MPa
0.6
0.8
0.6
0.6
0.6
0.6
0.6
Air Supply Flux, M3/min
0.4
0.4
1
1
0.4
1
1
Cooling Water Pressure, MPa
0.3
0.3
0.3
0.3
0.3
0.3
0.3
Cooling Water Flux, M3/min
0.3
0.3
0.4
0.4
0.2
0.4
0.4
Machine Data Machine Main Body Length, mm
4100
4800
4900
4900
6900
5700
5700
Machine Main Body Width, mm
3100
2300
3800
3800
2900
4100
4100
Machine Main Body Height, mm
3600
4400
4300
4300
3300
4500
4500

GO TO TOP

Components List of Large FT Series, Large B Series

From this components list of Large Series EBM Machines, you could understand why FT, B series machines have different pricing levels.

Model
Components

Large FT Series
(+75 Large Series)
Large B Series
(Large Series)
Button Panel Type

Large BW Series
(Large Series)
Human-Computer Interface
PLC Austria B&R Control System Japan Panasonic FP1 C72 Japan Mitsubishi
Human-Computer Interface N/A N/A Taiwan Hitech 10.4' Color
Frequency Converter Finland ABB France TE (ATV28/58) Japan Mitsubishi/France TE/UK Eurotherm
Temperature Controller Austria B&R PCC + Control Module Japan Omron PLC Temperature Control
Professional Temperature Measuring Module
Low Voltage Apparatus France TE France TE France TE
Electric Relay Japan Omron/Panasonic Electric Japan Omron/Panasonic Electric Japan Omron/Panasonic Electric
Switch Button N/A Joint Venture HanDing Switch Button N/A
Stroke Switch Europe Electronic Ruler Joint Venture Stroke Switch Europe Electronic Ruler
Output Circuit Austria B&R Control System Transistor Output Panel Omron Electric Relay
Timed Preheating With N/A With
Remote Temperature Control With N/A With (Optional)
Electric Motor Germany ABB China Beide-Simens SSML China Beide-Simens SSML
Oil Pump Germany Rexroth Japan Yuken Japan Yuken
Hydraulic Valve Germany Rexroth Japan Yuken Japan Yuken
Pipe Joint Germany Park Joint Venture Factory Joint Venture Factory
Hydraulic Hose Europe Origin Europe Origin Europe Origin
Airtight Packing

Germany Busak+Shamban

 Aili (Europe Origin) Aili (Europe Origin)
Hydraulic Accessories Germany Stauff Leemin Leemin
Pneumatic Component Germany Festo Germany Festo Complete Set (Taiwan)
Thickness Controller Austria B&R Controller
Germany Bosch Hydraulic Valve		 MOOG (Optional) MOOG (Optional)



site search by freefind advanced

  RPM - Rimpex - Logo RPM - Pimpex - Logo RPM - Mimpex - Logo Loowi artToys Logo 金宮門<sup>®</sup>美饗天下
rubberimpex.com plasticimpex.com mouldimpex.com Loowi.com GoldenPalaceGate.com
  rubberplasticmould.com ibmmachine.com
 moldimpex.com
 iLoowi.com GoldenPalaceGate.cn
rpm.mobi isbmmachine.com masks machines   jindianmen.cn
wastetiresrecycle.com printing-machines.cn hot-stamping-machines.cn hot-stamping-machines.com logistics-forklifts.cn

Copyright © Pimpex@RPM Since 2002 www.gzqlh.com Sitemap XIAMEN RPM IMP.&EXP. CO.,LTD.
主站蜘蛛池模板： 莱西市| 延庆县| 勃利县| 武功县| 凤庆县| 闽清县| 彭阳县| 磐石市| 舟山市| 抚州市| 明溪县| 鲜城| 井陉县| 手机| 台中县| 肥乡县| 射洪县| 山东| 清新县| 赤城县| 田阳县| 凤凰县| 大埔县| 茶陵县| 开封县| 聂荣县| 彭州市| 孝感市| 象山县| 安康市| 扶沟县| 苍南县| 普宁市| 玉田县| 宜昌市| 陈巴尔虎旗| 鹤峰县| 南平市| 镇沅| 增城市| 波密县|
