Pimpex@RPM - Xiamen RPM Imp.&Exp. Co.Ltd.

Pimpex Plastic supplys Automatic Plastic Injection Stretch Blow Molding (ISBM) Machines and ISBM molds from China. The long shelf life requirement on beer & juice boosts the development of PET bottles' barrier technology (permeability resistance). ISBM technology could make PET polymer molecular chains arranged in axial direction & radial direction, thus PET bottles could gain more better mechanical properties, permeability resistance, optical properties, chemical medicine resistance performance. Plastics like PET, PVC, PP, PAN are all suitable for ISBM production. PET bottles have been industrialized since 1976 in carbonated beverages, wine alcoholic beverages (beer, grape wine), juice, mineral water, cooking edible oil, condiments (soy sauce, fruit jam, vinegar), medicines (eyewash eyedrop, syrup), cosmetics, pesticides and detergents, etc.

Generally speaking, for PET bottles bigger than 2 liters, we could choose PET materials with IV (intrinsic viscosity, inherent viscosity) value between 70~75ml/g, and for PET bottles less than 2 liters, we could choose PET materials with IV value between 75~85ml/g, thus we could gain PET bottles with higher mechanical properties and better optical properties.

Automatic One Step Technology
Four Working Stations
High Efficiency
Energy Saving
Low Noise
PE, PP, PS, SAN, PMMA, PC, PET
Components List of ISBM Machines

    This manufacturer always works towards perfect machines quality, sincere services, onging innovations.
    These automatic plastic injection stretch blow molding (ISBM) machines have been researched & developped by the manufacturer's major technicians/engineers with their actual operations experiences on imported ISBM machines.
    This manufacturer learns & adopts latest international advanced ISBM technology. It adopts unique 4 stations ISBM mold core cycle method to efficiently solve containers' wall thickness problem and containers' patterns forming problem. 1st station for injecting preforms, 2nd station for heating preforms, 3rd station for stretching and blowing bottles, 4th station for demolding, 4 stations running continuously in cycles automatically.
    The containers made by these ISBM machines have perfect bottles' mouthes and screws, higher strength. These ISBM machines have advantages of high output capacity, energy saving. They are optimal machines for factories who want to produce hollow containers.

Production Process of Automatic Plastic Injection Stretch Blow Molding (ISBM) Machines:

Injection Stretch Blow Molding Machines
ISBM Machines
Station #1 Injecting Preform

Injection Stretch Blow Molding Machines
ISBM Machines
Station #3 Stretch Blow Molding

Injection Stretch Blow Molding Machines
ISBM Machines
Station #4 Demolding

Station #1 Injection Molding: The preforms are injected out by main machine, the molding procedure adopts hot runner technology to improve the service efficiency of raw materials.
Station #2 Stretch Blow Molding: The preforms are moved together with the heatretaining mould cores to the stretch blowing mould, then high pressure compressed air is blown into inside of preform to form final design shape of containers.
Station #3 Demolding: The finished containers are demolded from ISBM mould at mouth position by blowing air.

Characteristics of Automatic Plastic Injection Stretch Blow Molding (ISBM) Machines:

Adopt one step four stations design, high efficiency, simple structure, easy operations
Automatically running, non edge flashes, non gates, good quality of various containers
Suitable for all kinds of plastics such as PC, PP, PE, PET, PS, etc.
Adopt advanced hydraulic & electric control system, time saving, energy saving
Compact machine structure, small roomage needed.
Special requirements from clients are acceptable by our engineers.

Wide Application Fields of Automatic Plastic Injection Stretch Blow Molding (ISBM) Machines:

Containers for baby, infant, various polycarbonate PC baby bottles
Drinking water conStainers
Foods containers
Pharmaceutical containers
Cosmetic containers

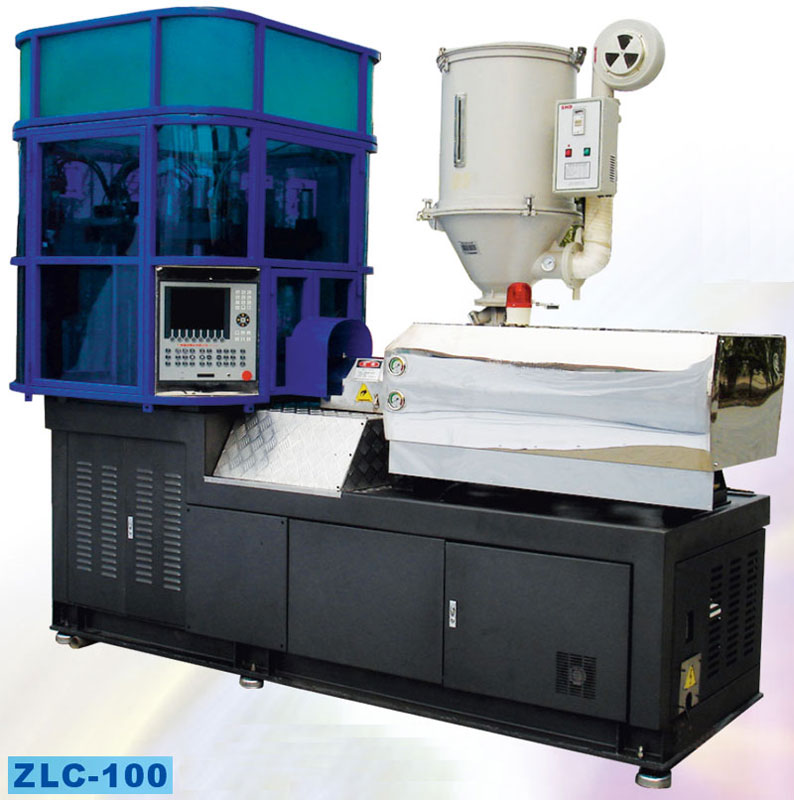

Automatic Injection Stretch Blow Molding Machine ISBM Machine Model ZLC100	Automatic Injection Stretch Blow Molding Mould ISBM Mould Model ZLC100 Preform	Automatic Injection Stretch Blow Molding Mould ISBM Mould Model ZLC100 Molding

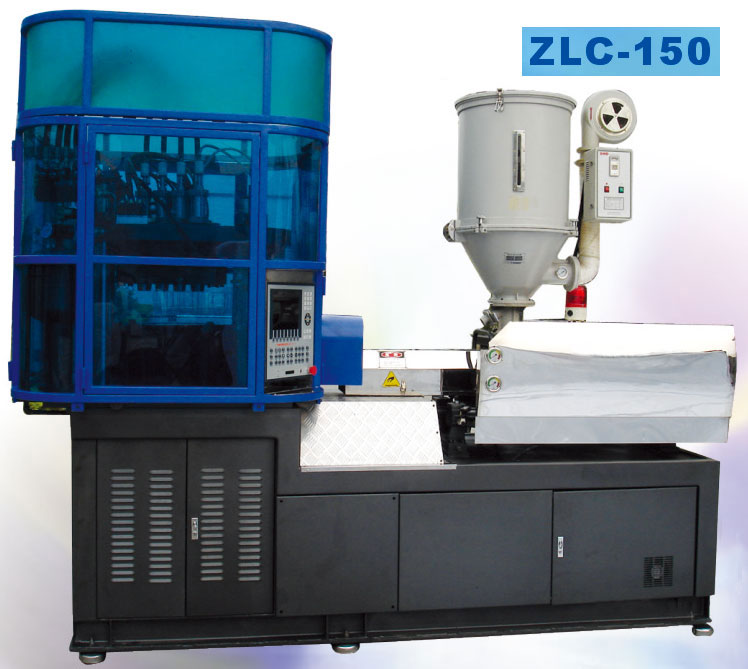

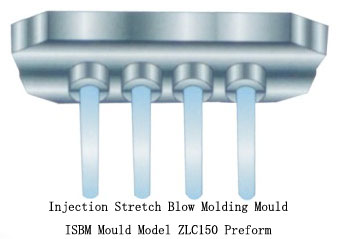

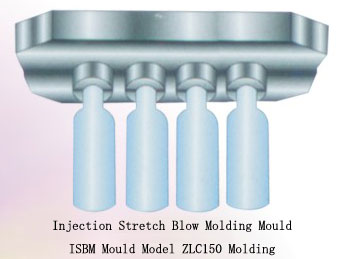

Automatic Injection Stretch Blow Molding Machine ISBM Machine Model ZLC150	Automatic Injection Stretch Blow Molding Mould ISBM Mould Model ZLC150 Preform	Automatic Injection Stretch Blow Molding Mould ISBM Mould Model ZLC150 Molding

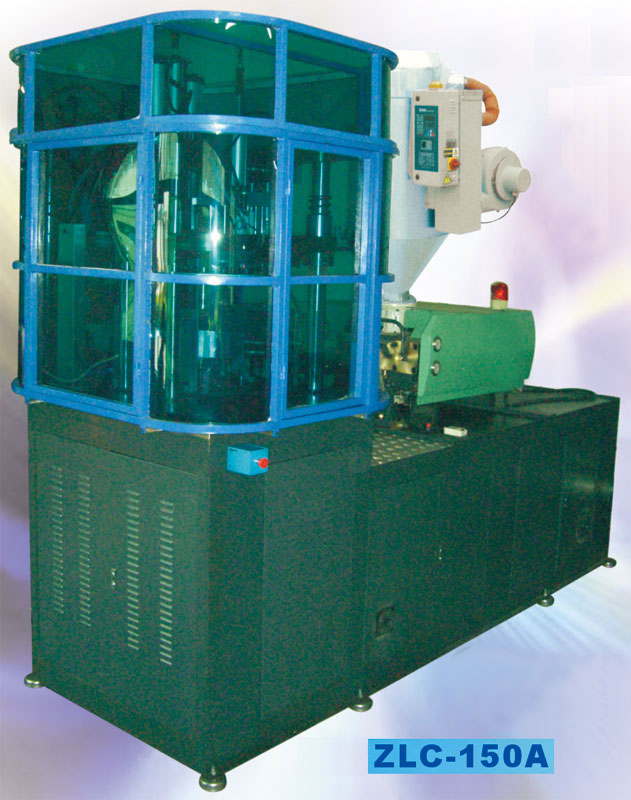

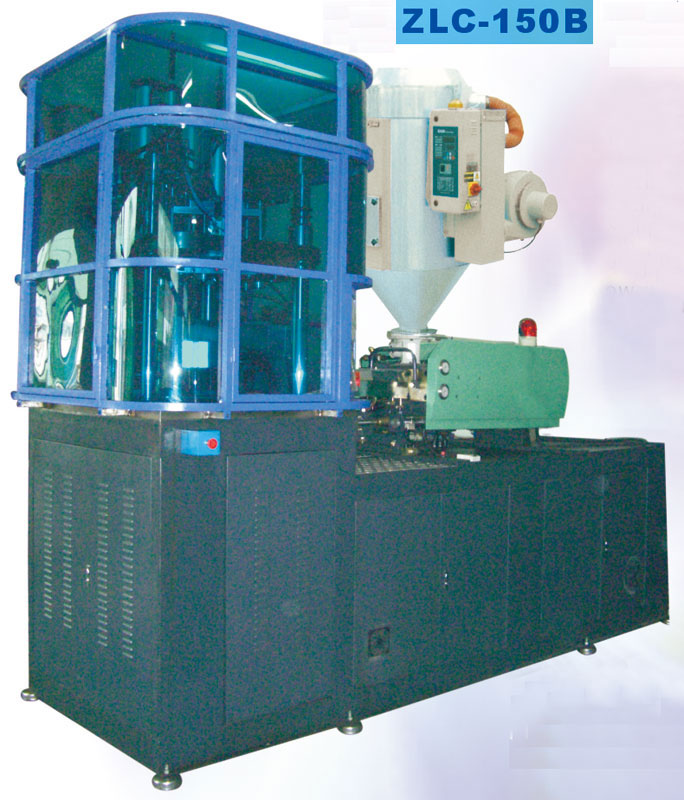

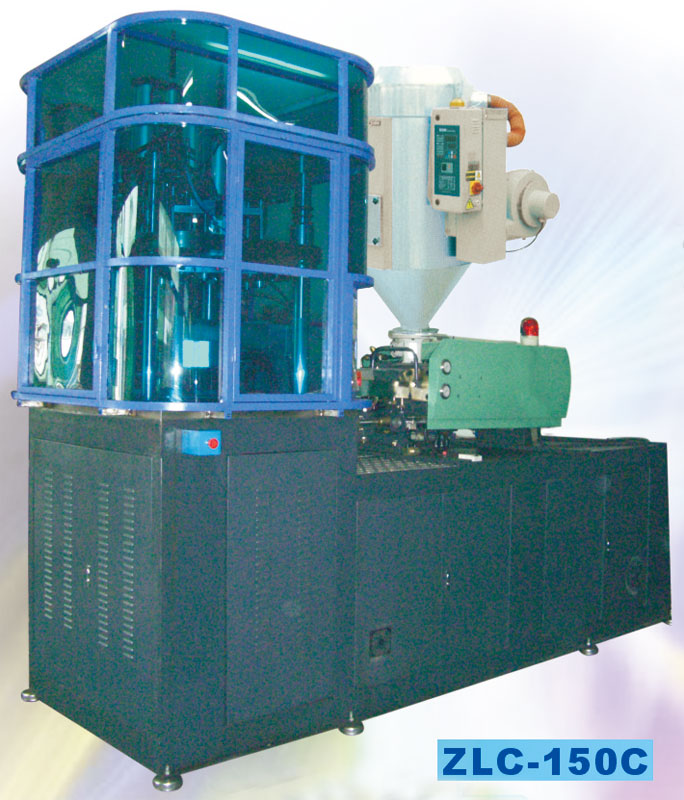

Injection Stretch Blow Molding Machine ISBM Machine Model ZLC150A	Injection Stretch Blow Molding Machine ISBM Machine Model ZLC150B	Injection Stretch Blow Molding Machine ISBM Machine Model ZLC150C
PolyCarbonate Baby Bottles PC Infant Bottles ZLC150A Various PE, PP, PS, SAN, PMMA, PET Containers	PolyCarbonate Baby Bottles PC Infant Bottles ZLC150B Various PE, PP, PS, SAN, PMMA, PET Containers	PolyCarbonate Baby Bottles PC Infant Bottles ZLC150C Various PE, PP, PS, SAN, PMMA, PET Containers

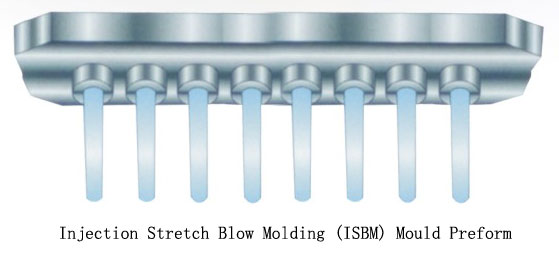

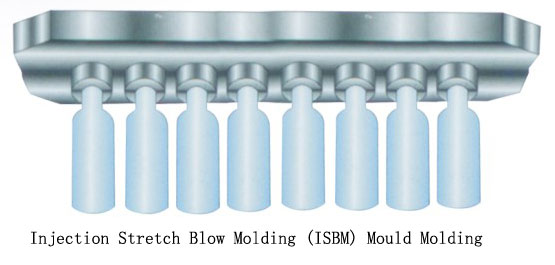

Automatic Injection Stretch Blow Molding Machine ISBM Machine Model ZLC400	Automatic Injection Stretch Blow Molding Mould ISBM Mould Model ZLC400 Preform	Automatic Injection Stretch Blow Molding Mould ISBM Mould Model ZLC400 Molding

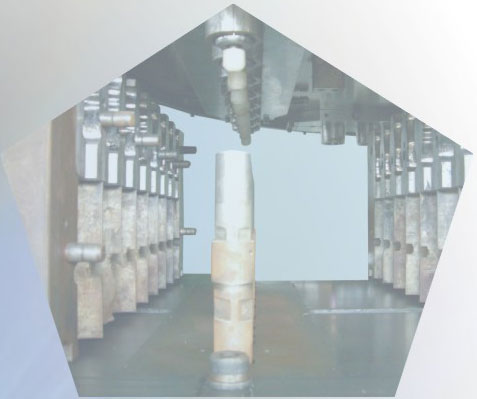

Automatic Injection Stretch Blow Molding Mould ISBM Mould Model ZLC400	Automatic Injection Stretch Blow Molding Machine ISBM Machine Model ZLC400 Computer Control LCD Panel	Injection Stretch Blow Molding Machine ISBM Machine Model ZLC680 Applications

These automatic plastic injection stretch blow molding (ISBM) machines adopt heat preservation technology on mold cores, so they could save energy consumption and shorten cycle time utmost to only 13 seconds per cycle, ISBM machines are high efficient ones. For example:

if we adopt ISBM ZLC100 machine, preform quantity is 2 pcs, then the output capacity per 24 hours could be 24*60*60/13*2=13,000pcs.

if we adopt ISBM ZLC150 machine, preform quantity is 4 pcs, then the output capacity per 24 hours could be 24*60*60/13*4=26,000pcs.

if we adopt ISBM ZLC400 machine, preform quantity is 12 pcs, then the output capacity per 24 hours could be 24*60*60/13*12=79,000pcs.

The manufacturer's design principle for these automatic plastic injection stretch blow molding (ISBM) machines is high output capacity, high efficiency, low energy consumption, easy operations.

Technical Specification of Automatic Plastic Injection Stretch Blow Molding (ISBM) Machines

Item	Unit	ZLC100	ZLC150	ZLC150A		ZLC150B	ZLC150C	ZLC400	ZLC680
Screw Diameter	mm	36	40	36	45	50	Customized Super Large Diameter Extrahigh Abnormity Containers	55	80
Maximum Theoreotical Shot Volume	ml	162	201	183	286	353		427	1808
Preform Quantity	pcs	2	4	4	2	4		8	2
Maximum Diameter of Container	mm	80	80	65	120	80		80	280
Maximum Caliber of Container	mm	42	42	42	55	65		55	100
Maximum Height of Container	mm	220	220	220	220	220		220	500
Injection Clamping Force	KN	100	150	300	300	300		400	680
Mold Opening Switching Stroke	mm	250	250	250	250	250		250	580
Minimum Mold Height	mm	340	380	380	380	380		400	520
Maximum Hydraulic Pressure	MPa	14	14	14	14	14	14	14	14
Power (Motor+Electric Heating)	KW	15+8	20+9.6	20+9.6		20+9.6	20+9.6	25+11	52.5+22.5
Machine Sizes (LWH)	m	31.22.4	3.31.42.6	41.53.4	41.53.4	41.53.4	41.53.4	4.51.83.2	5.52.44.5
Machine Weight	ton	4.5	6.5	7	7	7.5	7.5	11	15
Following technology improvement, we keep the revising right on above mentioned parameters without advance notice to customers.

Components List of ISBM Machine, Model ZLC150B, ZLC400 (Invalid since 2008/05/26, please refer to the Updated Components List.)

No.	ISBM Machine Model	ZLC-150B	ZLC-400
1	Screen Computer	China shanxingcomputer.com	China shanxingcomputer.com
2	AC Contactor	Germany Schneider	Germany Schneider
3	Air Breaker (Air Switch)	Germany Schneider	Germany Schneider
4	Thermorelay	Germany Schneider	Germany Schneider
5	Linear Displacement Transducer (Electronic Ruler)	Switzerland Miran	Switzerland Miran
6	Directional Valve	USA Vickers	USA Vickers
7	Proportional Valve	Japan Yuken	Japan Yuken
8	Pre-mold Oil Motor	Sino-Italy Intermot (Joint Venture)	Sino-Italy Intermot (Joint Venture)
9	Oil Pump	Japan Yuken	Japan Yuken

Updated Components List of ISBM Machine, Model ZLC100, ZLC150, ZLC150A, ZLC150B, ZLC150C, ZLC400, ZLC680

No.	ISBM Machine Model	ZLC100, ZLC150, ZLC150A, ZLC150B, ZLC150C, ZLC400, ZLC680
1	Computer + Touch Screen	Computer (Japan Mitsubishi) + Touch Screen (Japan Mitsubishi or Taiwan Eview)
2	Motor	China Beijing Motor or China Dongguan Motor
3	Hydraulic Motor	Italy Dinamic (China Distributor)
4	Control Valve	Japan Yuken or USA Vickers
5	Proportional Valve	Taiwan HNC
6	Oil Pump	USA Vickers
7	Thermal Relay	Germany Schneider Telemecanique
8	Pneumatic Components	Taiwan Sunrise SNS or Japan SMC
9	Oil Cylinder	China Brand
10	Proximity Switch (Magic Eye)	Taiwan Fotek

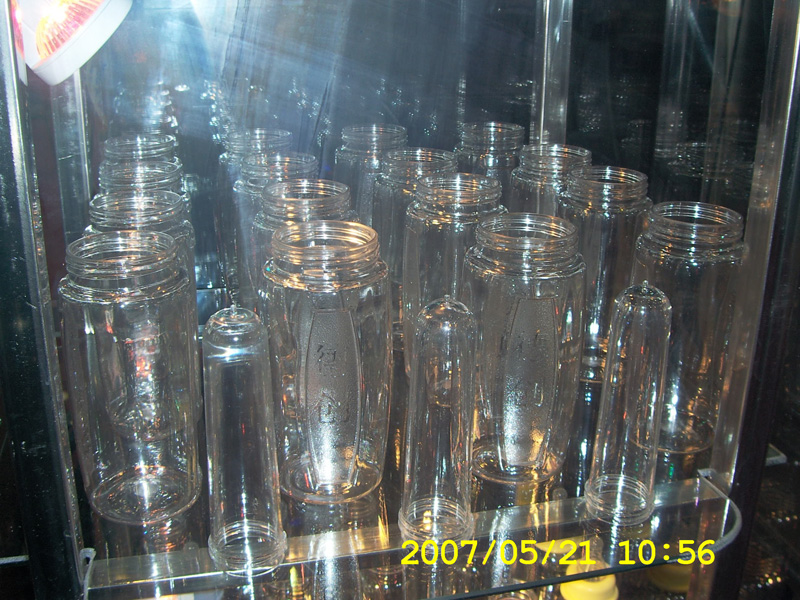

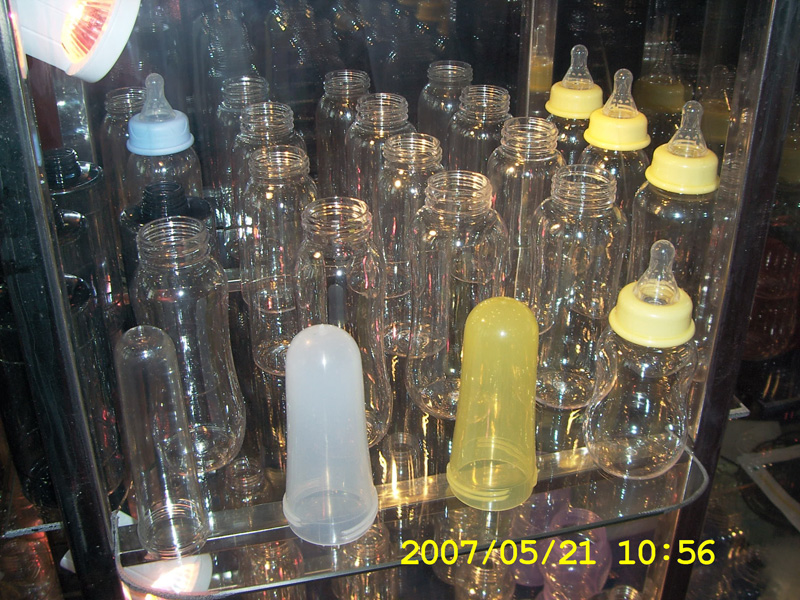

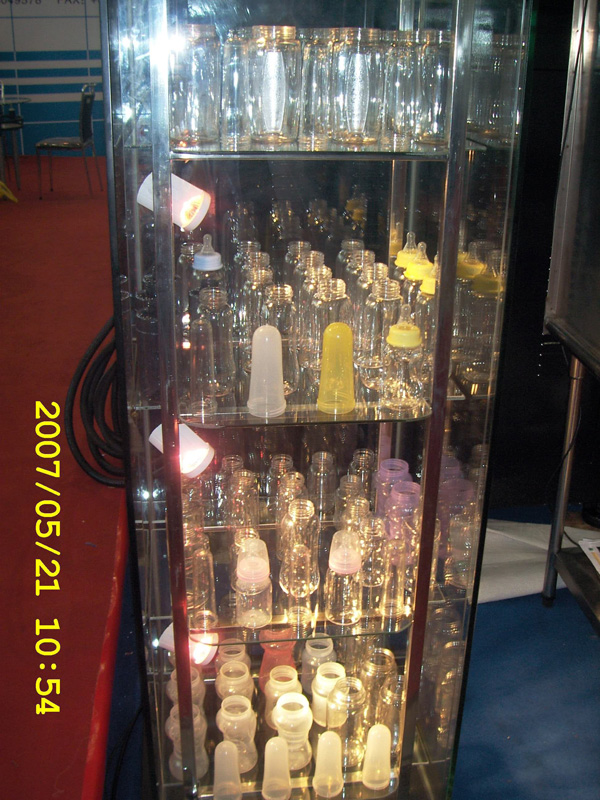

ISBM Injection Stretch Blow Molding Plastics Samples Frame	ISBM Injection Stretch Blow Molding Plastics Samples Frame Layer 1	ISBM Injection Stretch Blow Molding Plastics Samples Frame Layer 2

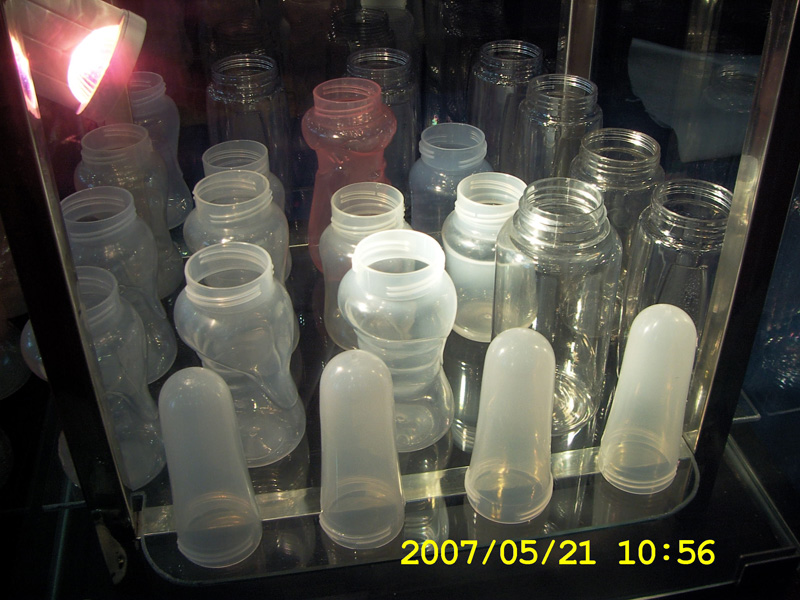

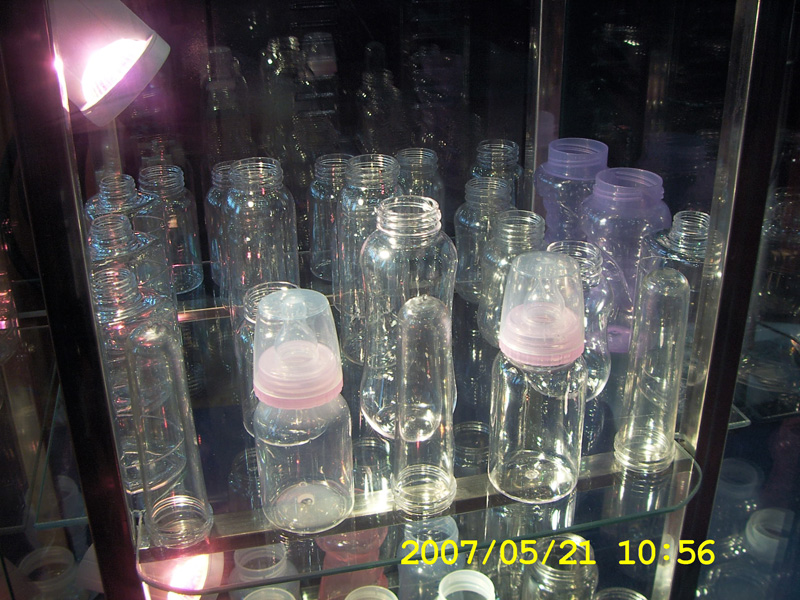

ISBM Injection Stretch Blow Molding Plastics Samples Frame Layer 3	ISBM Injection Stretch Blow Molding Plastics Samples Frame Layer 4	Various Beverage, Mineral Water, Oil 3 Galloons, 5 Gallons Containers ZCL680

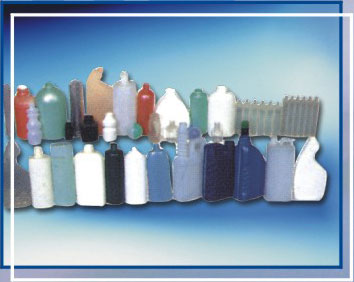

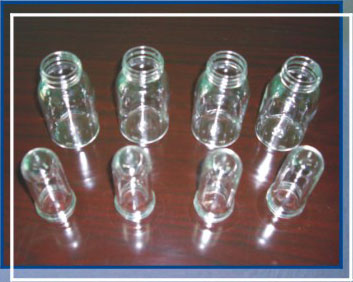

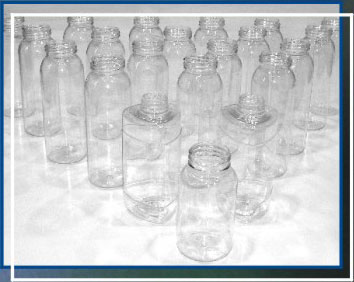

Injection Stretch Blow Molding Machines ISBM Machines Polycarbonate PC Baby Bottles	Injection Stretch Blow Molding Machines ISBM Machines Various Plastic Containers	Injection Stretch Blow Molding Machines ISBM Machines Various Polycarbonate PC BabyBottles

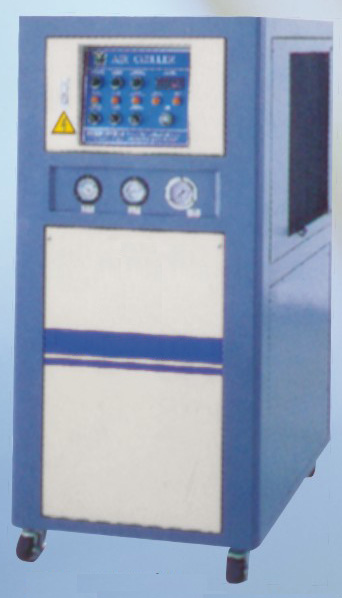

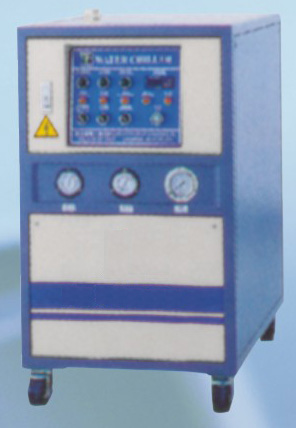

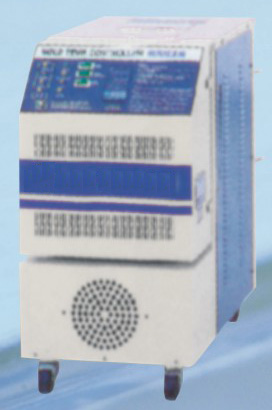

Optional Auxiliary Equipment Mould Temperature Controller	Optional Auxiliary Equipment Industrial Water Cooling Chiller	Optional Auxiliary Equipment Industrial Air Cooling Chiller

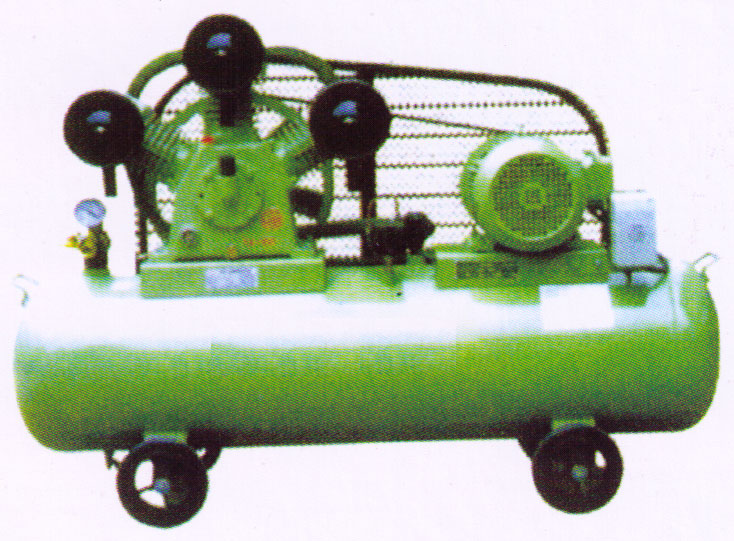

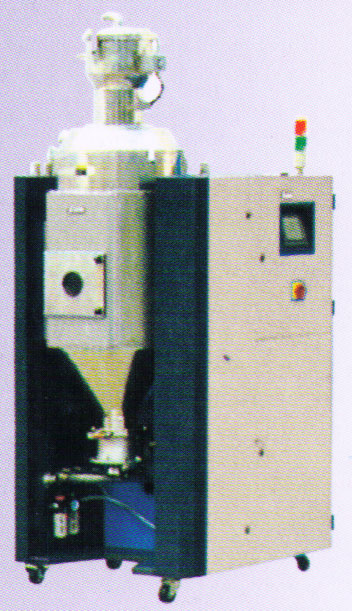

Optional Auxiliary Equipment Air Compressor	Optional Auxiliary Equipment Downwards Batch Hopper Dryer	Optional Auxiliary Equipment PET Crystallizer

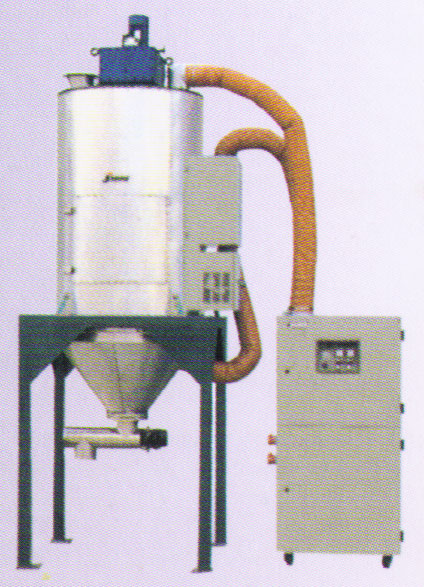

Optional Auxiliary Equipment Dehumidification Drying Feeding Device

Optional Auxiliary Equipment
Downwards Batch Hopper Dryer

Downwards Batch Hopper Dryer

Hot Air Drying: All stainless steel SHD-U Series of insulated hopper dryers are equipped with "down-blowing" and "windspout exhausting" principles which ensure perfect and consistent drying effect.

This series offers the hopper capacities from 20 to 8000 liters. All models offer accurate temperatures regulations via a microprocessor control giving full digital temperature setting and display, auto start-up clock and faults diagnosis etc.
