Automatic High Frequency Medical Bags Welding & Cutting Machinery Set
for Disposable Medicine Bags as
Urine Bags, Transfusion Bags, Drainage Bags

Automatic High Frequency
Medical Bags Welding & Cutting Machinery Set
for Disposable Medicine Bags as
Urine Bags, Transfusion Bags, Drainage Bags

Video of Automatic High Frequency
Medical Bags Welding & Cutting Machinery Set
for Disposable Medicine Bags as
Urine Bags, Transfusion Bags, Drainage Bags

Machining Facilities:

Swiss Bystronic Laser Cutting Machine
CNC Plate-Bending Machine
NC Plate-Cutting Machine
Automatic Tapping Machine
NC Lathe

Advantages of Machinery Set:

High precise automatic high frequency sealing&cutting machinery set with PLC interface for medical bags such as urine bags, urethral catheterization bags, drainage bag, blood bags, medicine bags
To adopt servo motor for automatically pulling films with 0.1mm tolerance in locating deviation
Working platform length*width 500*400mm, thickness 33mm
To adopt USA 5557 anti-fire device to greatly reduce the damages to the mold
Automatic cold-cutting function
Four-columns high planeness operation area
Automatic overcurrent protection device
Infrared ray & optical grating
Professional engineering team for automatic high frequency sealing&cutting machinery set for disposable medicine bags on all works on design, development, production and debugging&commissioning

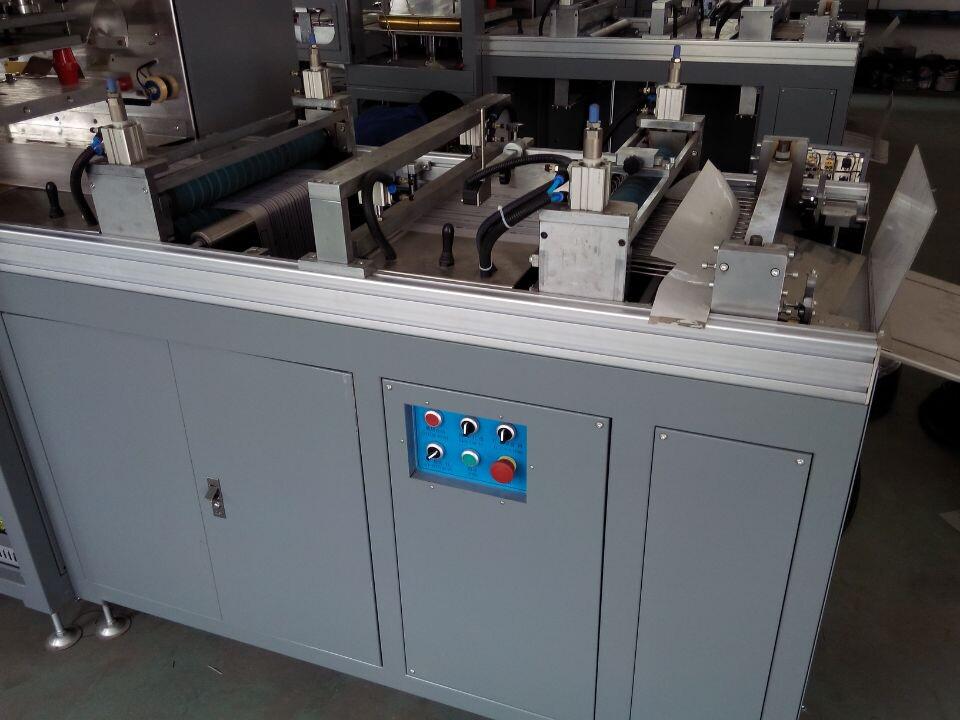

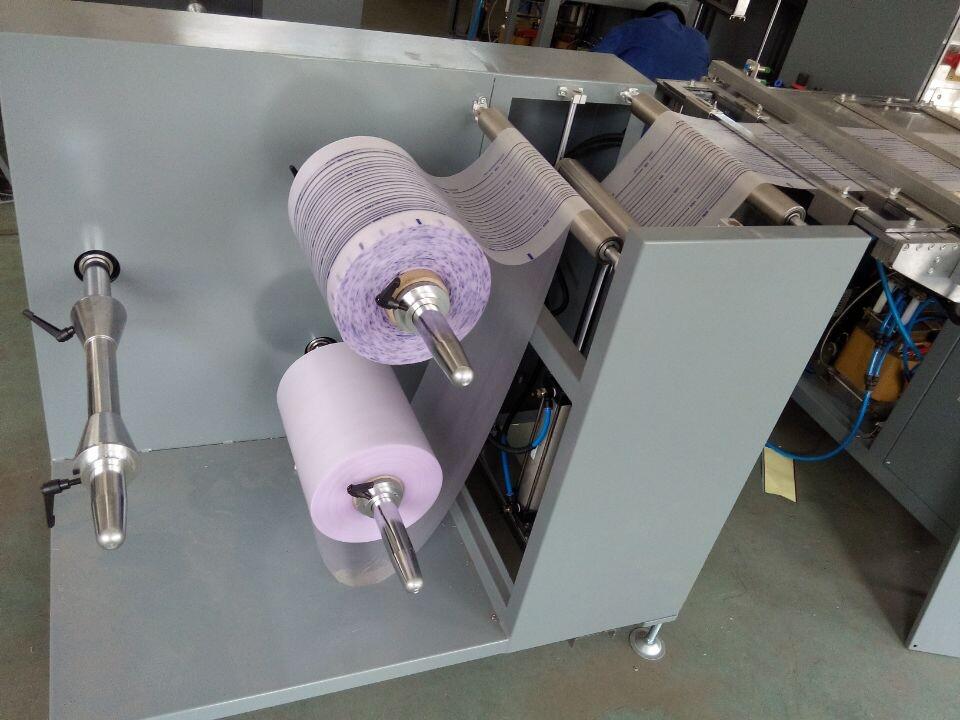

Automatic High Frequency Medical Bags Welding & Cutting Machinery Set a	Automatic High Frequency Medical Bags Welding & Cutting Machinery Set b	Automatic High Frequency Medical Bags Welding & Cutting Machinery Set c

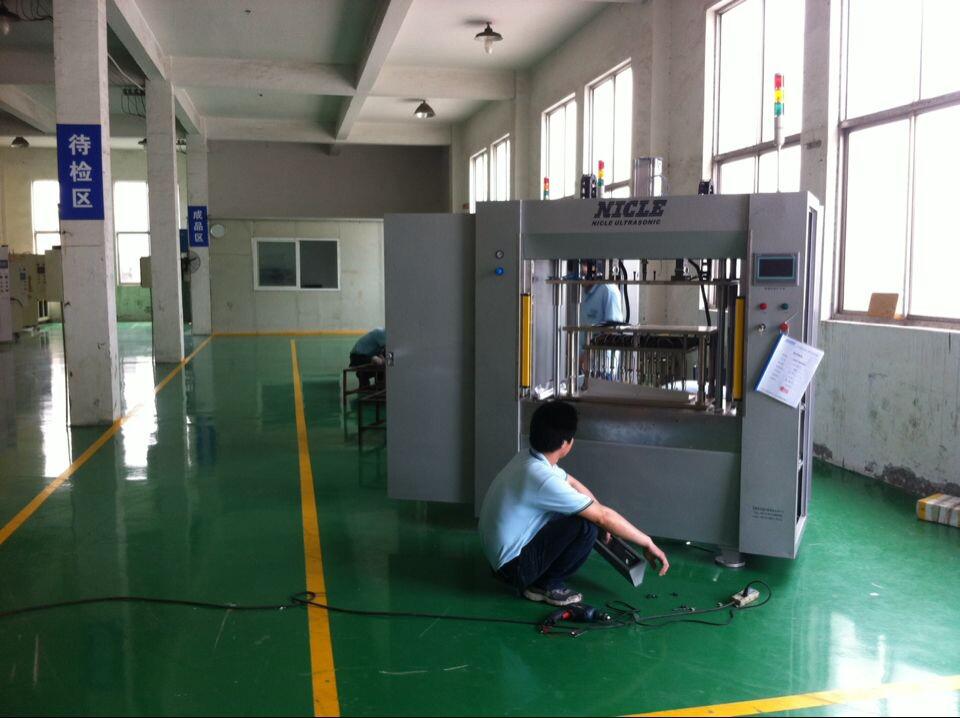

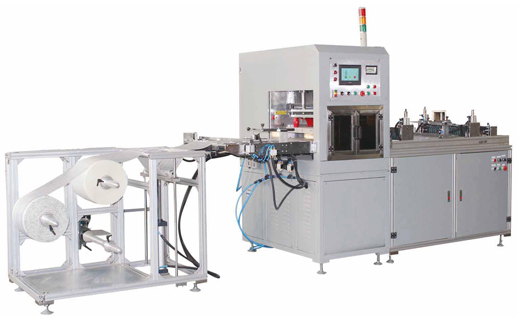

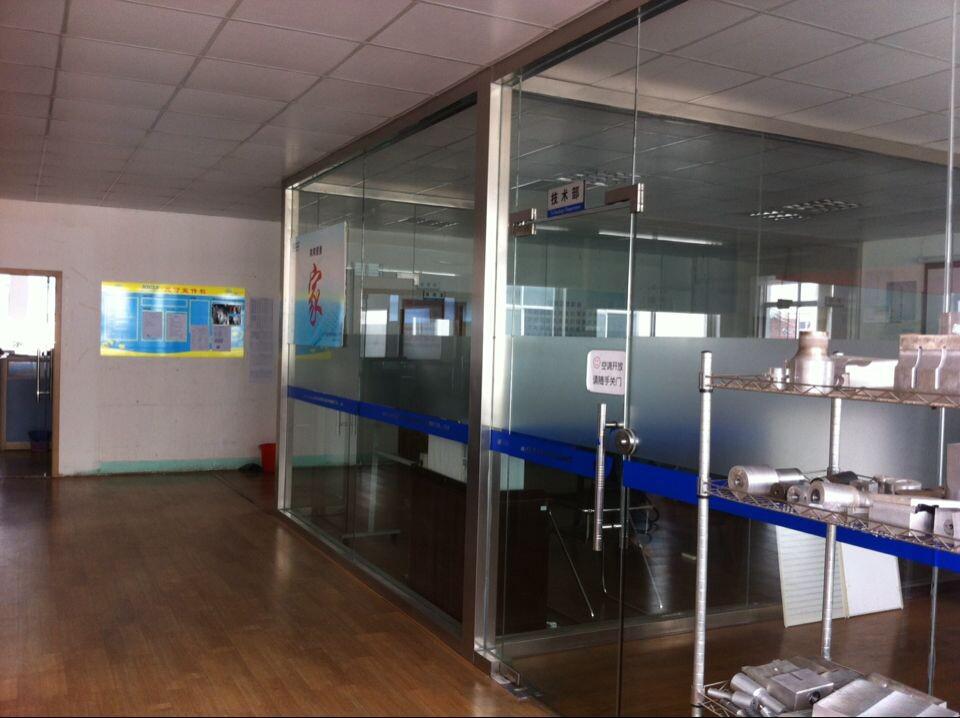

Automatic High Frequency Medical Bags Welding & Cutting Machinery Sets	Manufacturer Office	Manufacturer Workshop

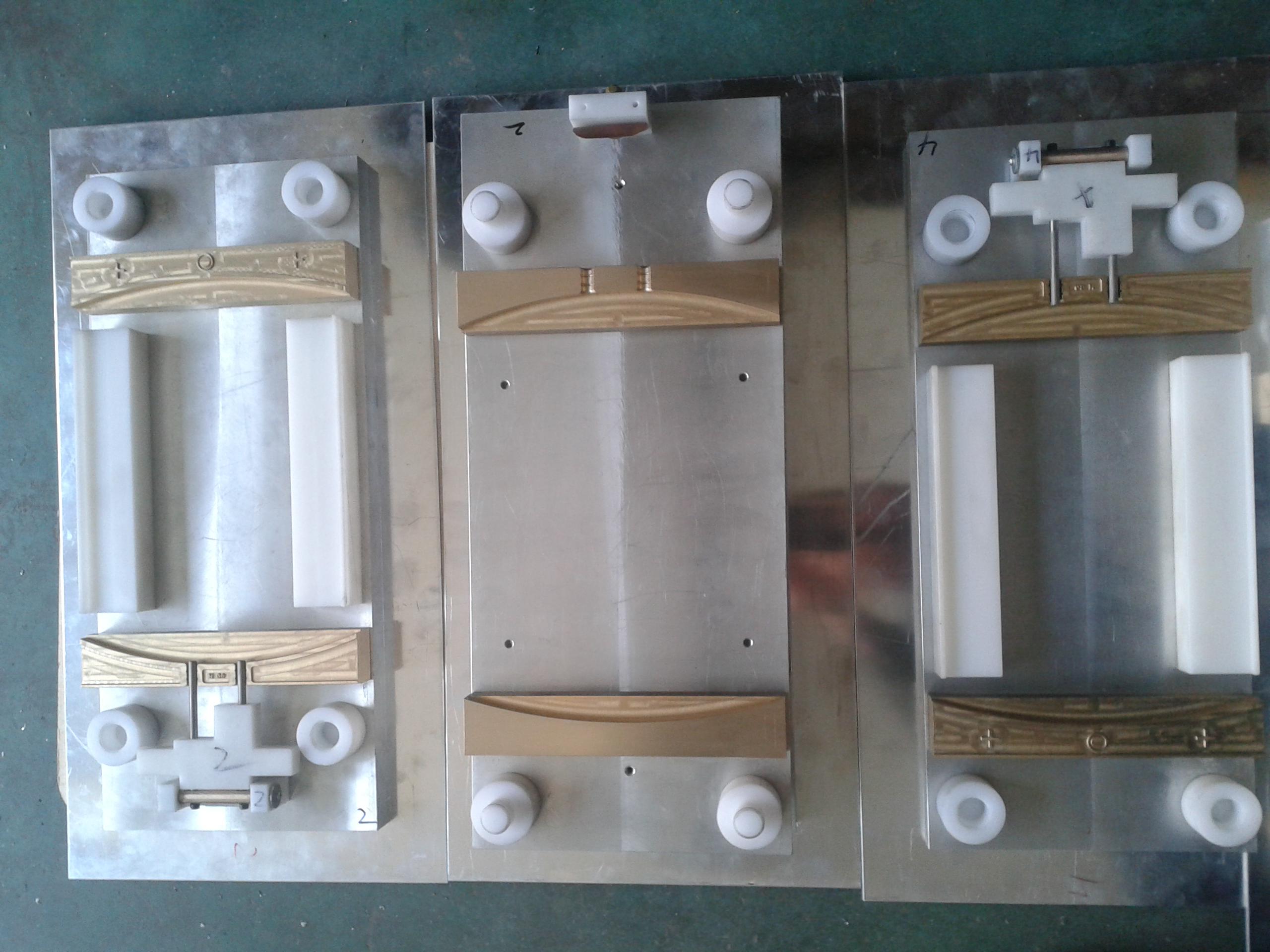

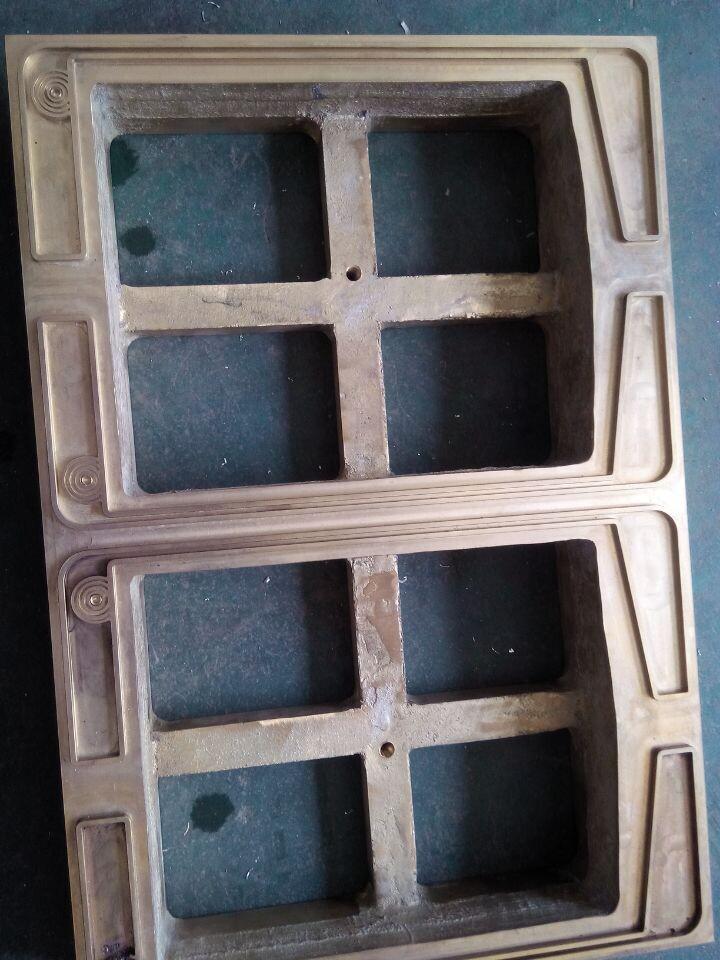

Mold for Medical Bag 1	Mold for Medical Bag 2	Sample of Medical Bag 3

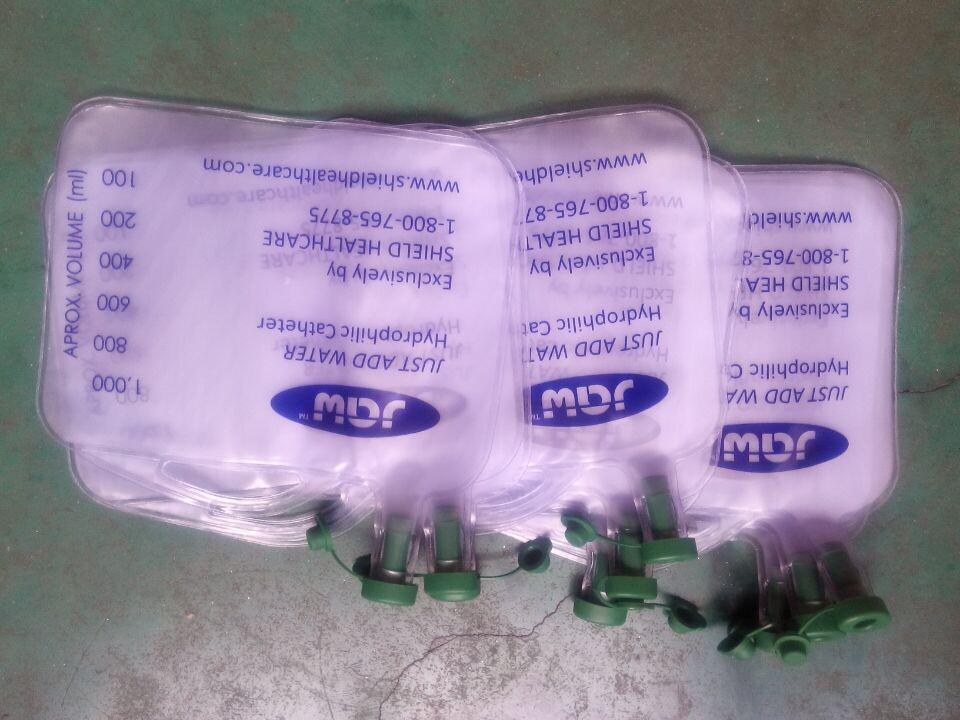

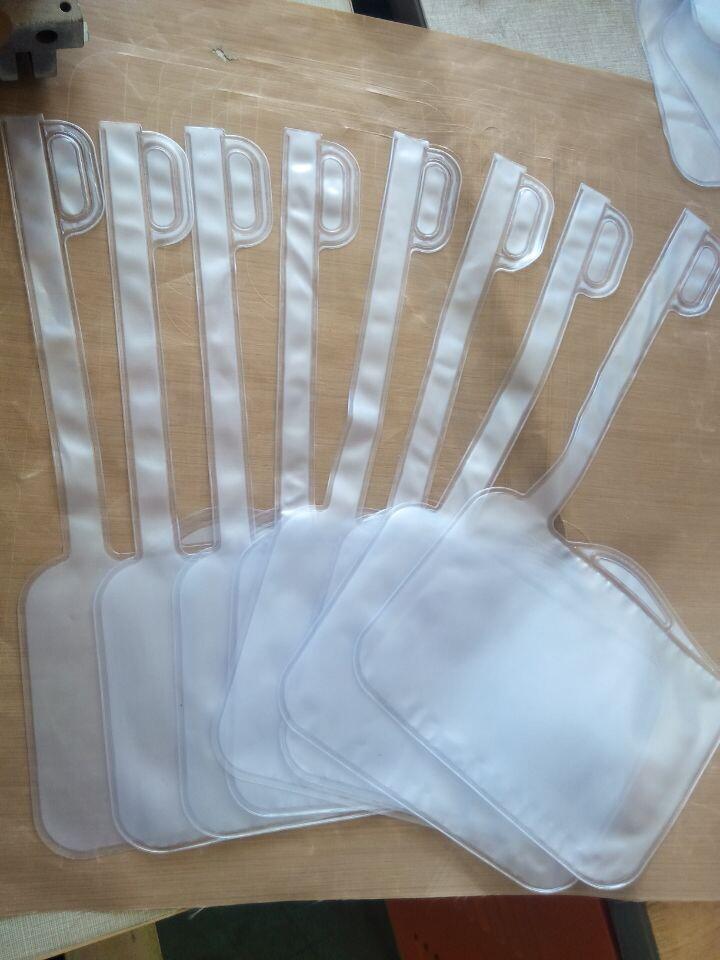

Sample of Medical Bag 1	Sample of Medical Bag 2

Technical Datas ofAutomatic High Frequency Sealing&Cutting Machinery Set

Model	KS-10KW
Power	10kW
High Frequrency Output	16kVA
Electric Voltage	380V
Oscillator Frequency	27.12MHz
Pressure Type	Pneumatic
Shock Tube	E3069RB
Press Size	50040033mm Aluminium Plate
Fixed Plate	50040040mm Iron Plate
Cooling Type	Air Cooling
Mechanical Clearance	200mm
Main Machine	440012001760mm
Machine Weight	950kgs

Components List ofAutomatic High Frequency Sealing&Cutting Machinery Set

Component	Origin	Qty	Brand
Electron Tube	Japan	1	Toshiba
Spark Tube	USA	1	5557
Contactor	Japan	1	Fuji
Air Cylinder	China Taiwan	4	AirTac
Electronic Valve	China Taiwan	4	AirTac
Fan	China Taiwan	1	Sanjun
Electric Relay	Joint-Venture	8	Omron
Capacitor	China	6	Flying
Transformer	China	2	HWD
Switch	China	2	Bluebird
PLC	China Taiwan	1	Delta
Touch Screen	China Taiwan	1	Delta
Servo Motor	Japan	1	Mitsubishi
Concussion Barrel	China	1	Selfmade
