Granulator, Pelletizer
Made in China

Go Back China Plastic Industry Center

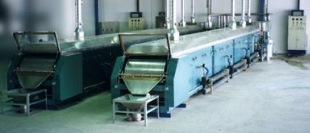

Circumgyrating Belt Type Condensation Granulator Pelletizer
For Rubber Chemicals Production

Circumgyrating Belt Type Condensation Granulator Pelletizer
For Olefin Paraffin Production

Circumgyrate Slew Belt Type Condensation Granulator Pelletizer CF Series

Circumgyrate Slew Belt Type Condensation Granulator Pelletizer CF Series
Distributor
    Circumgyrating Belt Type Condensation Granulators, Pelletizers are widely applied in the granulating production of raw materials whose metling point, soften point are less than 250℃, such as some rubber chemicals, some plastic chemicals, olefin, paraffin, sulphur, resin, asphaltum, Maleic Anhydride(MA), Trimellitic Anhydride(TMA), stearic acid, hot melt glue, MetaPhenylene Diamine, carbamide, etc.

Model
Steel Belt Width
mm
Center Distance
M
CF0.5
500
4-10.4
CF0.6
600
4-10.4
CF1.0
1000
7.2-20
CF1.2
1200
7.2-20
CF1.5
1500
10.4-36


High Speed Gear Teeth Agitating Granulator Pelletizer HSG Series

High Speed Gear Teeth Agitating Granulator Pelletizer HSG Series
   High Speed Gear Teeth Agitating Granulator Pelletizer HSG Series are widely applied in the granulating production of light, fine powder. If the basic particulates of the fine powder are more thinner, and the sphericity of particulates are more roundish, then the granulation effect will be better.
   Usually the particulates of light, find powder should had better be less than 300 mesh per inch before granulating. Some representative materials, which are suitable for High Speed Gear Teeth Agitating Granulators (Pelletizers) HSG Series, are carbon black, silica white, china clay, kaoline, bakelite powder, molecular sieve, calcium carbonate, calcium hydrogenphosphate, etc.

Model HSG-200 HSG-300 HSG-400 HSG-500 HSG-600
Barrel Body Diameter, mm 200 300 400 500 600
Drive Power, KW 7.5 15 22 30 37


Plain Flatdie Rollor Grinding Granulator Pelletizer PRG Series

Plain Flatdie Rollor Grinding Granulator Pelletizer PRG Series
    Plain Flatdie Rollor Grinding Granulator Pelletizer PRG Series are widely applied in the granulating production of raw materials such as complex fertilizer, bio fertilizer, accessory ingredient, catalyzer, pesticide, china clay, lead oxide, zinc oxide, etc.

Model
Flatdie Diameter
mm
Drive Power
KW
PRG-1
170
18.5
PRG-2
220
22.0
PRG-3
450
45.0
PRG-4
550
55.0
PRG-5
750
75.0


Screw Extrusion Granulator Pelletizer ST Series
Side Extrusion Type SET100

Screw Extrusion Granulator Pelletizer ST Series
Front Extrusion Type SET100

Screw Extrusion Granulator Pelletizer SE Series
    Screw Extrusion Granulator Pelletizer ST Series are widely applied in the granulating production of rubber chemicals accessory ingredients, food additives, plastic chemicals accessory ingredients, catalyzers, pesticides, coloring dyestuffs, pigments, household and personal care chemicals, pharmacy drug medicines, etc.

Twin Screws Extrusion Granulator
Pelletizer SET Series
Single Screw Extrusion Granulator
Pelletizer SES Series
Model
Screw Diameter
mm
Drive Power
KW
Model
Screw Diameter
mm
Drive Power
KW
SET-60
60
3.7
SES-100
100
7.5
SET-100
100
7.5
SES-120
120
15
SET-140
140
15
SES-160
160
22
SET-180
180
30
SES-180
180
30


Twin Gears Rolling Granulator Pelletizer
TRG100

Twin Gears Rolling Granulator Pelletizer
TRG180

Twin Gears Rolling Granulator Pelletizer TRG Series
    Twin Gears Rolling Granulator Pelletizer TRG Series are widely applied in the granulating production of catalyzers, accessory ingredients, additives, household and personal care chemicals, pesticides, etc.

Model
Diameter of Pitch Circle
mm
Drive Power
KW
TRG-100
100
7.5
TRG-180
180
15
TRG-360
360
30


Twin Rollers Dry Process Granulator Pelletizer DRG Series

Twin Rollers Dry Process Granulator Pelletizer DRG Series
Pelletization

Twin Rollers Dry Process Granulator Pelletizer DRG Series
Pressing Ingots
    Twin Rollers Dry Process Granulator Pelletizer DRG Series are widely applied in the granulating production of capsule filling granules, pigments, detergents, catalyzers, strontium carbonate, chemical fertilizers, silica white, inorganic salts, chloride isocyanuric acid, bleaching powder, pesticides, oxides, etc.
    Twin Rollers Dry Process Granulator Pelletizer DRG Series are also widely applied in the granulating production ofindustrial reclaimed powder materials such as cast iron factory's dust powders, lead dust, zinc dust, aluminium dust, converter dust, filtration dust, mill dust, etc.

Model
Center Distance of Twin Rollers
mm
Drive Power
KW
DRG-240
240
7.5-1.5
DRG-360
360
22-45
DRG-450
450
37-60
DRG-520
520
45-90
DRG-600
600
55-200
DRG-712
712
90-315
