Pimpex Plastic, China exports plastic injection molding machines to serve its clients from all over the world better.

Plastic Injection Molding Machinery
Made in China

Photoes of Plastic Injection Molding Machinery	Technical Parameters of Plastic Injection Molding Machinery	Spare Parts for Plastic Injection Molding Machinery
Visit Factory of Plastic Injection Molding Machinery		Plastic Products Made by Plastic Injection Molding Machine

Photoes of Plastic Injection Molding Machinery

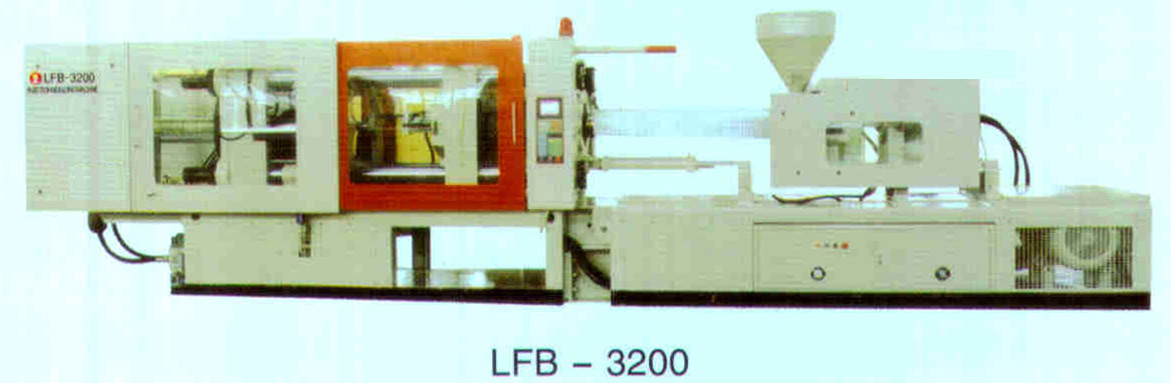

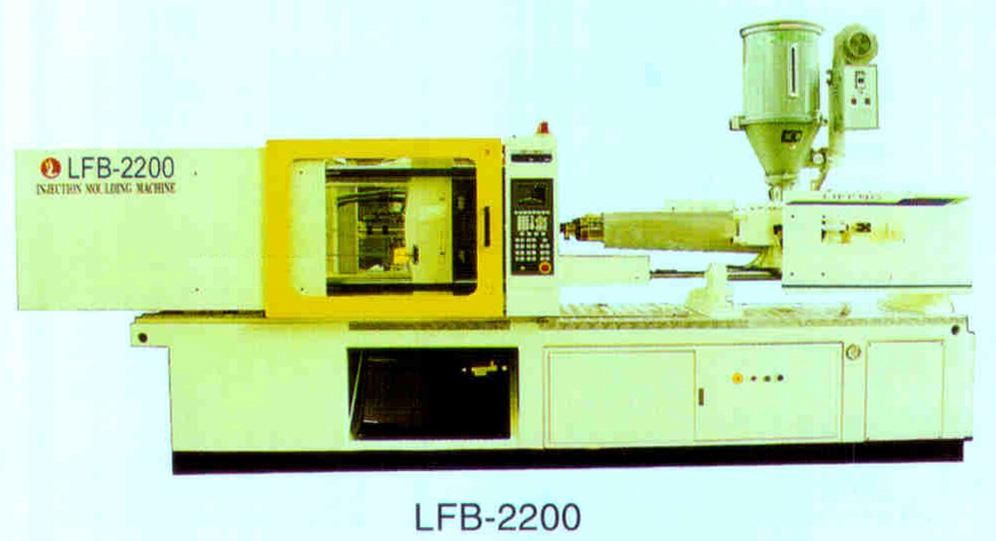

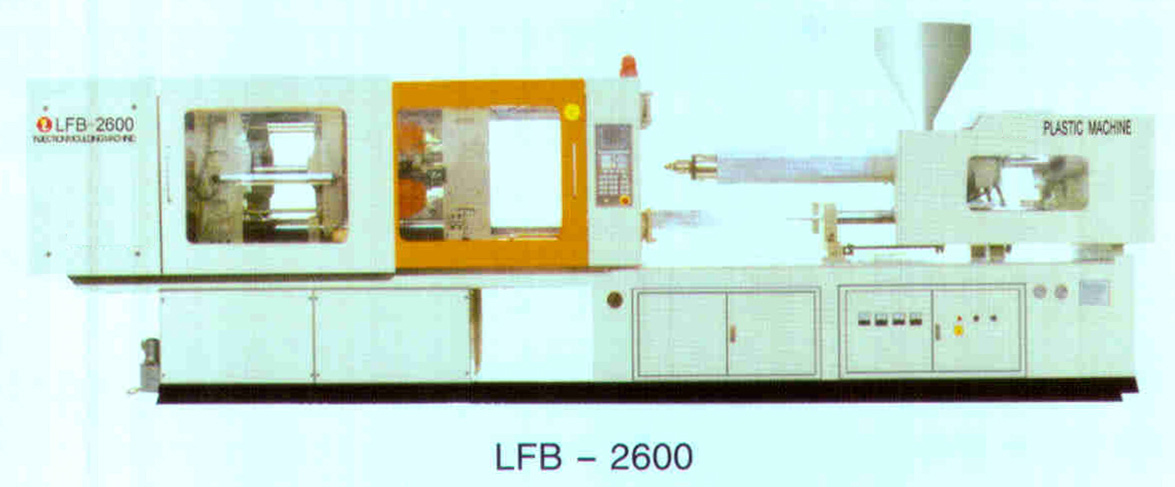

Plastic Injection Molding Machine LFB2200	Plastic Injection Molding Machine LFB2600	Plastic Injection Molding Machine LFB3200

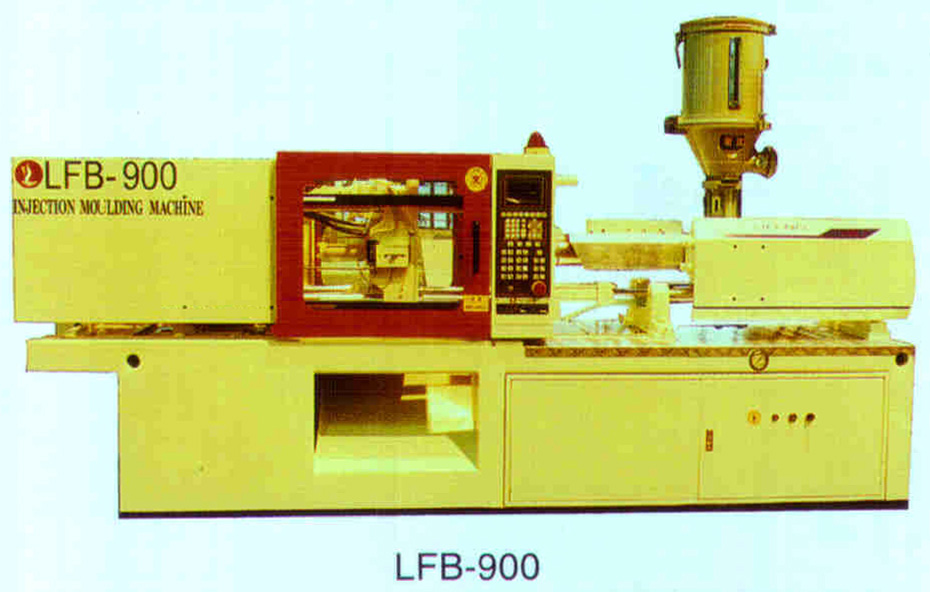

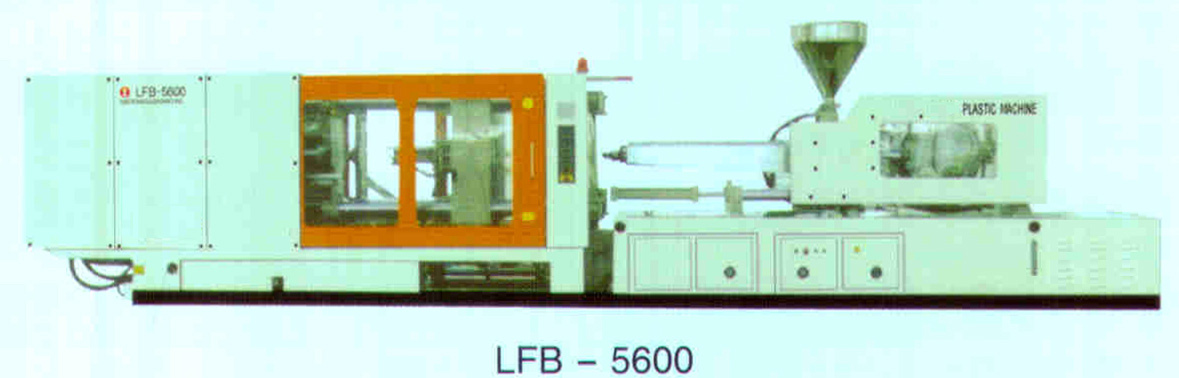

Plastic Injection Molding Machine LFB5600	Plastic Injection Molding Machine LFB900	Plastic Injection Molding Machiney -

Technical Parameters of Horizontal Plastic Injection Molding Machines

Items	LFB-900		LFB-1250		LFB-1500		LFB-1800		LFB-2200		LFB-2600			LFB-3200
Screw Diameter, mm	30	35	40	45	45	50	50	55	60	65	60	65	70	75	85
Length/Diamter (L/D)	23:1	19:1	20:1	18:1	20:1	18:1	21:1	19:1	20:1	19:1	21:1	20:1	19:1	21:1	18:1
Injection Pressure, MPa	213	156	216	171	210	170	179	148	172	146	210	178	155	175	136
Theoretic Injection Capacity, ml	100	135	225	285	320	400	400	500	680	800	735	862	1000	1190	1500
Actual Injection Mass (PS), g	90	120	200	255	290	350	257	446	610	720	660	770	900	1050	1300
Injection Speed Rate, g/s	82	111	116	147	145	170	140	170	230	268	210	267	280	300	370
Screw Rotation Speed, r/min	0-200		0-200		0-200		0-200		0-200		0-200			0-160
Clamping Force, KN	900		1250		1500		1800		2200		2600			3200
Distance Between Tie Rods, mm	350x316		415x385		460x460		490x490		560x490		600x600			670x600
Movable Moulding Board Stroke, mm	300		350		400		450		500		560			615
Min.-Max. Mould Thickness, mm	125-315		200-400		100-450		200-480		200-510		220-580			300-600
Ejecting Force, KN	22		22		44		44		44		44			90
Ejection Stroke, mm	70		65		120		85		100		100			130
Motor Power, KW	11		15		15		18.5		22		30			37
Heating Power, KW	7		7.9		10		12.7		16		16			20
Machine Size, M	3.5x1.2x1.7		3.9x1.2x1.8		4.1x1.3x2.0		4.5x1.4x2.1		4.9x1.4x2.1		7x1.5x2			7.1x1.4x2.5
Machine Weight, MT	3.5		4.5		5		6		8		10			15
Remarks: If buyers want to make PC, PVC products, our engineers could select suitalbe screws for the purchased injection molding machines. Remarks: The above mentioned parameters might be updated according to technology innovation.

Items	LFB-4000		LFB-5600		LFB-7000			LFB-8600		LFB-11000		LFB-12800		LFB-15000
Screw Diameter, mm	85	90	90	100	100	105	110	110	115	115	120	120	130	130	140
Length/Diamter (L/D)	20:1	19:1	20:1	18:1	20:1	19:1	18:1	20	19	20	18.5	20	18.5	21	19
Injection Pressure, MPa	177	143	176	145	178	161	147	172	157	180	154	193	164	185	144
Theoretic Injection Capacity, ml	1700	2000	2600	3200	4020	4430	4900	5224	5710	5762	6274	6430	7540	7818	9077
Actual Injection Mass (PS), g	1500	1600	2313	2855	3619	3990	4379	4701	5138	5185	5646	5787	6786	7036	8170
Injection Speed Rate, g/s	339	436	467	577	564	622	683	770	848	850	918	920	1080	1048	1210
Screw Rotation Speed, r/min	0-160		0-130		0-130			5-100		5-100		5-100		5-100
Clamping Force, KN	4000		5600		7000			8600		11000		12800		15000
Distance Between Tie Rods, mm	670x670		810x810		1000x950			1050x1050		1200x1200		1250x1250		1350x1350
Movable Moulding Board Stroke, mm	740		800		1050			1150		1230		1300		1350
Min.-Max. Mould Thickness, mm	350-720		350-850		500-1000			450-1000		500-1200		550-1300		550-1400
Ejecting Force, KN	110		215		215			220		250		250		350
Ejection Stroke, mm	130		200		200			250		300		300		350
Motor Power, KW	37		55		37+30			55		55+37		55+55		45+45+45
Heating Power, KW	20		26.8		30.8			45		60		65		76
Machine Size, M	8.5x1.8x2.5		9.8x1.7x2.6		11x2.1x2.9			13x2.8x2.9		13.5x3.2x3.2		14.2x4.0x3.5		15.5x4.2x4.0
Machine Weight, MT	18		26		38			56		75		90		100
Remarks: If buyers want to make PC, PVC products, our engineers could select suitalbe screws for the purchased injection molding machines. Remarks: The above mentioned parameters might be updated according to technology innovation.

Technical Parameters for Thermosetting Plastic Injection Molding Machine

Items	LFB-900G	LFB-1250G	LFB-1500G	LFB-1800G	LFB-2200G	LFB-2600G	LFB-3200G
Screw Diameter, mm	30	40	45	50	60	65	75
Length/Diamter (L/D)	15:1	15:1	15:1	15:1	15:1	15:1	15:1
Injection Pressure, MPa	213	216	210	179	172	210	175
Theoretic Shot Volume, ml	100	225	320	400	680	735	1190
Screw Rotation Speed, r/min	0-200	0-220	0-200	0-200	0-200	0-200	0-160
Clamping Force, KN	900	1250	1500	1800	2200	2600	3200
Distance Between Tie Rods, mm	350x316	415x385	460x460	490x490	560x490	600x660	670x600
Maximum Daylight , mm	300	350	400	450	500	560	615
Min.-Max. Mould Thickness, mm	55-245	130-330	100-450	130-410	130-440	150-510	300-600
Ejection Force, KN	22	22	44	44	44	44	90
Ejection Stroke, mm	70	65	120	85	100	100	130
Motor Power, KW	11	15	15	18.5	22	22	37
Heating Power, KW	2.7	4	10	5.4	7.2	10	20
Machine Size, M	3.5x1.2x1.7	3.9x1.2x1.8	4.1x1.3x2.0	4.5x1.4x2.1	4.9x1.4x2.1	7x1.5x2	7.1x1.4x2.5
Machine Weight, MT	4	5	5	7	8	12	15
Remarks: The above mentioned parameters might be updated according to technology innovation.

Spare Parts for Plastic Injection Molding Machinery

Plastic Injection Molding Machinery Bilingual Computer System	Plastic Injection Molding Machinery Dual Cylinders Injection Organ	Plastic Injection Molding Machinery Hydraulic System 01
Plastic Injection Molding Machinery Hydraulic System 02	Plastic Injection Molding Machinery Hydraulic System 03	Plastic Injection Molding Machinery Oil Hydraulic Motor
Plastic Injection Molding Machinery Screw	Thermostatic Apparatus for Thermosetting Plastic Injection Molding Machine

Visit Factory of Plastic Injection Molding Machinery

Automatic Screw Milling Machine for Plastic Injection Molding Machinery Screw	Mould Plates Finite Elements Analysis for Plastic Injection Molding Machinery	Plastic Injection Molding Machinery Assembly Workshop
Plastic Injection Molding Machinery Machining Workshop	Plastic Injection Molding Machinery Technology Development Center	Plastic Injection Molding Machinery Workshop Overview
Quality System Certificate CQC for Plastic Injection Molding Machinery	Vertical Machining Center for Plastic Injection Molding Machinery

Plastic Products made by Plastic Injection Molding Machinery

Plastic Chairs made by Plastic Injection Molding Machinery	Plastic Products made by Plastic Injection Molding Machinery 01	Plastic Products made by Plastic Injection Molding Machinery 02
Plastic Telephone Shell Plastic Mobilephone Shell made by Plastic Injection Molding Machinery	Plastic Three Ways Conduit Joint made by Plastic Injection Molding Machinery	Plastic Two Ways Conduit Joint made by Plastic Injection Molding Machinery
Plastic Wheel made by Plastic Injection Molding Machinery
