 Automatic Plastics Injection Blow Molding Machinery IBM Machines WIB40_WIB50_WIB50D_WIB50DT |

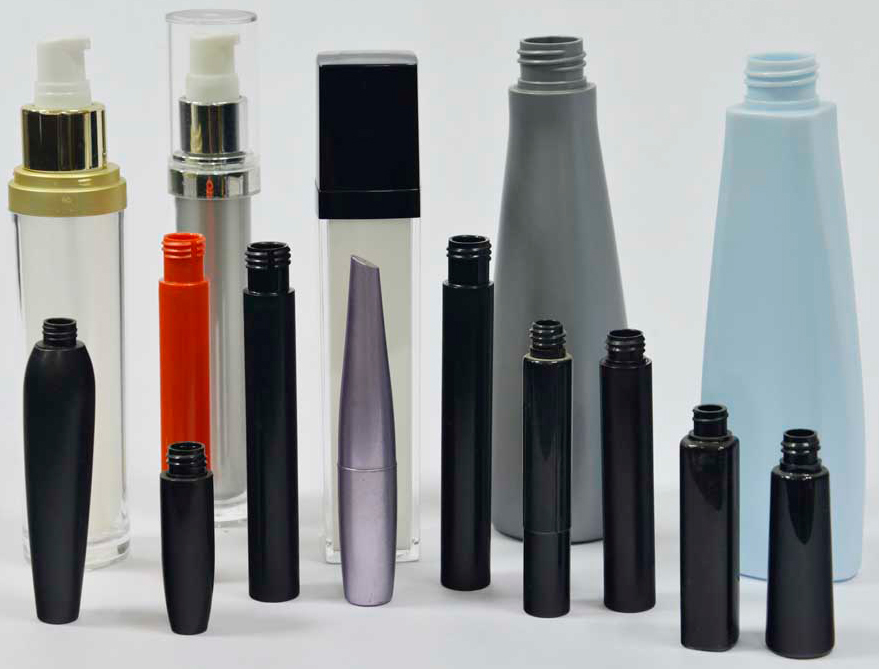

 Various Bottles Made By IBM Machines/Molds PE_PP_AS a |
 Various Bottles Made By IBM Machines/Molds PE_PP_AS b |

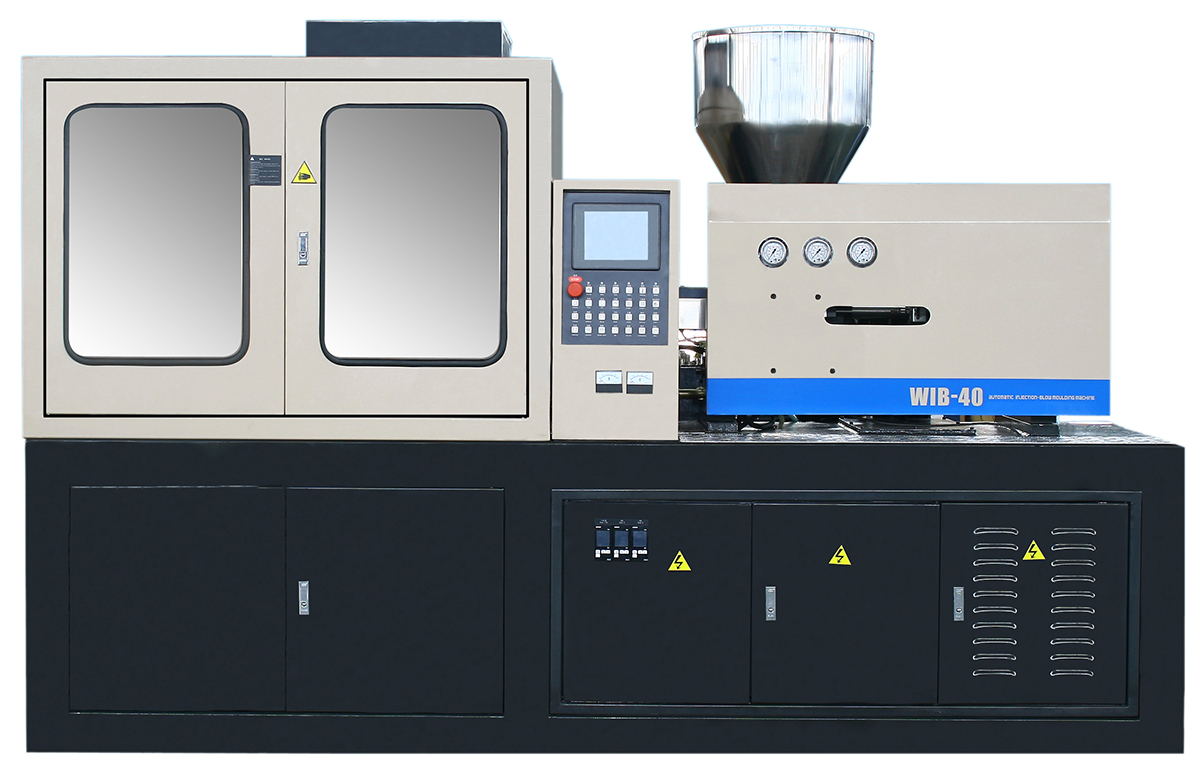

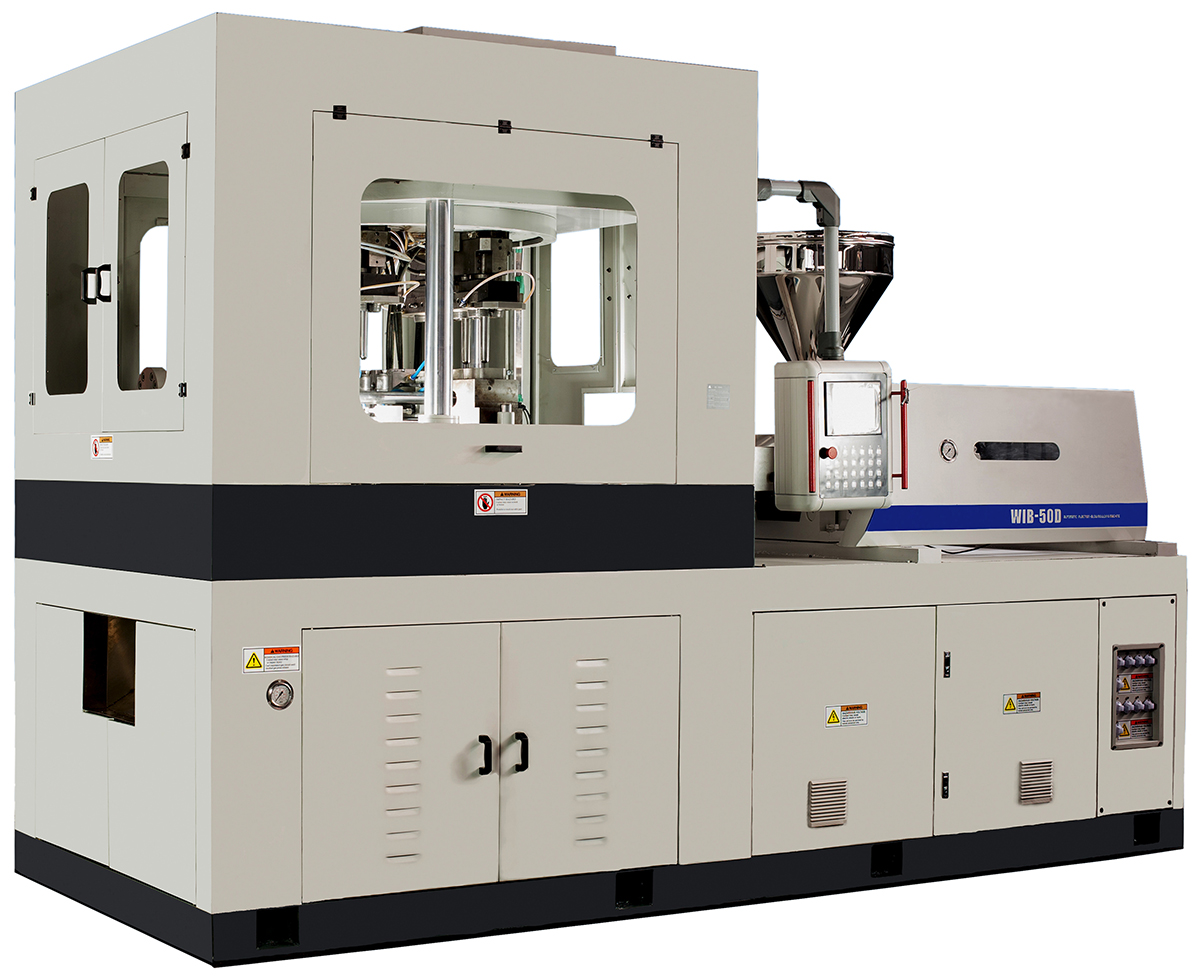

 Automatic Plastics Injection Blow Molding Machinery IBM Machine WIB-40 |
Injection Blow Molding (IBM) Machines for Making PP, PE, PS Bottles/Containers |
|
| Technical Datas of Automatic Plastics Injection Blow Molding Machinery, IBM Machines WIB40, WIB50, WIB50D, WIB50DT |
|||||
| Item | Unit | WIB40 | WIB50 | WIB50D | WIB50DT |
| Screw Diameter | mm | 40 | 50 | 60 | 60 |
| Screw Speed | r/min | 0-180 | 0-180 | 0-180 | 0-180 |
| Theoretical Injection Capacity | g | 146 | 250 | 380 | 380 |
| Injection Clamping Force | kN | 300 | 430 | 670 | 670 |
| Blow Clamping Force | kN | 50 | 65 | 78 | 65 |
| Servo Motor Power | kW | 25 | 35 | 55 | 55 |
| Heater Capacity | kW | 13 | 15 | 15 | 15 |
| Operating Air Pressure | MPa | 0.9-1.0 | 0.9-1.0 | 0.9-1.0 | 0.9-1.0 |
| Cooling Water | bar | 2.0-3.0 | 2.0-3.0 | 2.0-3.0 | 2.0-3.0 |
| Dimension of Machine | m | 3.3*1.35*2.6 | 3.5*1.61*2.6 | 3.8*1.7*2.75 | 3.8*1.7*2.75 |
| Machine Weight | kgs | 5000 | 6000 | 6500 | 6500 |
| Bottle Volume | ml | 2~800 | 10~2000 | 10~2000 | 500~2000 |
| Suitable Material | abbr. | PE, PP, AS | PE, PP, AS | PE, PP, AS | PE, PP, AS |
| The above parameters are only for reference. Actual design may have changes. | |||||
| Standard Configuration/Components List of Automatic Plastics Injection Blow Molding Machinery, IBM Machines WIB40, WIB50, WIB50D, WIB50DT |
||
| No. | Item | Brand |
| 1 | All Hydraulic Valve | YUKEN |
| 2 | Variable Pump | YUKEN |
| 3 | Seal Ring | HALLITE |
| 4 | Cylinder Air Valve | SMC |
| 5 | Air Cylinder | SMC/AIRTAC |
| 6 | PLC | OMRON |
| 7 | Rotation Plant Servo Motor | OMRON |
| 8 | Low-Voltage Electrical Components | Schneider |
| 9 | Temperature Controller | OMRON |
| 10 | Reducer | Shimpo |
| 11 | Material Used for Mould | Mould Stainless Steel 2316 |
| The above info are only for reference. Actual design may have changes. | ||
| Technical Datas of IBM Machine WIB-40 | |||||
| NO. | ITEM | UNIT | DATA | ||
| 1 | Screw Diameter | mm | 40 | ||
| 2 | Screw Speed | r/min | 0-180 | ||
| 3 | Theoretical Injection Capacity | g | 146[Actual 110] | ||
| 4 | Injection Clamping Force | kN | 300 | ||
| 5 | Blow Clamping Force | kN | 50 | ||
| 6 | Motor Power | kW | 15 | ||
| 7 | Heater Capacity | kW | 13 | ||
| 8 | Operating/Blowing Air Pressure | MPa | 0.6-0.8 | ||
| 9 | Cooling Water | bar | 2-3 | ||
| 10 | Dimension of Machine | mm | 3,300*1,350*2,600 | ||
| 11 | Machine Weight | kgs | 5,000 | ||
| 12 | Suitable Material | PE/PP/AS | |||
 |
Cavities | Bottle Weight | d | D | H |
| 1 | 110 | 76 | 95 | 170 | |
| 2 | 55 | 58 | 85 | 170 | |
| 3 | 36 | 46 | 80 | 150 | |
| 4 | 27 | 40 | 75 | 150 | |
| 5 | 22 | 35 | 70 | 150 | |
| 6 | 18 | 32 | 58 | 150 | |
| 7 | 15 | 28 | 50 | 150 | |
| 8 | 12 | 22 | 40 | 150 | |
| 9 | 12 | 18 | 35 | 150 | |
| The above parameters are only for reference. Actual design may have changes. | |||||
 Automatic Plastics Injection Blow Molding Machinery IBM Machines WIB52PC_WIB52PCL_WIB52PPSU WIB55PCL_WIB60PC_WIB65PC |
 Sports Bottles, SportsCups Baby Bottles Made By IBM Machines/Molds PC_PETG_Tritan_PPSU_PES_AS_SAN a |
 Sports Bottles, SportsCups Baby Bottles Made By IBM Machines/Molds PC_PETG_Tritan_PPSU_PES_AS_SAN b |

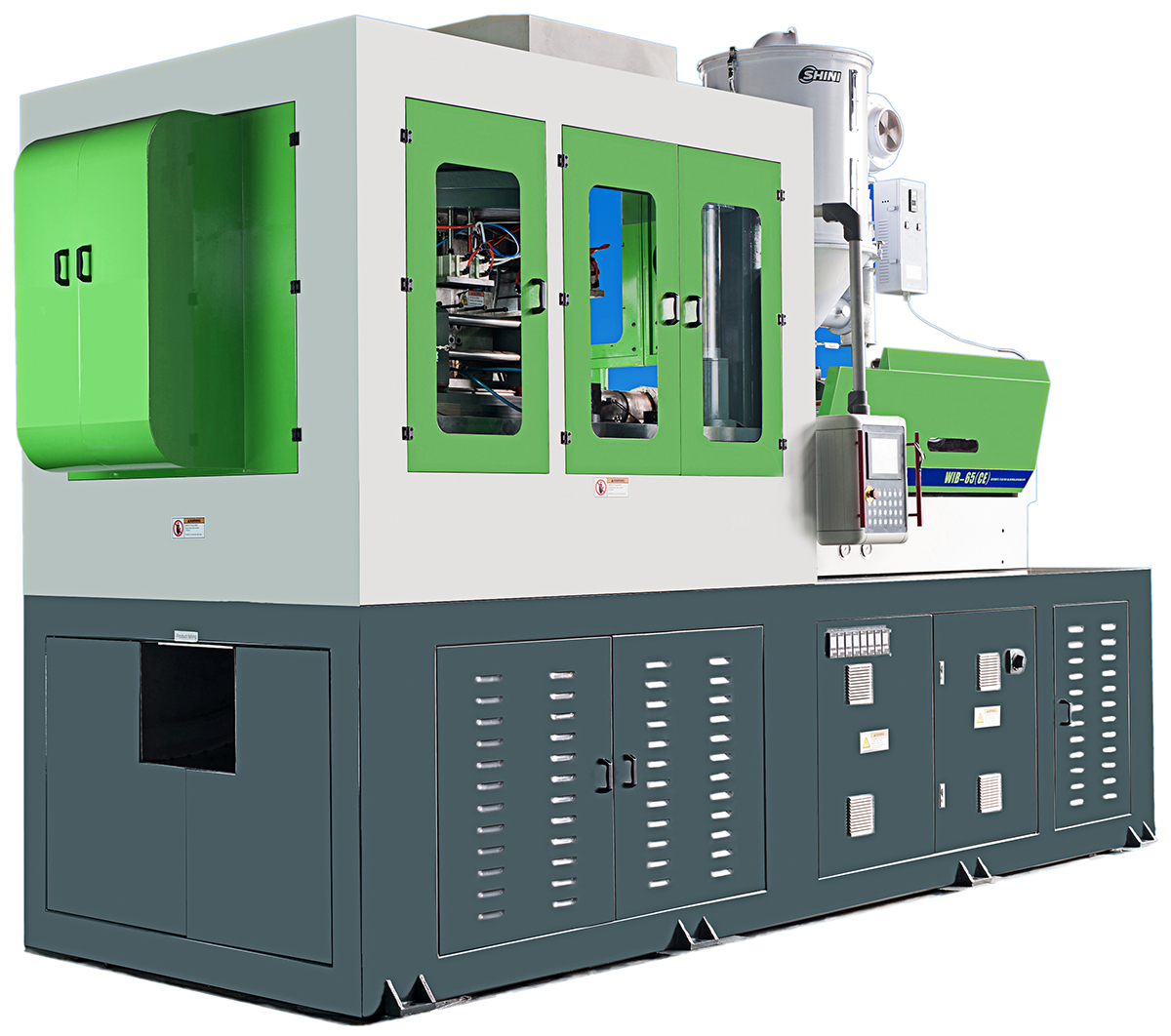

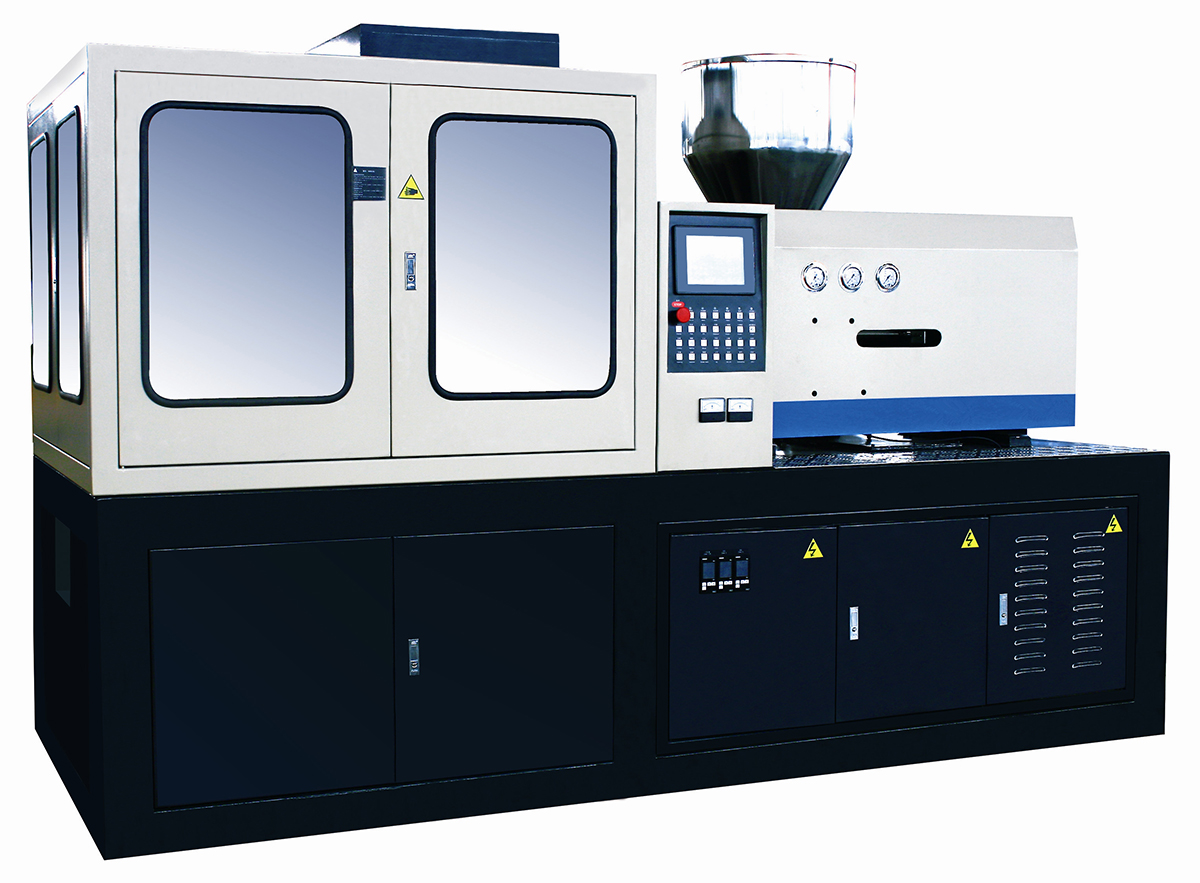

 Automatic Plastics Injection Blow Molding Machinery IBM Machine WIB-52PC |
Injection Blow Molding (IBM) Machines for Making Transparent Resin Bottles/Containers This series of machines is a representative of our high technology, which is mainly for making sports bottles and baby feeding bottles, suitable materials include PC, PETG, Tritan, PPSU, PES, AS, SAN, etc. The bottles/containers are top-grade and exquisite, with uniform thickness, clear surface and almost invisible parting line. Our brand has become the first choice for many big customers in China, with more than 500 machines and matching molds sold and delivered. Kindly advice the materials, the sizes and the outputs of the bottles/containers, then our experienced and professional team will offer the best solution for you. |
|
| Technical Datas of Automatic Plastics Injection Blow Molding Machinery, IBM Machines WIB52PC, WIB52PCL, WIB52PPSU, WIB55PCL, WIB60PC, WIB65PC |
|||||||
| Item | Unit | WIB52PC | WIB52PCL | WIB52PPSU | WIB55PCL | WIB60PC | WIB65PC |
| Screw Diameter | mm | 52 | 52 | 52 | 55 | 60 | 65 |
| Screw Speed | r/min | 0-180 | 0-180 | 0-180 | 0-180 | 0-180 | 0-180 |
| Theoretical Injection Capacity | g | 346 | 346 | 346 | 420 | 720 | 750 |
| Injection Clamping Force | kN | 430 | 430 | 430 | 670 | 1250 | 1250 |
| Blow Clamping Force | kN | 65 | 65 | 65 | 85 | 150 | 150 |
| Servo Motor Power | kW | 35 | 35 | 35 | 55 | 55+25 | 55+25 |
| Heater Capacity | kW | 15 | 15 | 20 | 20 | 20 | 20 |
| Operating Air Pressure | MPa | 1.0-2.0 | 1.0-2.0 | 1.0-2.0 | 1.0-2.0 | 1.0-2.0 | 1.0-2.0 |
| Cooling Water | bar | 2.0-3.0 | 2.0-3.0 | 2.0-3.0 | 2.0-3.0 | 2.0-3.0 | 2.0-3.0 |
| Dimension of Machine | m | 3.3*1.35*2.7 | 3.3*1.35*2.7 | 3.5*1.61*2.7 | 3.86*1.6*3.1 | 4.8*1.9*3.2 | 5.2*1.9*3.6 |
| Machine Weight | kgs | 6000 | 6000 | 6500 | 8000 | 12000 | 13000 |
| Bottle Volume | ml | ||||||
| Suitable Material | abbr. | PC, PETG, Tritan, PPSU, PES, AS, SAN | |||||
| The above parameters are only for reference. Actual design may have changes. | |||||||
| Standard Configuration/Components List of Automatic Plastics Injection Blow Molding Machinery, IBM Machines WIB52PC, WIB52PCL, WIB52PPSU, WIB55PCL, WIB60PC, WIB65PC |
||
| No. | Item | Brand |
| 1 | All Hydraulic Valve | YUKEN |
| 2 | Variable Pump | YUKEN |
| 3 | Seal Ring | HALLITE |
| 4 | Cylinder Air Valve | SMC |
| 5 | Air Cylinder | SMC/AIRTAC |
| 6 | PLC | OMRON |
| 7 | Rotation Plant Servo Motor | OMRON |
| 8 | Low-Voltage Electrical Components | Schneider |
| 9 | Temperature Controller | OMRON |
| 10 | Reducer | Shimpo |
| 11 | Material Used for Mould | Mould Stainless Steel 2316 |
| The above info are only for reference. Actual design may have changes. | ||

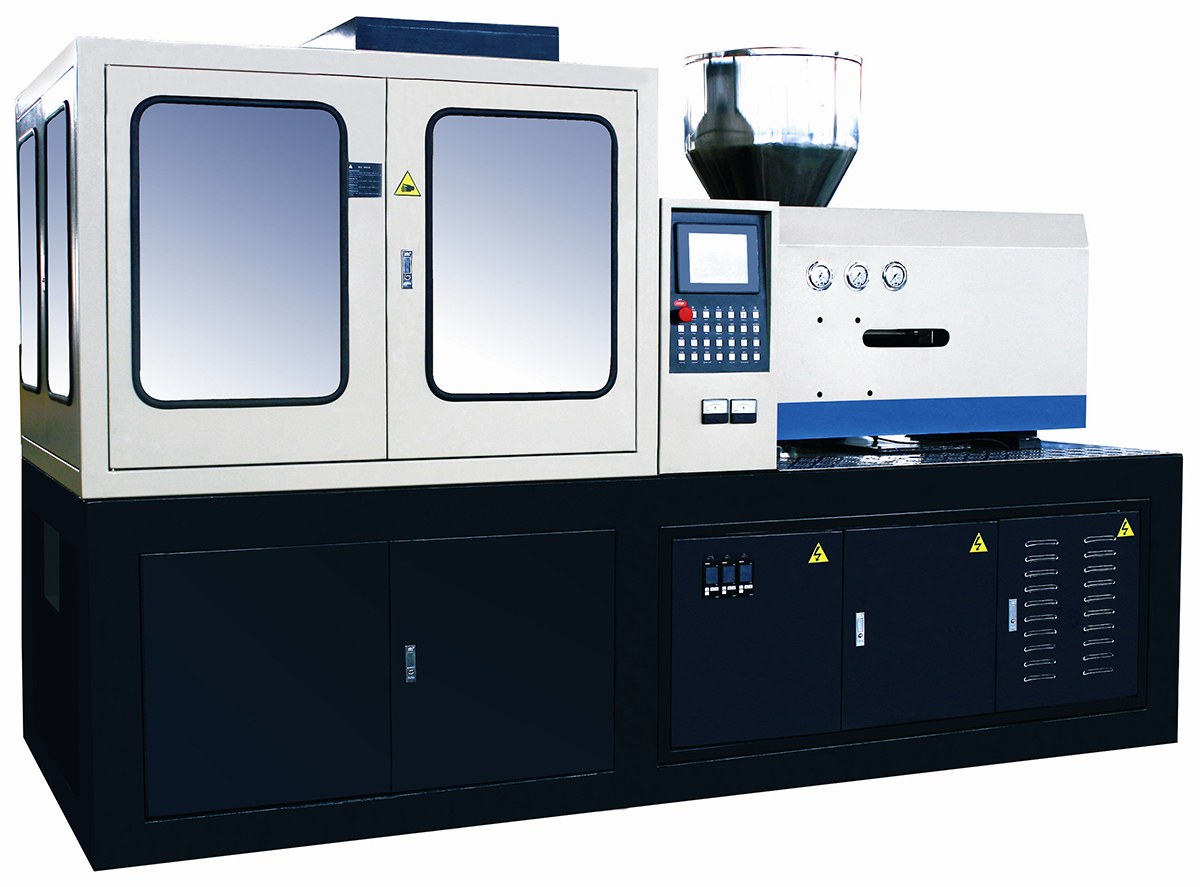

 Automatic Plastics Injection Blow Molding Machinery IBM Machines WIB42LED_WIB45LED_WIB52LED |

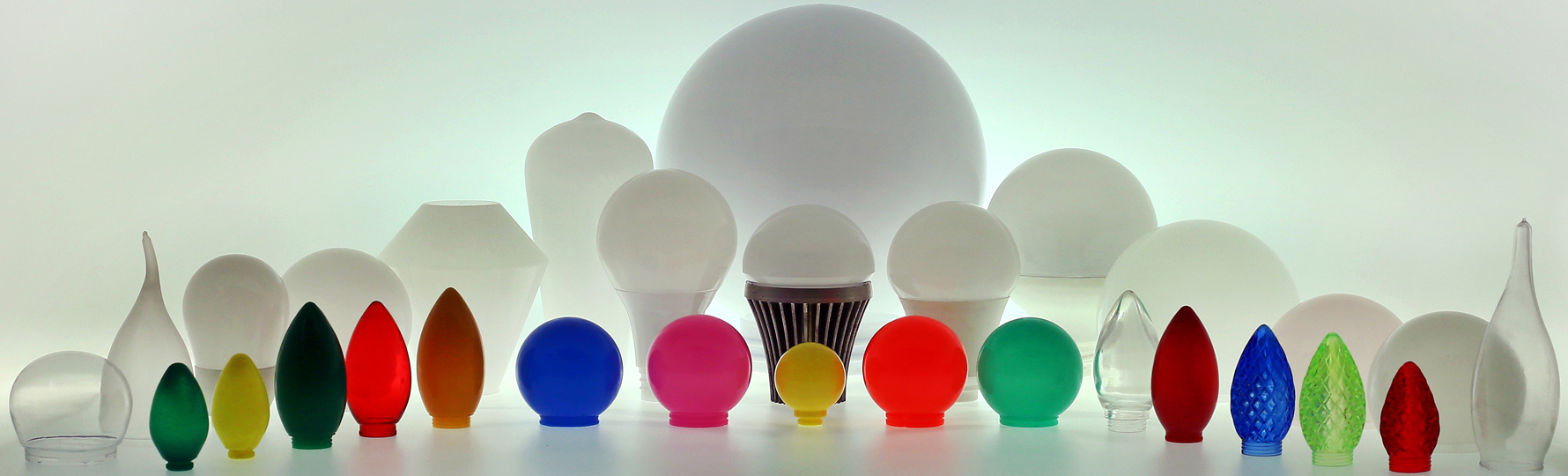

 Various Lampshades Made By IBM Machines/Molds PC_PMMA_AS_PA_SAN_PETG_PCTG a |
 Various Lampshades Made By IBM Machines/Molds PC_PMMA_AS_PA_SAN_PETG_PCTG b |
Injection Blow Molding (IBM) Machines for Making Light Bulbs, Lampshades This series of machines, which are designed based on our years' experiences of processing Polycarbonate and our patented technology, are specially for making light bulbs and lampshades (diameters ranging from 35mm to 250mm). Kindly advise the sizes and hourly outputs of the light bulbs and/or lampshades, our experienced and professional team will offer the best solution for you. With more than one hundred machines and matching molds solde every year, our brand has become the first choice in light bulbs and/or lampshades industry. |
||
| Technical Datas of Automatic Plastics Injection Blow Molding Machinery, IBM Machines WIB42LED, WIB45LED, WIB52LED |
||||
| Item | Unit | WIB42LED | WIB45LED | WIB52LED |
| Screw Diameter | mm | 42 | 45 | 52 |
| Screw Speed | r/min | 0-180 | 0-180 | 0-180 |
| Theoretical Injection Capacity | g | 186 | 280 | 346 |
| Injection Clamping Force | kN | 530 | 830 | 1590 |
| Blow Clamping Force | kN | 65 | 65 | 150 |
| Servo Motor Power | kW | 25 | 35 | 55 |
| Heater Capacity | kW | 13 | 15 | 15 |
| Operating Air Pressure | MPa | 2.0-2.5 | 2.0-2.5 | 2.0-2.5 |
| Cooling Water | bar | 2.0-3.0 | 2.0-3.0 | 2.0-3.0 |
| Dimension of Machine | m | 3.3*1.35*2.7 | 3.7*1.6*2.6 | 4.5*2*2.7 |
| Machine Weight | kgs | 6000 | 7000 | 13000 |
| Bottle Volume | ml | |||
| Suitable Material | abbr. | PC, PMMA, AS, PA, SAN, PETG, PCTG | ||
| The above parameters are only for reference. Actual design may have changes. | ||||
| Standard Configuration/Components List of Automatic Plastics Injection Blow Molding Machinery, IBM Machines WIB42LED, WIB45LED, WIB52LED |
||
| No. | Item | Brand |
| 1 | All Hydraulic Valve | YUKEN |
| 2 | Variable Pump | YUKEN |
| 3 | Seal Ring | HALLITE |
| 4 | Cylinder Air Valve | SMC |
| 5 | Air Cylinder | SMC/AIRTAC |
| 6 | PLC | OMRON |
| 7 | Rotation Plant Servo Motor | OMRON |
| 8 | Low-Voltage Electrical Components | Schneider |
| 9 | Temperature Controller | OMRON |
| 10 | Reducer | Shimpo |
| 11 | Material Used for Mould | Mould Stainless Steel 2316 |
| The above info are only for reference. Actual design may have changes. | ||

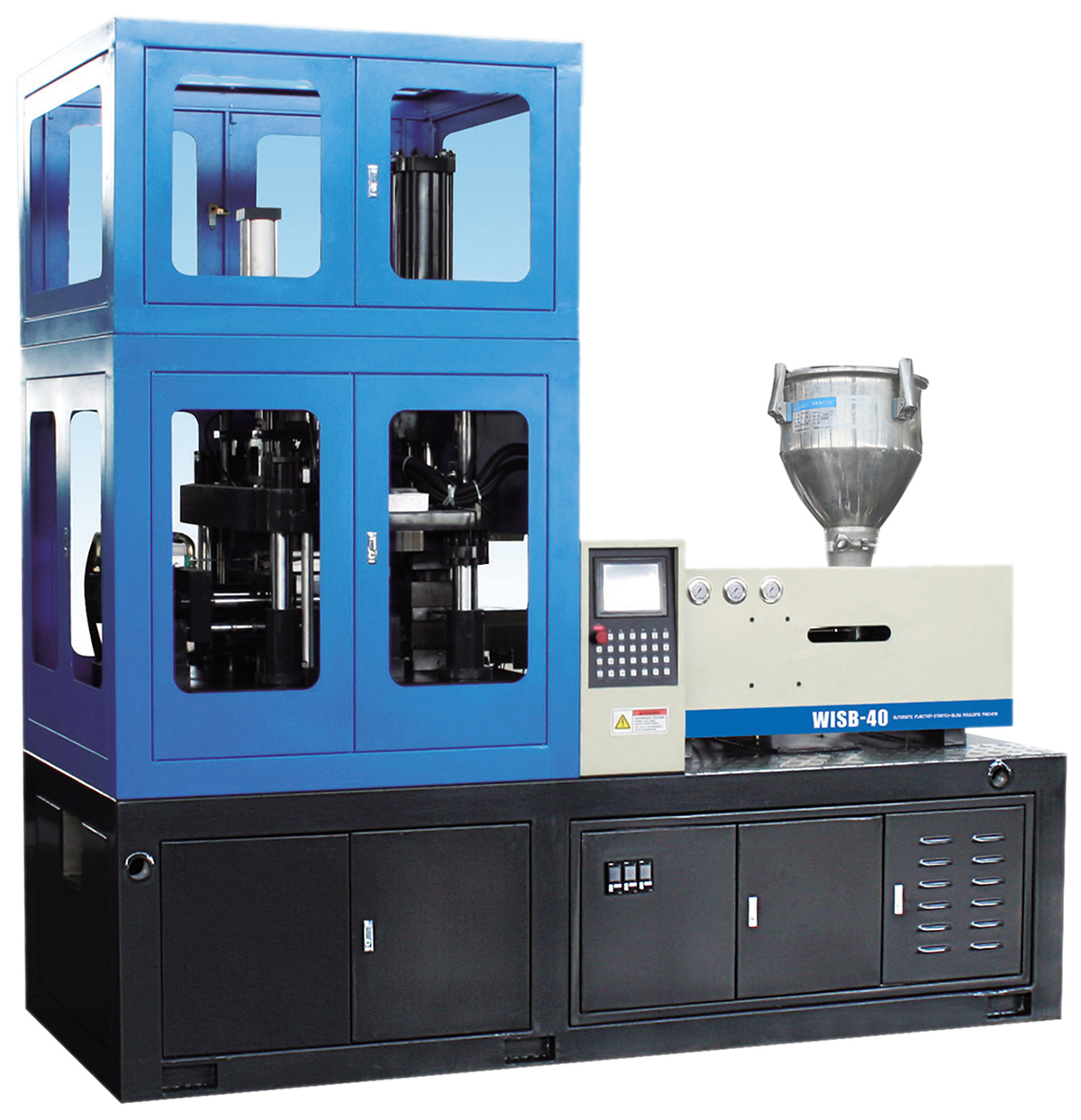

 2-Stations Automatic Plastics Injection Stretch Blow Molding Machinery ISBM Machines WISB28_WISB35_WISB40_WISB40W_WISB55L |

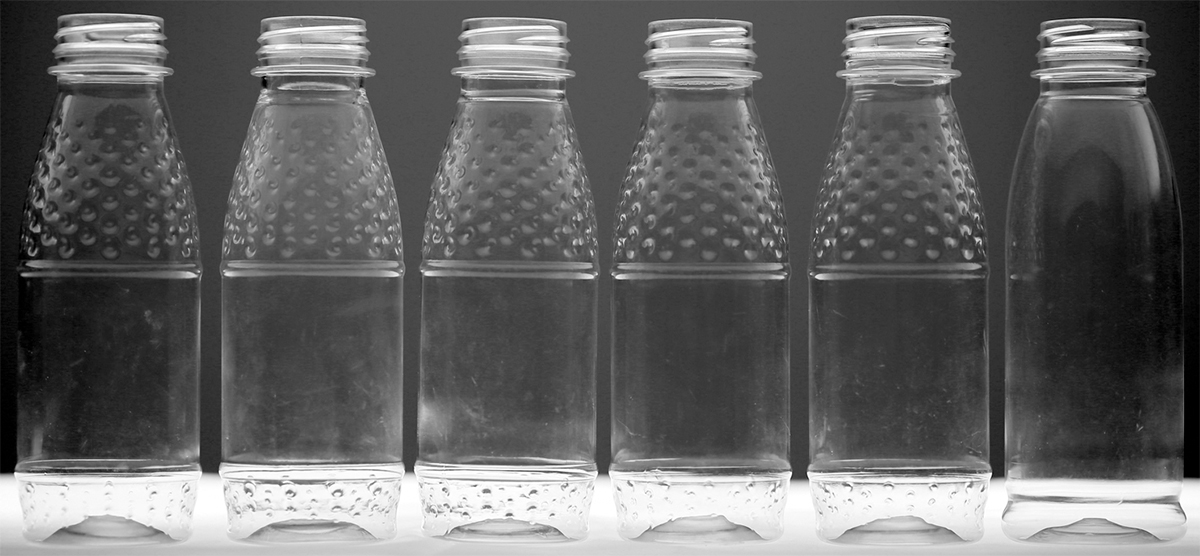

 Various Bottles Made By ISBM Machines/Molds PET_PP_PC_Tritan_PETG a |
 Various Bottles Made By ISBM Machines/Molds PET_PP_PC_Tritan_PETG b |
 Various Bottles Made By ISBM Machines/Molds PET_PP_PC_Tritan_PETG_c |
 Various Bottles Made By ISBM Machines/Molds PET_PP_PC_Tritan_PETG_d |
|
2-Stations Injection Stretch Blow Molding (ISBM) Machines for Making PET, PP, PC, Tritan, PETG Bottles/Containers This ISBM series is designed and manufactured based on combining our years of experiences and absorbing industry advanced technology. We have got couples of patents in China. Our single-step ISBM machines (from resin to bottles/containers), by directly adjusting the temperature, we have achieved the goal of less producing procedures, cleaner, lower energy consumption and high quality bottles/cotnainers. Processing materials include PET, PP, PC, Tritan, PETG, etc. |
||
| Technical Datas of 2-Stations Automatic Plastics Injection Stretch Blow Molding Machinery, ISBM Machines WISB28, WISB35, WISB40, WISB40W, WISB55L |
||||||
| Item | Unit | WISB28 | WISB35 | WISB40 | WISB40W | WISB55L |
| Screw Diameter | mm | 28 | 35 | 40 | 40 | 55 |
| Screw Speed | r/min | 0-220 | 0-220 | 0-220 | 0-220 | 0-220 |
| Theoretical Injection Capacity | g | 120 | 185 | 220 | 220 | 320 |
| Injection Clamping Force | kN | 500 | 500 | 500 | 670 | 500 |
| Blow Clamping Force | kN | 85 | 85 | 85 | 85 | 85 |
| Servo Motor Power | kW | 35+2.2 | 35+2.2 | 35+2.2 | 35+2.2 | 35+2.2 |
| Heater Capacity | kW | 13 | 13 | 13 | 13 | 15 |
| Operating Air Pressure | MPa | 2.0-3.0 | 2.0-3.0 | 2.0-3.0 | 2.0-3.0 | 2.0-3.0 |
| Cooling Water | bar | 2-3 | 2-3 | 2-3 | 2-3 | 2.0-3.0 |
| Dimension of Machine | m | 3.5*1.5*3.56 | 3.5*1.5*3.56 | 3.5*1.5*3.2 | 3.5*1.5*3.56 | 3.5*1.5*4.45 |
| Machine Weight | kgs | 6000 | 6000 | 6000 | 6000 | 7500 |
| Bottle Volume | ml | |||||
| Suitable Material | abbr. | PET, PP, PC, Tritan, PETG | ||||
| The above parameters are only for reference. Actual design may have changes. | ||||||
| Standard Configuration/Components List of 2-Stations Automatic Plastics Injection Stretch Blow Molding Machinery, ISBM Machines WISB28, WISB35, WISB40, WISB40W, WISB55L |
||
| No. | Item | Brand |
| 1 | All Hydraulic Valve | YUKEN |
| 2 | Servo Motor System (Motor+Pump) | VEICHI+SUMITOMO |
| 3 | Seal Ring | HALLITE |
| 4 | Cylinder Air Valve | SMC |
| 5 | Air Cylinder | SMC/AIRTAC |
| 6 | PLC | OMRON |
| 7 | Rotation Plant Servo Motor | OMRON |
| 8 | Low-Voltage Electrical Components | Schneider |
| 9 | Temperature Controller | OMRON |
| 10 | Material Used for Mould | Mould Stainless Steel 2316 |
| The above info are only for reference. Actual design may have changes. | ||

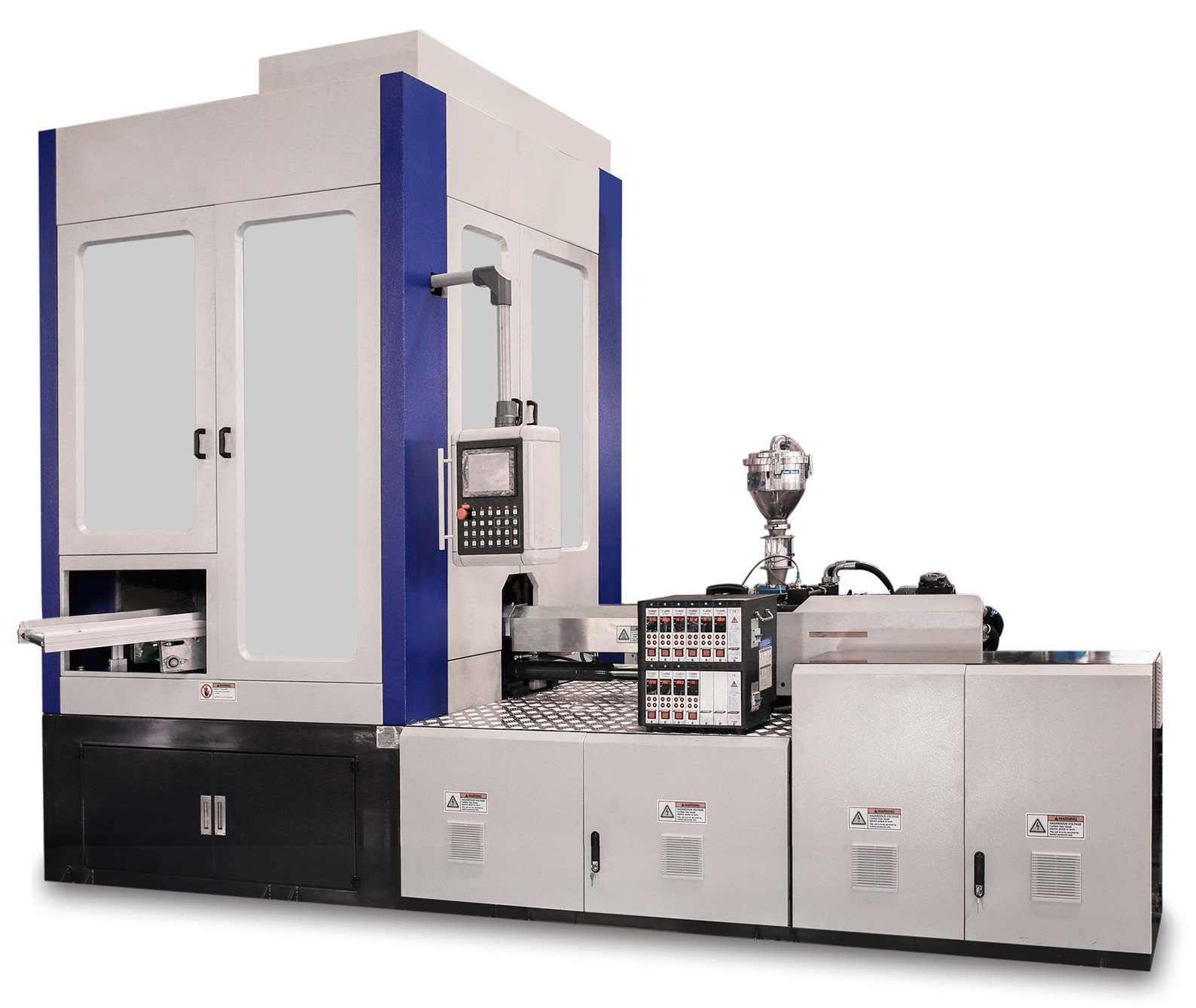

 3-Stations Automatic Plastics Injection Stretch Blow Molding Machinery ISBM Machines WISB-III-40 |
Various Bottles Made By ISBM Machines/Molds PET_PP_PC_Tritan_PETG a |
Various Bottles Made By ISBM Machines/Molds PET_PP_PC_Tritan_PETG b |
| Various Bottles Made By ISBM Machines/Molds PET_PP_PC_Tritan_PETG_c |
Various Bottles Made By ISBM Machines/Molds PET_PP_PC_Tritan_PETG_d |
|
3-Stations Injection Stretch Blow Molding (ISBM) Machines for Making PET, PP, PC, Tritan, PETG Bottles/Containers This ISBM series is designed and manufactured based on combining our years of experiences and absorbing industry advanced technology. We have got couples of patents in China. Our single-step ISBM machines (from resin to bottles/containers), by directly adjusting the temperature, we have achieved the goal of less producing procedures, cleaner, lower energy consumption and high quality bottles/cotnainers. Processing materials include PET, PP, PC, Tritan, PETG, etc. |
||
| Technical Datas of 3-Stations Automatic Plastics Injection Stretch Blow Molding Machinery, ISBM Machines Model WISBIII-40, WISBIII-88AL |
||||||||||
| Item | Unit | WISB-III-40 | ||||||||
| Suitable Materials | PET, PP, PETG | |||||||||
| Screw Diameter | mm | 35 | 40 | 44 | ||||||
| Theoretical Injection Capacity | cm3 | 134.6 | 175.8 | 220.3 | ||||||
| Injection Capacity | g | 105 | 137 | 171 | ||||||
| Screw Speed | r/min | 0-180 | ||||||||
| Injection Clamping Force | kN | 282.6 | ||||||||
| Blow Clamping Force | kN | 203.4 | ||||||||
| Servo Motor Power | kW | 26+26 | ||||||||
| Heater Capacity | kW | 11 | ||||||||
| Operating Air Pressure | MPa | 2.5-3.0 | ||||||||
| Cooling Water | MPa | 0.2-0.3 | ||||||||
| Dimension of Machine | m | 4.50*1.85*3.30 | ||||||||
| Machine Weight | kgs | 10,000 | ||||||||
| Bottles Specification | ||||||||||
| Cavity Number |  |
1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
| Thread Diameter (E), mm | 85 | 60 | 48 | 42 | 37 | 32 | 24 | 22 | 16 | |
| Body Diameter (BD), mm | 110 | 110 | 110 | 85 | 66 | 55 | 48 | 40 | 30 | |
| Max. Height (H), mm | 230 | 230 | 230 | 230 | 200 | 200 | 120 | 120 | 120 | |
| Max. Weight (W), g | 171 | 85 | 57 | 42 | 34 | 28 | 24 | 21 | 19 | |
| 1. For PP material, some special screw is required. 2. Injection capacity is calculated according to the density of PET. 3. Hydraulic components with YUKEN from Japan/Taiwan. 4. When the diameter of bottle's bottom is bigger than 80mm, the blow mold's opening-and-closing synchronizer should be removed. 5. The above parameters are only for reference.Actual design may have changes. |
||||||||||
| Standard Components List of 3-Stations ISBM Machinery WISB-III-40 | ||
| No. | Item | Brand |
| 1 | All Hydraulic Valve | YUKEN |
| 2 | Variable Pump | YUKEN |
| 3 | Servo Pump | YUKEN/SUMITOMO/PARKER |
| 4 | Servo Motor | WEICHI |
| 5 | Seal Ring | HALLITE |
| 6 | Cylinder Air Valve | SMC |
| 7 | Air Cylinder | SMC/AIRTAC |
| 8 | PLC | OMRON |
| 9 | Rotation Plant Servo Motor | OMRON |
| 10 | Low-voltage electrical components | SCHNEIDER |
| 11 | Temperature controller | ARICO |
| 12 | Material used for mould | MOLD STEEL2316 |
| 13 | Hydraulic Hose | ALFAGOMMA |
| 14 | Blowing Valve | SMC |
| 15 | Low-pressure Cylinder | AIRTAC |
| 16 | Low-pressure Valve | SMC |
| 17 | High-pressure Valve | SMC |
| 18 | Reducer | SHIMPO |
| 19 | Photoelectric Sensors | OMRON |
| 20 | Light Curtain | FOTEK |
| 21 | Linear Displacement Sensor | GEFRAN |
| The brands of the above table's servo motors, pumps are confirmed, while others components might be adjusted according to technology improvements. | ||
