Pimpex@RPM - Xiamen RPM Imp.&Exp. Co.Ltd.

Pimpex@RPM introduces this manufacturer who could make plastics co-extrusion blow molding (EBM) machines for 4 multilayers small bottles & containers. View online Catalogue!
EBM Factory Building & Workshop

With more than 10 years professional experiences on EBM machinery design and production, this manufacturer's plastics extrusion blow molding (EBM) machines could make upto 4 multilayers small bottles & containers with materials from outer to inner like HDPE, Regrind HDPE, Adhesive, PA or EVOH.

Its new workshop covers 10,000 square meters area all for professionally produce full hydraulic bottle blowing machinery. Many experienced engineers could offer debugging, commissioning, maintenance works to satisfy customers.

This manufacturer syncretizes some advanced Germany & Italy blowing technology, and adopts high standard configuration and excellent components to ensure the high performance, high speed, low energy consumption, reliable & stable machinery quality of its full automatic computerized hydraulic bottles blowing machinery.

According to customers' requirements, this manufacturer will suggest single die head, dual die heads, triple die heads, four die heads, six die heads or eight die heads per station, and suggest single layer, dual layers, triple layers, or four layers die head to customers.

Its EBM machines could be used to blow various plastics like PE, PP, PS, PVC, PMMA, PC, PETG, PET into hollow bottles & containers, which could be from 5ml to 1,000L widely used in packaging cosmetics, beverages, detergents, cleansers, drugs, medicines, engine lubricating oils, and for plastics toys, etc. Moreover, some touch screen control PET stretch blow molding machine is available too.

The advantage of this manufacturer's EBM machinery is in adopting high stardard configuration and excellent components to satisfy customers who will purchase from us high performances, high quality EBM machinery at reasonable prices, and to gain maximum profit margins and grasp market opportunities with our excellent EBM machinery.

Not to be the No.1 market occupancy, but to the best in the market! To supply high stardard EBM machinery, to keep good reputation in the EBM market, to keep moving on EBM technology to meet with customers' requirements.

Customers should provide us detailed drawings/pictures of plastics bottles/containers indicating materials, sizes, thickwalls, layers, weights, outputs requirements, thus our EBM engineers could suggest most suitable solution for customers.

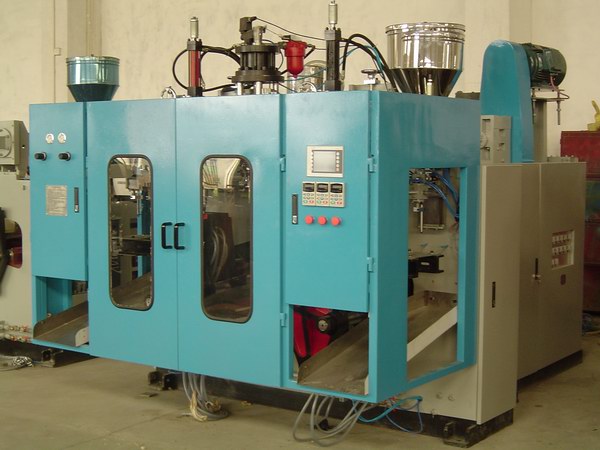

Multilayers Plastics Extrusion Blow Molding (EBM) Machine, Special For Pesticides Bottles

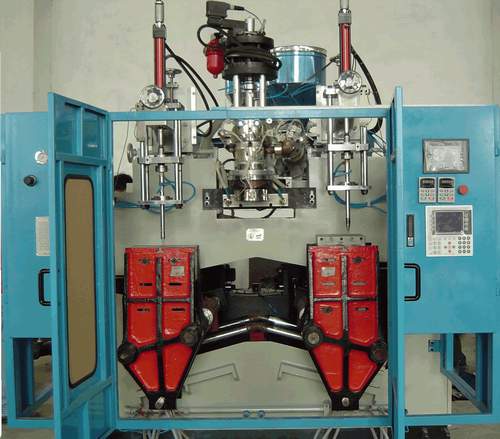

Multilayers Plastics Extrusion Blow Molding (EBM) Machine SJY-M, Special For Pesticides Bottles

Main Features:

  • To adopt touch screen computer with Chinese/English interface

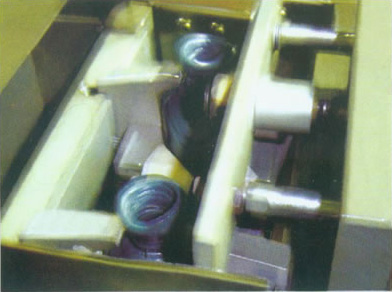

  • Optional automatic flashes trimming device
  • Extruder motor regulated with frequency inverter

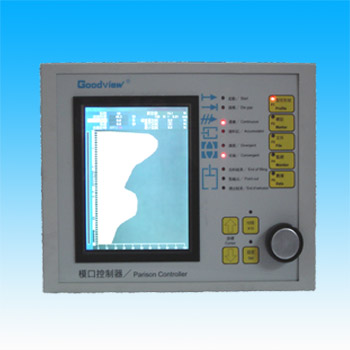

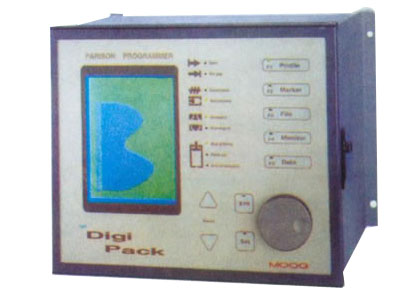

  • Optional servo parison wall thickness controller
  • To adopt Germany Rexroth hydraulic components

Key Components List - High Standard Configuration & Excellent Quality

  • Electricity System
    • Control Computer: Special high speed computer from Japan Mitsubishi or Austria B&R. Colorful full touch sceen control with special computer temperature control module. Full computer type means flow, pressure, temperature, speed, automatic output counting, automatic reset, automatic failure display all directly controlled by a computer.
    • Parison Wall Thickness Control: Special high speed wall thickness computer from Austria B&R or Japan MOOG. Most convenient operations, most accurate controls, most stable running on wall thickness control. Parison wall thickness control is very important on improving the quality of bottles & containers, reducing the cost of raw materials.
    • Frequency Inverter: Taiwan Delta or Japan Fuji
    • Contactor: Japan Fuji
  • Hydraulic System
    • Hydraulic Directional Valve: USA Vickers, high speed high efficiency energy saving hydraulic system to largely improve the reliability and enlong the service life of hydraulic system.
    • Hydraulic Pump: Taiwan Hytek, low noise high performances.
    • Proportional Valve: Taiwan Hytek or Taiwan Yuken
    • Servo Valve for Parison Wall Thickness: Italy ATOS or Japan MOOG, highest performance and response accuracy.
    • Braking System: Imported foreign technology to ensure rapid & stable & non-impact frame-swing.
  • Extrusion System
    • Screw & Extrusion Cylinder (Machine Barrel): Top-grade 38CrMoALA nitriding steel with nitriding depth 0.4-0.5mm, hardness HV900, high hardness high wearable performance.
    • Screw: High mixing plasticized screw for high efficiency plasticization.
    • Extrusion Oil Pump's Motor: 6 levels motor, which is much lower noise, higher torsional moment, longer service life compared with common 4 levels motor.
    • Reduction Gear Box: 20CrMnTi high intension alloy steel with hard tooth surface, which has been carburized and quenched and gear grinded.
  • Diehead System
    • Diehead: Electroplated alloy steel for diehead, whose sprue runner is designed in an advanced and scientific way.
    • Mould Clamping Plate: High intension cast iron.
Model SJY-55-45-45-35-2
Screws Diameter, mm 55, 45, 45, 35
(4 Screws for 4 Multilayers)
Screw's Length/Diameter Ratio 24:1
Plasticizing Capacity, Kgs/hr 35, 25, 25, 20
Extrusion Power, KW 7.5
Screw Barrel's Heating Power, KW 8
Diehead's Heating Power, KW 2.5
Oil Pump's Motor Power, KW 7.5
Minimum Mold-close Distance, mm 100
Maximum Mold-open Distance, mm 350
Maximum Mold, Width*Height, mm 250*230
Empty Cycle Time, Second 3.6
Clamping Force, KN 35
Working Pressure, Bar 4-6
Overall Sizes, Meter 2.65*2.1*2.1
Gross Weight, Kgs ~3,200

The above configuration is for customer's reference only, final configuration is according to the signed/stamped contract.

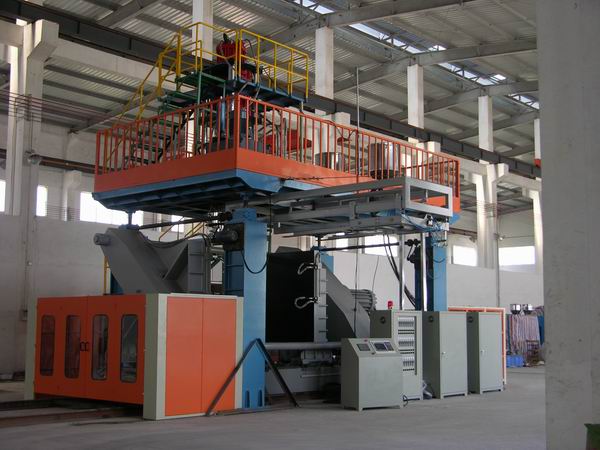

Storage Type Plastics Extrusion Blow Molding (EBM) Machine SJY1000S, For 1000L Bottles or Containers

Storage Type Plastics Extrusion Blow Molding (EBM) Machine SJY1000S, For 1000L Bottles or Containers

Main Features:

  • Schism structure of separate platen unit for easy installation of mould
  • To adopt Germany Rexroth hydraulic components, to consider energy-saving design on hydraulic system
  • To adopt touch screen computer for centralized control, automatic failure diagnosis & alarm
  • Upto 100 points setting servo parison wall thickness control

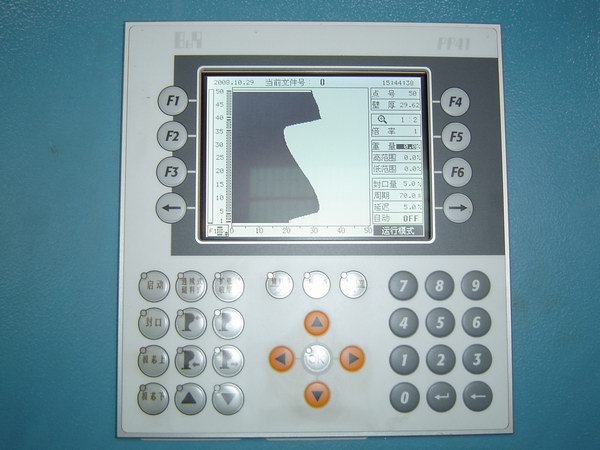

  • 10.4 inches Austria B&R touch screen
  • Extruder motor regulated with frequency inverter

Key Components List - High Standard Configuration & Excellent Quality

  • Electricity System
    • Control Computer: Special high speed computer from Japan Mitsubishi or Austria B&R. Colorful full touch sceen control with special computer temperature control module. Full computer type means flow, pressure, temperature, speed, automatic output counting, automatic reset, automatic failure display all directly controlled by a computer.
    • Parison Wall Thickness Control: Special high speed wall thickness computer from Austria B&R or Japan MOOG. Most convenient operations, most accurate controls, most stable running on wall thickness control. Parison wall thickness control is very important on improving the quality of bottles & containers, reducing the cost of raw materials.
    • Frequency Inverter: Taiwan Delta or Japan Fuji
    • Contactor: Japan Fuji
  • Hydraulic System
    • Hydraulic Directional Valve: USA Vickers, high speed high efficiency energy saving hydraulic system to largely improve the reliability and enlong the service life of hydraulic system.
    • Hydraulic Pump: Taiwan Hytek, low noise high performances.
    • Proportional Valve: Taiwan Hytek or Taiwan Yuken
    • Servo Valve for Parison Wall Thickness: Italy ATOS or Japan MOOG, highest performance and response accuracy.
    • Braking System: Imported foreign technology to ensure rapid & stable & non-impact frame-swing.
  • Extrusion System
    • Screw & Extrusion Cylinder (Machine Barrel): Top-grade 38CrMoALA nitriding steel with nitriding depth 0.4-0.5mm, hardness HV900, high hardness high wearable performance.
    • Screw: High mixing plasticized screw for high efficiency plasticization.
    • Extrusion Oil Pump's Motor: 6 levels motor, which is much lower noise, higher torsional moment, longer service life compared with common 4 levels motor.
    • Reduction Gear Box: 20CrMnTi high intension alloy steel with hard tooth surface, which has been carburized and quenched and gear grinded.
  • Diehead System
    • Diehead: Electroplated alloy steel for diehead, whose sprue runner is designed in an advanced and scientific way.
    • Mould Clamping Plate: High intension cast iron.

The above configuration is for customer's reference only, final configuration is according to the signed/stamped contract.

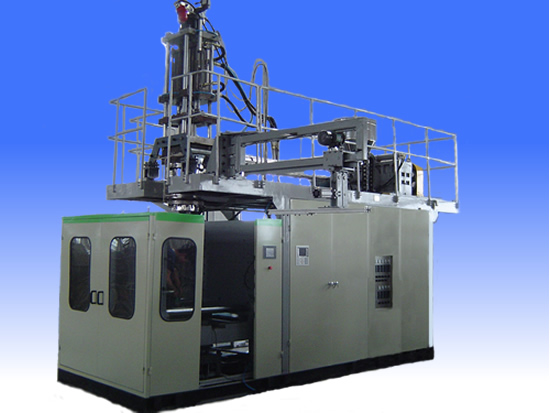

Storage Type Plastics Extrusion Blow Molding (EBM) Machine SJY85S, For 20L Bottles or Containers (20L-125L)

Storage Type Plastics Extrusion Blow Molding (EBM) Machine SJY85S, For 20L Bottles or Containers (20L-125L)

Main Features:

  • Schism structure of separate platen unit for easy installation of mould
  • All to adopt Germany Rexroth hydraulic components
  • To adopt touch screen computer for centralized control, automatic failure diagnosis & alarm
  • Pin-blowing stretch device
  • 50-100 points setting servo parison wall thickness control
  • Optional 3Kgs-15Kgs materials storage in accumulator die head for customers' choosing

Key Components List - High Standard Configuration & Excellent Quality

  • Electricity System
    • Control Computer: Special high speed computer from Japan Mitsubishi or Austria B&R. Colorful full touch sceen control with special computer temperature control module. Full computer type means flow, pressure, temperature, speed, automatic output counting, automatic reset, automatic failure display all directly controlled by a computer.
    • Parison Wall Thickness Control: Special high speed wall thickness computer from Austria B&R or Japan MOOG. Most convenient operations, most accurate controls, most stable running on wall thickness control. Parison wall thickness control is very important on improving the quality of bottles & containers, reducing the cost of raw materials.
    • Frequency Inverter: Taiwan Delta or Japan Fuji
    • Contactor: Japan Fuji
  • Hydraulic System
    • Hydraulic Directional Valve: USA Vickers, high speed high efficiency energy saving hydraulic system to largely improve the reliability and enlong the service life of hydraulic system.
    • Hydraulic Pump: Taiwan Hytek, low noise high performances.
    • Proportional Valve: Taiwan Hytek or Taiwan Yuken
    • Servo Valve for Parison Wall Thickness: Italy ATOS or Japan MOOG, highest performance and response accuracy.
    • Braking System: Imported foreign technology to ensure rapid & stable & non-impact frame-swing.
  • Extrusion System
    • Screw & Extrusion Cylinder (Machine Barrel): Top-grade 38CrMoALA nitriding steel with nitriding depth 0.4-0.5mm, hardness HV900, high hardness high wearable performance.
    • Screw: High mixing plasticized screw for high efficiency plasticization.
    • Extrusion Oil Pump's Motor: 6 levels motor, which is much lower noise, higher torsional moment, longer service life compared with common 4 levels motor.
    • Reduction Gear Box: 20CrMnTi high intension alloy steel with hard tooth surface, which has been carburized and quenched and gear grinded.
  • Diehead System
    • Diehead: Electroplated alloy steel for diehead, whose sprue runner is designed in an advanced and scientific way.
    • Mould Clamping Plate: High intension cast iron.
Model SJY85S
Screw Diameter, mm 85
Screw's Length/Diameter Ratio 26:1
Plasticizing Capacity, Kgs/hr 70
Extrusion Power, KW 22
Screw Barrel's Heating Power, KW 18.5
Diehead's Heating Power, KW 12
Volume of Storaged Materials (Die Head Capacity), Litre 3
Oil Pump's Motor Power, KW 18.5+4
Minimum Mold-close Distance, mm 350
Maximum Mold-open Distance, mm 900
Maximum Mold, Width*Height, mm 450*600
Blowing Capacity (Tank Blown), Litre 20
Empty Cycle Time, Second 12
Clamping Force, KN 150
Working Pressure, Bar 5-8
Overall Sizes, Meter 4.1*2.1*3.2
Gross Weight, Kg ~10,500
Total Installed Capacity, KVA 75

The above configuration is for customer's reference only, final configuration is according to the signed/stamped contract.

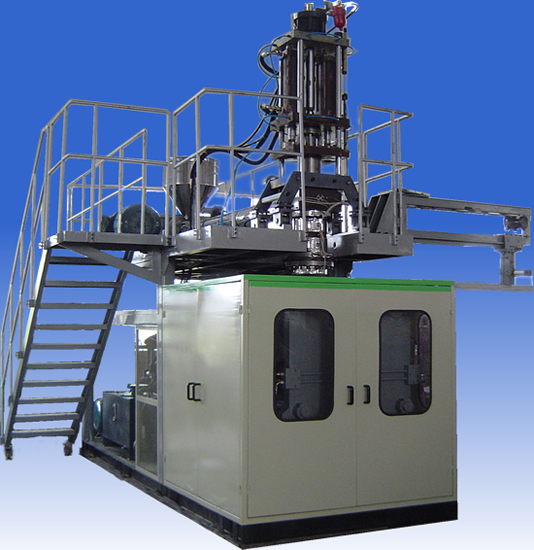

Storage Type Plastics Extrusion Blow Molding (EBM) Machine SJY90S, For 35L Bottles or Containers (20L-125L)

Storage Type Plastics Extrusion Blow Molding (EBM) Machine SJY90S, For 35L Bottles or Containers (20L-125L)

Main Features:

  • Schism structure of separate platen unit for easy installation of mould
  • All to adopt Germany Rexroth hydraulic components
  • To adopt touch screen computer for centralized control, automatic failure diagnosis & alarm
  • Pin-blowing stretch device
  • 50-100 points setting servo parison wall thickness control
  • Optional 3Kgs-15Kgs materials storage in accumulator die head for customers' choosing

Key Components List - High Standard Configuration & Excellent Quality

  • Electricity System
    • Control Computer: Special high speed computer from Japan Mitsubishi or Austria B&R. Colorful full touch sceen control with special computer temperature control module. Full computer type means flow, pressure, temperature, speed, automatic output counting, automatic reset, automatic failure display all directly controlled by a computer.
    • Parison Wall Thickness Control: Special high speed wall thickness computer from Austria B&R or Japan MOOG. Most convenient operations, most accurate controls, most stable running on wall thickness control. Parison wall thickness control is very important on improving the quality of bottles & containers, reducing the cost of raw materials.
    • Frequency Inverter: Taiwan Delta or Japan Fuji
    • Contactor: Japan Fuji
  • Hydraulic System
    • Hydraulic Directional Valve: USA Vickers, high speed high efficiency energy saving hydraulic system to largely improve the reliability and enlong the service life of hydraulic system.
    • Hydraulic Pump: Taiwan Hytek, low noise high performances.
    • Proportional Valve: Taiwan Hytek or Taiwan Yuken
    • Servo Valve for Parison Wall Thickness: Italy ATOS or Japan MOOG, highest performance and response accuracy.
    • Braking System: Imported foreign technology to ensure rapid & stable & non-impact frame-swing.
  • Extrusion System
    • Screw & Extrusion Cylinder (Machine Barrel): Top-grade 38CrMoALA nitriding steel with nitriding depth 0.4-0.5mm, hardness HV900, high hardness high wearable performance.
    • Screw: High mixing plasticized screw for high efficiency plasticization.
    • Extrusion Oil Pump's Motor: 6 levels motor, which is much lower noise, higher torsional moment, longer service life compared with common 4 levels motor.
    • Reduction Gear Box: 20CrMnTi high intension alloy steel with hard tooth surface, which has been carburized and quenched and gear grinded.
  • Diehead System
    • Diehead: Electroplated alloy steel for diehead, whose sprue runner is designed in an advanced and scientific way.
    • Mould Clamping Plate: High intension cast iron.
Model SJY90S
Screw Diameter, mm 90
Screw's Length/Diameter Ratio 26:1
Plasticizing Capacity, Kgs/hr 100
Extrusion Power, KW 30
Screw Barrel's Heating Power, KW 21
Diehead's Heating Power, KW 16
Volume of Storaged Materials (Die Head Capacity), Litre 4.5
Oil Pump's Motor Power, KW 22+4
Minimum Mold-close Distance, mm 400
Maximum Mold-open Distance, mm 1000
Maximum Mold, Width*Height, mm 700*720
Blowing Capacity, Litre 35
Empty Cycle Time, Second 16
Clamping Force, KN 220
Working Pressure, Bar 5-8
Overall Sizes, Meter 4.4*3.3*3.8
Gross Weight, Kg ~12,000
Total Installed Capacity, KVA 93

The above configuration is for customer's reference only, final configuration is according to the signed/stamped contract.

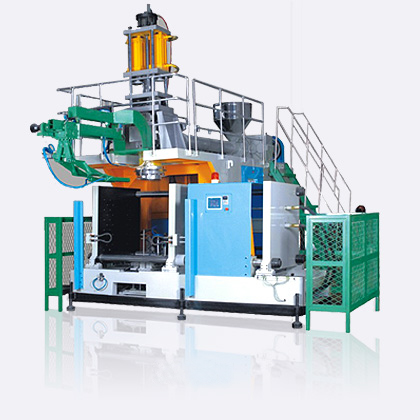

Storage Type Plastics Extrusion Blow Molding (EBM) Machine SJY100S, For 50L Bottles or Containers (20L-125L)

Storage Type Plastics Extrusion Blow Molding (EBM) Machine SJY100S, For 50L Bottles or Containers (20L-125L)

Main Features:

  • Schism structure of separate platen unit for easy installation of mould
  • All to adopt Germany Rexroth hydraulic components
  • To adopt touch screen computer for centralized control, automatic failure diagnosis & alarm
  • Pin-blowing stretch device
  • 50-100 points setting servo parison wall thickness control
  • Optional 3Kgs-15Kgs materials storage in accumulator die head for customers' choosing

Key Components List - High Standard Configuration & Excellent Quality

  • Electricity System
    • Control Computer: Special high speed computer from Japan Mitsubishi or Austria B&R. Colorful full touch sceen control with special computer temperature control module. Full computer type means flow, pressure, temperature, speed, automatic output counting, automatic reset, automatic failure display all directly controlled by a computer.
    • Parison Wall Thickness Control: Special high speed wall thickness computer from Austria B&R or Japan MOOG. Most convenient operations, most accurate controls, most stable running on wall thickness control. Parison wall thickness control is very important on improving the quality of bottles & containers, reducing the cost of raw materials.
    • Frequency Inverter: Taiwan Delta or Japan Fuji
    • Contactor: Japan Fuji
  • Hydraulic System
    • Hydraulic Directional Valve: USA Vickers, high speed high efficiency energy saving hydraulic system to largely improve the reliability and enlong the service life of hydraulic system.
    • Hydraulic Pump: Taiwan Hytek, low noise high performances.
    • Proportional Valve: Taiwan Hytek or Taiwan Yuken
    • Servo Valve for Parison Wall Thickness: Italy ATOS or Japan MOOG, highest performance and response accuracy.
    • Braking System: Imported foreign technology to ensure rapid & stable & non-impact frame-swing.
  • Extrusion System
    • Screw & Extrusion Cylinder (Machine Barrel): Top-grade 38CrMoALA nitriding steel with nitriding depth 0.4-0.5mm, hardness HV900, high hardness high wearable performance.
    • Screw: High mixing plasticized screw for high efficiency plasticization.
    • Extrusion Oil Pump's Motor: 6 levels motor, which is much lower noise, higher torsional moment, longer service life compared with common 4 levels motor.
    • Reduction Gear Box: 20CrMnTi high intension alloy steel with hard tooth surface, which has been carburized and quenched and gear grinded.
  • Diehead System
    • Diehead: Electroplated alloy steel for diehead, whose sprue runner is designed in an advanced and scientific way.
    • Mould Clamping Plate: High intension cast iron.
Model SJY100S
Screw Diameter, mm 100
Screw's Length/Diameter Ratio 28:1
Plasticizing Capacity, Kgs/hr 120
Extrusion Power, KW 37
Screw Barrel's Heating Power, KW 26
Diehead's Heating Power, KW 19
Volume of Storaged Materials (Die Head Capacity), Litre 6.5
Oil Pump's Motor Power, KW 22+4
Minimum Mold-close Distance, mm 450
Maximum Mold-open Distance, mm 1100
Maximum Mold, Width*Height, mm 750*900
Blowing Capacity, Litre 50
Empty Cycle Time, Second 18
Clamping Force, KN 250
Working Pressure, Bar 5-8
Overall Sizes, Meter 4.8*3.9*4.1
Gross Weight, Kg ~13,500
Total Installed Capacity, KVA 108

The above configuration is for customer's reference only, final configuration is according to the signed/stamped contract.
Storage Type Plastics Extrusion Blow Molding (EBM) Machine SJY100S, For 125L Bottles or Containers (20L-125L)

Storage Type Plastics Extrusion Blow Molding (EBM) Machine SJY100S, For 125L Bottles or Containers (20L-125L)

Coming later on...

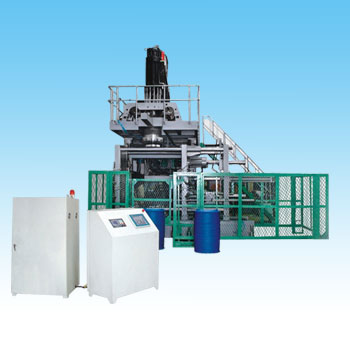

Storage Type Plastics Extrusion Blow Molding (EBM) Machine SJY120S, For 230L Bottles or Containers

Storage Type Plastics Extrusion Blow Molding (EBM) Machine SJY120S, For 230L Bottles or Containers

Main Features:

  • Schism structure of separate platen unit for easy installation of mould
  • All to adopt Germany Rexroth hydraulic components, to consider energy-saving design on hydraulic system
  • To adopt touch screen computer for centralized control, automatic failure diagnosis & alarm
  • Pin-blowing stretch device
  • 100 points setting servo parison wall thickness control
  • Extruder motor regulated with frequency inverter

Key Components List - High Standard Configuration & Excellent Quality

  • Electricity System
    • Control Computer: Special high speed computer from Japan Mitsubishi or Austria B&R. Colorful full touch sceen control with special computer temperature control module. Full computer type means flow, pressure, temperature, speed, automatic output counting, automatic reset, automatic failure display all directly controlled by a computer.
    • Parison Wall Thickness Control: Special high speed wall thickness computer from Germany Beckoff 300 Points. Most convenient operations, most accurate controls, most stable running on wall thickness control. Parison wall thickness control is very important on improving the quality of bottles & containers, reducing the cost of raw materials.
    • Frequency Inverter: Taiwan Delta or Japan Fuji
    • Contactor: Japan Fuji
  • Hydraulic System
    • Hydraulic Directional Valve: USA Vickers, high speed high efficiency energy saving hydraulic system to largely improve the reliability and enlong the service life of hydraulic system.
    • Hydraulic Pump: Taiwan Hytek, low noise high performances.
    • Proportional Valve: Taiwan Hytek or Taiwan Yuken
    • Servo Valve for Parison Wall Thickness: Italy ATOS or Japan MOOG, highest performance and response accuracy.
    • Braking System: Imported foreign technology to ensure rapid & stable & non-impact frame-swing.
  • Extrusion System
    • Screw & Extrusion Cylinder (Machine Barrel): Top-grade 38CrMoALA nitriding steel with nitriding depth 0.4-0.5mm, hardness HV900, high hardness high wearable performance.
    • Screw: High mixing plasticized screw for high efficiency plasticization.
    • Extrusion Oil Pump's Motor: 6 levels motor, which is much lower noise, higher torsional moment, longer service life compared with common 4 levels motor.
    • Reduction Gear Box: 20CrMnTi high intension alloy steel with hard tooth surface, which has been carburized and quenched and gear grinded.
  • Diehead System
    • Diehead: Electroplated alloy steel for diehead, whose sprue runner is designed in an advanced and scientific way.
    • Mould Clamping Plate: High intension cast iron.
Model SJY120S
Screw Diameter, mm 120
Screw's Length/Diameter Ratio 30:1
Plasticizing Capacity, Kgs/hr 280
Extrusion Power, KW 90
Screw Barrel's Heating Power, KW 43
Diehead's Heating Power, KW 30
Volume of Storaged Materials (Die Head Capacity), Litre 18
Oil Pump's Motor Power, KW 37+11
Minimum Mold-close Distance, mm 700
Maximum Mold-open Distance, mm 1700
Maximum Mold, Width*Height, mm 900*1200
Blowing Capacity, Litre 230
Empty Cycle Time, Second 22
Clamping Force, KN 760
Working Air Pressure, Bar 5-8
Overall Sizes, Meter 7.9*5.7*5.3
Gross Weight, Kgs ~30,000
Total Installed Capacity, KVA 225

The above configuration is for customer's reference only, final configuration is according to the signed/stamped contract.
Continuous Type Plastics Extrusion Blow Molding (EBM) Machine SJY452, For Bottles Containers

Continuous Type Plastics Extrusion Blow Molding (EBM) Machine SJY452, For Bottles Containers

Main Features:

  • To adopt touch screen computer with Chinese/English interface
  • Optional automatic flashes trimming device
  • Extruder motor regulated with frequency inverter
  • Optional servo parison wall thickness control
  • All to adopt Germany Rexroth hydraulic components

Key Components List - High Standard Configuration & Excellent Quality

  • Electricity System
    • Control Computer: Special high speed computer from Japan Mitsubishi or Austria B&R. Colorful full touch sceen control with special computer temperature control module. Full computer type means flow, pressure, temperature, speed, automatic output counting, automatic reset, automatic failure display all directly controlled by a computer.
    • Parison Wall Thickness Control: Special high speed wall thickness computer from Austria B&R or Japan MOOG. Most convenient operations, most accurate controls, most stable running on wall thickness control. Parison wall thickness control is very important on improving the quality of bottles & containers, reducing the cost of raw materials.
    • Frequency Inverter: Taiwan Delta or Japan Fuji
    • Contactor: Japan Fuji
  • Hydraulic System
    • Hydraulic Directional Valve: USA Vickers, high speed high efficiency energy saving hydraulic system to largely improve the reliability and enlong the service life of hydraulic system.
    • Hydraulic Pump: Taiwan Hytek, low noise high performances.
    • Proportional Valve: Taiwan Hytek or Taiwan Yuken
    • Servo Valve for Parison Wall Thickness: Italy ATOS or Japan MOOG, highest performance and response accuracy.
    • Braking System: Imported foreign technology to ensure rapid & stable & non-impact frame-swing.
  • Extrusion System
    • Screw & Extrusion Cylinder (Machine Barrel): Top-grade 38CrMoALA nitriding steel with nitriding depth 0.4-0.5mm, hardness HV900, high hardness high wearable performance.
    • Screw: High mixing plasticized screw for high efficiency plasticization.
    • Extrusion Oil Pump's Motor: 6 levels motor, which is much lower noise, higher torsional moment, longer service life compared with common 4 levels motor.
    • Reduction Gear Box: 20CrMnTi high intension alloy steel with hard tooth surface, which has been carburized and quenched and gear grinded.
  • Diehead System
    • Diehead: Electroplated alloy steel for diehead, whose sprue runner is designed in an advanced and scientific way.
    • Mould Clamping Plate: High intension cast iron.
Model SJY452
Screw Diameter, mm 45
Screw's Length/Diameter Ratio 24:1
Plasticizing Capacity, Kgs/hr 25
Extrusion Power, KW 5.5
Screw Barrel's Heating Power, KW 5.5
Diehead's Heating Power, KW 2.5
Oil Pump's Motor Power, KW 5.5
Minimum Mold-close Distance, mm 80
Maximum Mold-open Distance, mm 330
Maximum Mold, Width*Height, mm 250*230
Empty Cycle Time, Second 3.6
Clamping Force, KN 22
Working Pressure, Bar 4-6
Overall Sizes, Meter 2.45*2.1*2.1
Gross Weight, Kg ~2,300

The above configuration is for customer's reference only, final configuration is according to the signed/stamped contract.
Continuous Type Plastics Extrusion Blow Molding (EBM) Machine SJY552, For Bottles Containers

Continuous Type Plastics Extrusion Blow Molding (EBM) Machine SJY552, For Bottles Containers

Main Features:

  • To adopt touch screen computer with Chinese/English interface
  • Optional automatic flashes trimming device
  • Extruder motor regulated with frequency inverter
  • Optional servo parison wall thickness control
  • All to adopt Germany Rexroth hydraulic components

Key Components List - High Standard Configuration & Excellent Quality

  • Electricity System
    • Control Computer: Special high speed computer from Japan Mitsubishi or Austria B&R. Colorful full touch sceen control with special computer temperature control module. Full computer type means flow, pressure, temperature, speed, automatic output counting, automatic reset, automatic failure display all directly controlled by a computer.
    • Parison Wall Thickness Control: Special high speed wall thickness computer from Austria B&R or Japan MOOG. Most convenient operations, most accurate controls, most stable running on wall thickness control. Parison wall thickness control is very important on improving the quality of bottles & containers, reducing the cost of raw materials.
    • Frequency Inverter: Taiwan Delta or Japan Fuji
    • Contactor: Japan Fuji
  • Hydraulic System
    • Hydraulic Directional Valve: USA Vickers, high speed high efficiency energy saving hydraulic system to largely improve the reliability and enlong the service life of hydraulic system.
    • Hydraulic Pump: Taiwan Hytek, low noise high performances.
    • Proportional Valve: Taiwan Hytek or Taiwan Yuken
    • Servo Valve for Parison Wall Thickness: Italy ATOS or Japan MOOG, highest performance and response accuracy.
    • Braking System: Imported foreign technology to ensure rapid & stable & non-impact frame-swing.
  • Extrusion System
    • Screw & Extrusion Cylinder (Machine Barrel): Top-grade 38CrMoALA nitriding steel with nitriding depth 0.4-0.5mm, hardness HV900, high hardness high wearable performance.
    • Screw: High mixing plasticized screw for high efficiency plasticization.
    • Extrusion Oil Pump's Motor: 6 levels motor, which is much lower noise, higher torsional moment, longer service life compared with common 4 levels motor.
    • Reduction Gear Box: 20CrMnTi high intension alloy steel with hard tooth surface, which has been carburized and quenched and gear grinded.
  • Diehead System
    • Diehead: Electroplated alloy steel for diehead, whose sprue runner is designed in an advanced and scientific way.
    • Mould Clamping Plate: High intension cast iron.
Model SJY552
Screw Diameter, mm 55
Screw's Length/Diameter Ratio 24:1
Plasticizing Capacity, Kgs/hr 35
Extrusion Power, KW 7.5
Screw Barrel's Heating Power, KW 8
Diehead's Heating Power, KW 2.5
Oil Pump's Motor Power, KW 7.5
Minimum Mold-close Distance, mm 100
Maximum Mold-open Distance, mm 350
Maximum Mold, Width*Height, mm 250*230
Empty Cycle Time, Second 3.6
Clamping Force, KN 35
Working Pressure, Bar 4-6
Overall Sizes, Meter 2.65*2.1*2.1
Gross Weight, Kg ~3,200

The above configuration is for customer's reference only, final configuration is according to the signed/stamped contract.
Continuous Type Plastics Extrusion Blow Molding (EBM) Machine SJY652, For Bottles Containers

Continuous Type Plastics Extrusion Blow Molding (EBM) Machine SJY652, For Bottles Containers

Main Features:

  • To adopt touch screen computer with Chinese/English interface
  • Optional automatic flashes trimming device
  • Extruder motor regulated with frequency inverter
  • Optional servo parison wall thickness control
  • All to adopt Germany Rexroth hydraulic components

Key Components List - High Standard Configuration & Excellent Quality

  • Electricity System
    • Control Computer: Special high speed computer from Japan Mitsubishi or Austria B&R. Colorful full touch sceen control with special computer temperature control module. Full computer type means flow, pressure, temperature, speed, automatic output counting, automatic reset, automatic failure display all directly controlled by a computer.
    • Parison Wall Thickness Control: Special high speed wall thickness computer from Austria B&R or Japan MOOG. Most convenient operations, most accurate controls, most stable running on wall thickness control. Parison wall thickness control is very important on improving the quality of bottles & containers, reducing the cost of raw materials.
    • Frequency Inverter: Taiwan Delta or Japan Fuji
    • Contactor: Japan Fuji
  • Hydraulic System
    • Hydraulic Directional Valve: USA Vickers, high speed high efficiency energy saving hydraulic system to largely improve the reliability and enlong the service life of hydraulic system.
    • Hydraulic Pump: Taiwan Hytek, low noise high performances.
    • Proportional Valve: Taiwan Hytek or Taiwan Yuken
    • Servo Valve for Parison Wall Thickness: Italy ATOS or Japan MOOG, highest performance and response accuracy.
    • Braking System: Imported foreign technology to ensure rapid & stable & non-impact frame-swing.
  • Extrusion System
    • Screw & Extrusion Cylinder (Machine Barrel): Top-grade 38CrMoALA nitriding steel with nitriding depth 0.4-0.5mm, hardness HV900, high hardness high wearable performance.
    • Screw: High mixing plasticized screw for high efficiency plasticization.
    • Extrusion Oil Pump's Motor: 6 levels motor, which is much lower noise, higher torsional moment, longer service life compared with common 4 levels motor.
    • Reduction Gear Box: 20CrMnTi high intension alloy steel with hard tooth surface, which has been carburized and quenched and gear grinded.
  • Diehead System
    • Diehead: Electroplated alloy steel for diehead, whose sprue runner is designed in an advanced and scientific way.
    • Mould Clamping Plate: High intension cast iron.
Model SJY652
Screw Diameter, mm 65
Screw's Length/Diameter Ratio 24:1
Plasticizing Capacity, Kgs/hr 45
Extrusion Power, KW 11
Screw Barrel's Heating Power, KW 10.8
Diehead's Heating Power, KW 3.2
Oil Pump's Motor Power, KW 7.5
Minimum Mold-close Distance, mm 115
Maximum Mold-open Distance, mm 365
Maximum Mold, Width*Height, mm 270*280
Empty Cycle Time, Second 4.3
Clamping Force, KN 45
Working Pressure, Bar 4-6
Overall Sizes, Meter 3.3*2.1*2.33
Gross Weight, Kg ~4,300

The above configuration is for customer's reference only, final configuration is according to the signed/stamped contract.
Continuous Type Plastics Extrusion Blow Molding (EBM) Machine SJY752, For Bottles Containers

Continuous Type Plastics Extrusion Blow Molding (EBM) Machine SJY752, For Bottles Containers

Main Features:

  • To adopt touch screen computer with Chinese/English interface
  • Optional automatic flashes trimming device
  • Extruder motor regulated with frequency inverter
  • Optional servo parison wall thickness control
  • All to adopt Germany Rexroth hydraulic components

Key Components List - High Standard Configuration & Excellent Quality

  • Electricity System
    • Control Computer: Special high speed computer from Japan Mitsubishi or Austria B&R. Colorful full touch sceen control with special computer temperature control module. Full computer type means flow, pressure, temperature, speed, automatic output counting, automatic reset, automatic failure display all directly controlled by a computer.
    • Parison Wall Thickness Control: Special high speed wall thickness computer from Austria B&R or Japan MOOG. Most convenient operations, most accurate controls, most stable running on wall thickness control. Parison wall thickness control is very important on improving the quality of bottles & containers, reducing the cost of raw materials.
    • Frequency Inverter: Taiwan Delta or Japan Fuji
    • Contactor: Japan Fuji
  • Hydraulic System
    • Hydraulic Directional Valve: USA Vickers, high speed high efficiency energy saving hydraulic system to largely improve the reliability and enlong the service life of hydraulic system.
    • Hydraulic Pump: Taiwan Hytek, low noise high performances.
    • Proportional Valve: Taiwan Hytek or Taiwan Yuken
    • Servo Valve for Parison Wall Thickness: Italy ATOS or Japan MOOG, highest performance and response accuracy.
    • Braking System: Imported foreign technology to ensure rapid & stable & non-impact frame-swing.
  • Extrusion System
    • Screw & Extrusion Cylinder (Machine Barrel): Top-grade 38CrMoALA nitriding steel with nitriding depth 0.4-0.5mm, hardness HV900, high hardness high wearable performance.
    • Screw: High mixing plasticized screw for high efficiency plasticization.
    • Extrusion Oil Pump's Motor: 6 levels motor, which is much lower noise, higher torsional moment, longer service life compared with common 4 levels motor.
    • Reduction Gear Box: 20CrMnTi high intension alloy steel with hard tooth surface, which has been carburized and quenched and gear grinded.
  • Diehead System
    • Diehead: Electroplated alloy steel for diehead, whose sprue runner is designed in an advanced and scientific way.
    • Mould Clamping Plate: High intension cast iron.
Model SJY752
Screw Diameter, mm 75
Screw's Length/Diameter Ratio 24:1
Plasticizing Capacity, Kgs/hr 55
Extrusion Power, KW 18.5
Screw Barrel's Heating Power, KW 13.5
Diehead's Heating Power, KW 4
Oil Pump's Motor Power, KW 11
Minimum Mold-close Distance, mm 170
Maximum Mold-open Distance, mm 480
Maximum Mold, Width*Height, mm 350*370
Empty Cycle Time, Second 4.8
Clamping Force, KN 60
Working Pressure, Bar 4-7
Overall Sizes, Meter 3.6*2.15*2.33
Gross Weight, Kg ~5,600

The above configuration is for customer's reference only, final configuration is according to the signed/stamped contract.

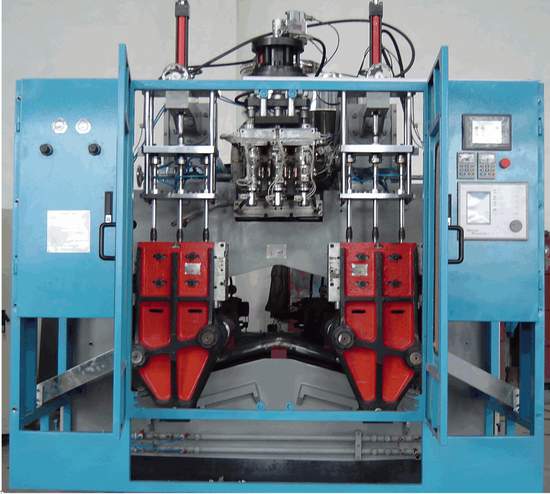

Continuous Type Plastics Extrusion Blow Molding (EBM) Machine SJY852, For Bottles Containers

Continuous Type Plastics Extrusion Blow Molding (EBM) Machine SJY852, For Bottles Containers

Main Features:

  • To adopt touch screen computer with Chinese/English interface
  • Optional automatic flashes trimming device
  • Extruder motor regulated with frequency inverter
  • Optional servo parison wall thickness control
  • All to adopt Germany Rexroth hydraulic components

Key Components List - High Standard Configuration & Excellent Quality

  • Electricity System
    • Control Computer: Special high speed computer from Japan Mitsubishi or Austria B&R. Colorful full touch sceen control with special computer temperature control module. Full computer type means flow, pressure, temperature, speed, automatic output counting, automatic reset, automatic failure display all directly controlled by a computer.
    • Parison Wall Thickness Control: Special high speed wall thickness computer from Austria B&R or Japan MOOG. Most convenient operations, most accurate controls, most stable running on wall thickness control. Parison wall thickness control is very important on improving the quality of bottles & containers, reducing the cost of raw materials.
    • Frequency Inverter: Taiwan Delta or Japan Fuji
    • Contactor: Japan Fuji
  • Hydraulic System
    • Hydraulic Directional Valve: USA Vickers, high speed high efficiency energy saving hydraulic system to largely improve the reliability and enlong the service life of hydraulic system.
    • Hydraulic Pump: Taiwan Hytek, low noise high performances.
    • Proportional Valve: Taiwan Hytek or Taiwan Yuken
    • Servo Valve for Parison Wall Thickness: Italy ATOS or Japan MOOG, highest performance and response accuracy.
    • Braking System: Imported foreign technology to ensure rapid & stable & non-impact frame-swing.
  • Extrusion System
    • Screw & Extrusion Cylinder (Machine Barrel): Top-grade 38CrMoALA nitriding steel with nitriding depth 0.4-0.5mm, hardness HV900, high hardness high wearable performance.
    • Screw: High mixing plasticized screw for high efficiency plasticization.
    • Extrusion Oil Pump's Motor: 6 levels motor, which is much lower noise, higher torsional moment, longer service life compared with common 4 levels motor.
    • Reduction Gear Box: 20CrMnTi high intension alloy steel with hard tooth surface, which has been carburized and quenched and gear grinded.
  • Diehead System
    • Diehead: Electroplated alloy steel for diehead, whose sprue runner is designed in an advanced and scientific way.
    • Mould Clamping Plate: High intension cast iron.
Model SJY852
Screw Diameter, mm 85
Screw's Length/Diameter Ratio 25:1
Plasticizing Capacity, Kgs/hr 70
Extrusion Power, KW 22
Screw Barrel's Heating Power, KW 18
Diehead's Heating Power, KW 4.5
Oil Pump's Motor Power, KW 15
Minimum Mold-close Distance, mm 220
Maximum Mold-open Distance, mm 520
Maximum Mold, Width*Height, mm 390*410
Empty Cycle Time, Second 5.6
Clamping Force, KN 90
Working Pressure, Bar 5-8
Overall Sizes, Meter 4.1*2.35*2.65
Gross Weight, Kg ~6,800

The above configuration is for customer's reference only, final configuration is according to the signed/stamped contract.
Single Purpose Machine, Plastics Extrusion Blow Molding (EBM) Machine SJYS90, Specially For 20L-125L Manikin

Single Purpose Machine, Plastics Extrusion Blow Molding (EBM) Machine SJYS90, Specially For 20L-125L Manikin

Coming later on...

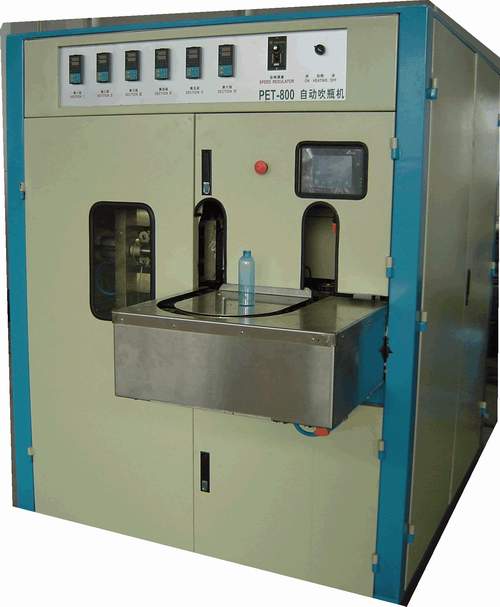

PET Stretch Blow Molding (SBM) Machine

PET Stretch Blow Molding (SBM) Machine

Key Components:

  • Mitsubishi PLC control
  • HMI touch screen, high automation level
  • Pneumatic valve imported from Japan, reliable and long service life

Main Features:

  • Heating System: Stable temperatures control, easy adjustment of heating lamps, convenient dismounting and maintenance
  • Touch screen in Chinese (English version available) working with Mitsubishi computer, HMI easy operation, with alarms display
  • Mitsubishi PLC control plus touch screen control panel, easy operations
  • Automatic feedback close loop adjustable heating system, easy operations, stable output, infrared heating with high heat efficiency, even & stable heating.
  • Clamping organ adopts penumatic cylinder to drive machine-hinge directly locking for big clamping force and fast speed, safety and reliability. Mechanical lever clamping mechanism, quick and energy saving.
  • High quality penumatic components imported from Japan to ensure high reliability and stability.
  • Reasonable design of transmission chain to ensure stable rotation of the plastic preforms.
  • Humanized design for easy operations and maintenance.
Specification PET-1000 PET-800
Mould cavities 1 2
Clamping force, Kgf 2,500 2,800
Stroke of opening mould, mm 115 115
Thickness of mould, mm 180 180
Stretch stroke, mm 350 325
Heating seat, pcs 36 60
Distance between bottles, mm 101.6 101.6
Volume blown, ml 50-1,000 50-800
Max. body diameter, mm 85 85
Max. neck diameter, mm 48 48
Max. container height, mm 250 235
Max. output, pcs/hr 1,000 1,800
Working pressure, bar 7-8 7-8
Blow air pressure, bar 25-30 25-30
Max. heating power, KW 24 36
Rated power, KW 25 37
Dimensions L*W*H, mm 2650*1500*1780 3100*1500*1780
Gross weight, Kgs 1,500 2,600

The stretch blow molding machine is suitable for the production of drink, cosmetic, medicine packaging from 50ml to 1 liter with the material of PET and PP. This machine has been sold to China domestic market and Southeast Asia countries.

Extrusion Blow Molding Machinery, Auxiliary Equipment, Servo Parison Wall Thickness Controller, Austria B&R Extrusion Blow Molding Machinery, Auxiliary Equipment, Servo Parison Wall Thickness Controller, Austria B&R
Extrusion Blow Molding Machinery, Auxiliary Equipment, Servo Controller Extrusion Blow Molding Machinery, Auxiliary Equipment, Servo Controller, MOOG
Extrusion Blow Molding Machinery, Auxiliary Equipment, Servo Wall Thickness Controller Extrusion Blow Molding Machinery, Auxiliary Equipment, Servo Wall Thickness Controller, Goodview

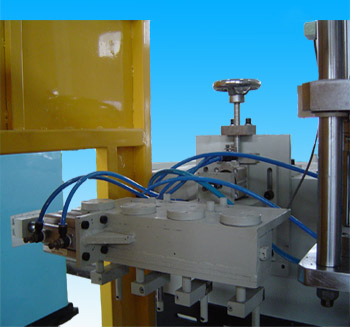

Extrusion Blow Molding Machinery, Auxiliary Equipment, Rotary Bottle Mouth Cutting Device Extrusion Blow Molding Machinery, Auxiliary Equipment, Rotary Bottle Mouth Cutting/Trimming Device
Extrusion Blow Molding Machinery, Auxiliary Equipment, Leakage Tester Extrusion Blow Molding Machinery, Auxiliary Equipment, Leakage Tester
Extrusion Blow Molding Machinery, Auxiliary Equipment, Flashes Trimming Device Extrusion Blow Molding Machinery, Auxiliary Equipment, Flashes Trimming Device

site search by freefind advanced

  RPM - Rimpex - Logo RPM - Pimpex - Logo RPM - Mimpex - Logo Loowi artToys Logo 金宮門<sup>®</sup>美饗天下
rubberimpex.com plasticimpex.com mouldimpex.com Loowi.com GoldenPalaceGate.com
  rubberplasticmould.com ibmmachine.com
 moldimpex.com
 iLoowi.com GoldenPalaceGate.cn
rpm.mobi isbmmachine.com masks machines   jindianmen.cn
wastetiresrecycle.com printing-machines.cn hot-stamping-machines.cn hot-stamping-machines.com logistics-forklifts.cn

Copyright © Pimpex@RPM Since 2002 www.gzqlh.com Sitemap XIAMEN RPM IMP.&EXP. CO.,LTD.
主站蜘蛛池模板： 亚东县| 邛崃市| 师宗县| 邵阳县| 闸北区| 新邵县| 辉县市| 东明县| 襄汾县| 栾川县| 井研县| 西吉县| 肃宁县| 漾濞| 鄂托克旗| 林甸县| 常山县| 滦南县| 嘉峪关市| 崇信县| 理塘县| 广元市| 鄂伦春自治旗| 古丈县| 平果县| 巴东县| 聊城市| 铁岭县| 察雅县| 崇义县| 柳河县| 璧山县| 南城县| 曲周县| 辰溪县| 德清县| 阿克| 麦盖提县| 清新县| 东乌珠穆沁旗| 铜陵市|
