With a history dating back to 1950s, our factory is one of the earlist manufacturers of plastic injection molding machinery in China, covering a total area of 100,000 sq.m. with main workshop 12,000 sq.m. which is engaged in the installation of whole sries plastic injection molding machines. We mainly produce FT serial economic models, FTA serial with displacement pumps, FIB serial frequency conversion models, FJ serial extruding-injection models, ZJ serial models of injection machines with the clamping forces 40kN-40,000kN and shot volumes 100ml-88,000ml. We also produce PET, PVC, dual colors (bi-colors), CE standard injection machines, etc. Our injection machines have been well sold in China and exported to 40 countries and regions such as Japan, Korea, France, Saudi Arabia and Indonesia. Our factory is ISO9001, CE certificated, and our injection machines are superior in their qualities, we won the state silver medal, the only highest prize in China plastic machinery field. We are one of the strongest, largest and first-class level enterprises in China market of injection machinery.

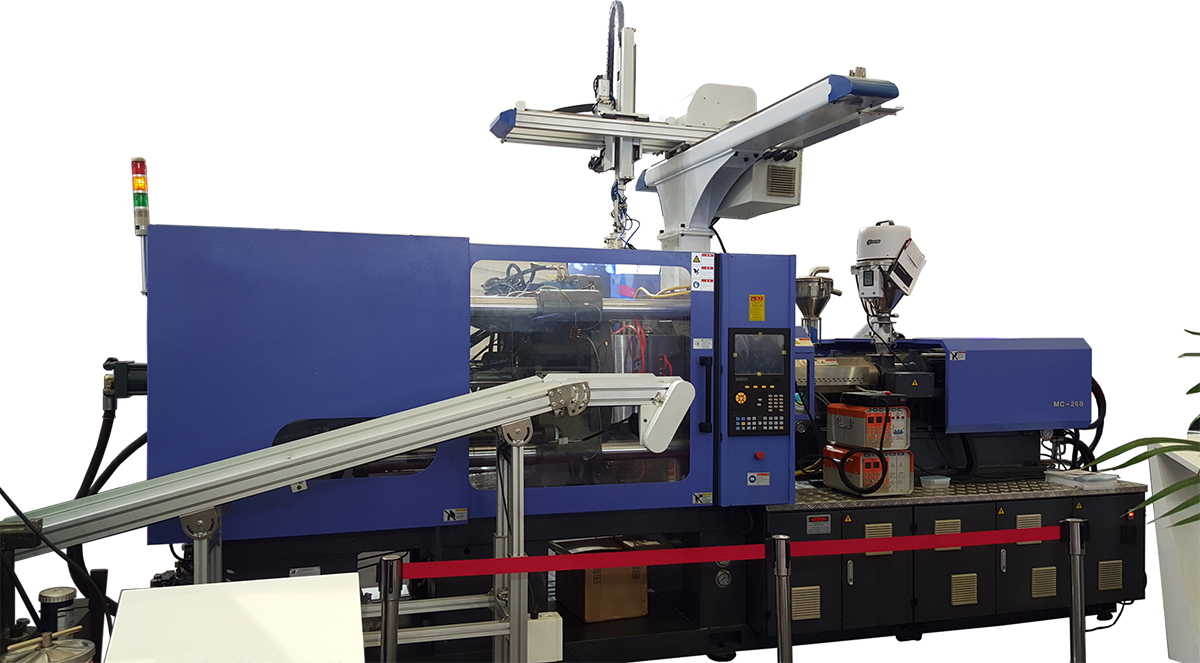

MC Series Servo Energy Saving Multi-Colour Injection Molding Machines

Energy Saving Features

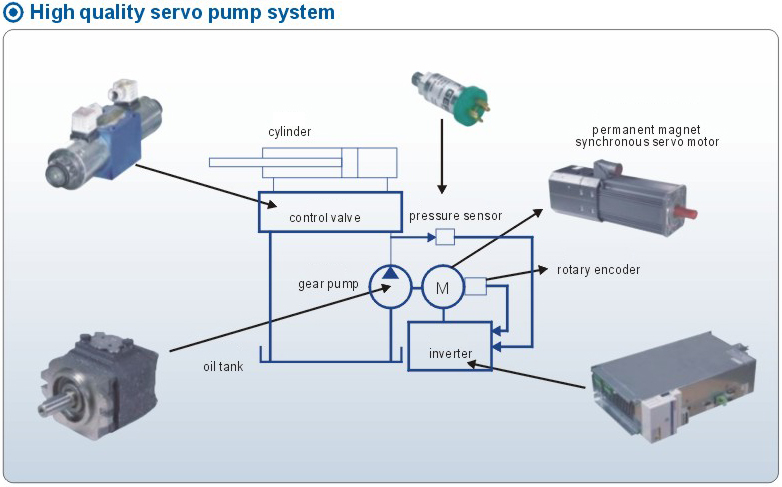

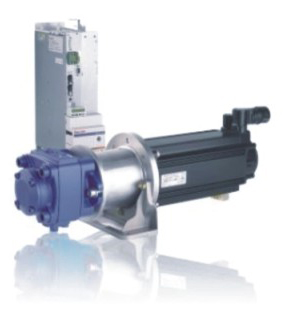

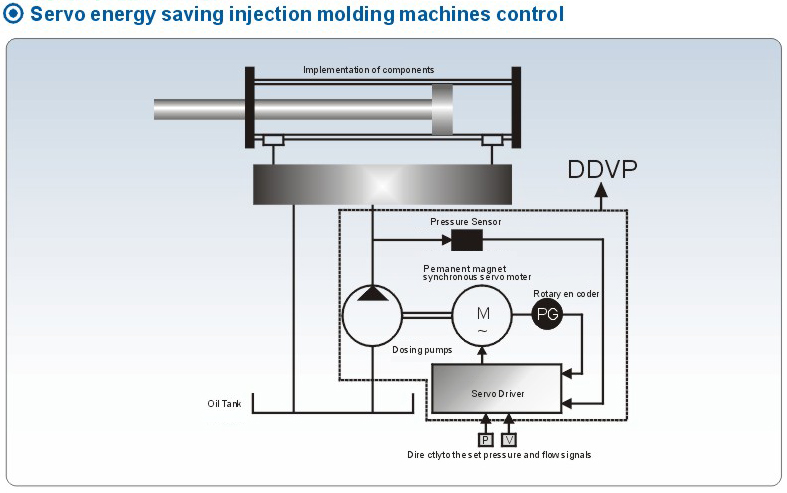

Application high performance servo motor and interal gear pumps to compose a close loop servo dynamical control system.

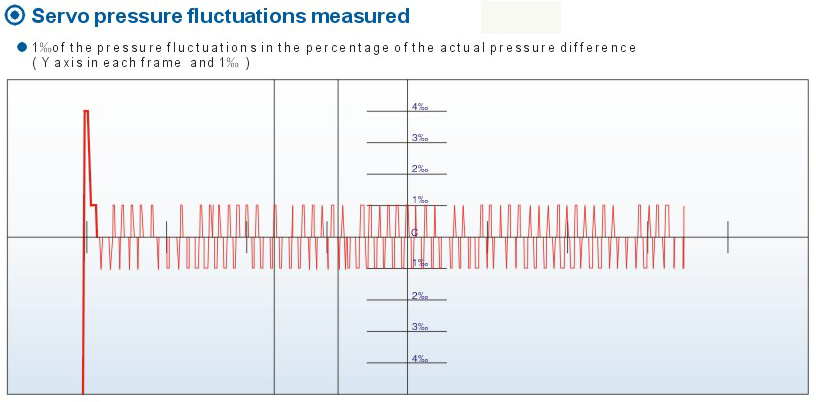

1. High precision control
2. Quick response
3. High sensitivity
4. Running in low noise
5. Energy economical & environmental protection
6. Energy saving can reach 40%-80%

MC Series Standard Features:

A. Control Unit:
1. 640*480 colour B&W LCD
2. Two different display languages (Chinese/English)
3. 12 sets molds datas memory
4. Real time clock
5. Input signal table
6. Output signal table
7. Four levels password for datas protection
8. Auto-tuning PID heating control with high and low alarms
9. Oil temperature display with high and low alarms
10. Thermocouple broken alarm
11. Heater burst out alarm
12. Text alarm display
13. Pre-heat and production temperature selection
14. Heating on daily schedule
15. Auto centralized lubrication system with low oil level alarm
16. Moulding cooling water regulating ball-valves
17. SPC chart for 10 selected parameters
18. SPC for last 100 records
19. Solid state relay for heater
20. Line graphics for selective parameters

B. Clamping Unit:
21. Linear transducer for mould position monitoring.
22. Low pressure mould protection program
23. Mould thickness adjustment limit devices
24. 3 separated mould closing speed and pressure

25. 3 separated mould opening speed and pressure
26. Individual ejector forward/backward speed and pressure
27. Ejector return and forward delay
28. Mechanical safety interlock
29. Electrical safety interlock
30. Low speed mould set up program
31. Air blowing program
32. Turning table at moving platen
33. Turning table / Turning core selectable
34. Two speeds for table rotation
35. Auto clamping force adjusting
36. One hydraulic core pulling device - Time or limiting switches control

C. Injection Unit:
37. Linear transducer for injection screw position monitoring
38. Hopper empty alarm
39. Anti-cool plasticizing and injection program
40. Nitrided barrel and screw
41. 5 injection speed for unit A
42. 5 inectionn speed for unit B
43. Time or position control holding changeover
44. Plasiticizing back pressure control and display
45. Nozzle head leveling device
46. Closed-loop injection speed control for unit A
47. Nozzle safety cover with injection interlock program
48. After metering suck back function

D. Others:
49. Single-phase 13A BS1363 socket

MC Series Optional Features:

A. Control Unit:
1. Printer Interface
2. Three phase voltage protection devices with lower and over-voltage alarm
3. Robot interface program
4. Cooling water flow regulator with thermometer
5. Hydraulic oil cooling regulating device
6. Return line filter
7. IC cartridge for extra mould data storage
8. Difference color indicator lights for working condition.

B. Clamping Unit
9. Unscrewing device with hydraulic motor
10. Hydraulic safety interlock

C. Injection Unit
11. Hydraulic pressure for holding changeover on unit A.
12. Accumulation injection
13. Spring head nozzle
14. Extended nozzle with heater band
15. Bi-metallic barrel and stellite screw
16. Air-fans on barrel for PVC material moulding
17. Stainless steel hopper
18. Stainless steel injection screw
19. Stainless steel PVC injection screw
20. Double-flight stainless steel injection screw
21. Stainless steel injection screw for elatomer
22. Hydraulic sht-off nozzle for unit A and unit B

D. Others
23. Extra three-phase 16A IEC-309 socket
24. Extra single-phase 13A Bs1363 socket
